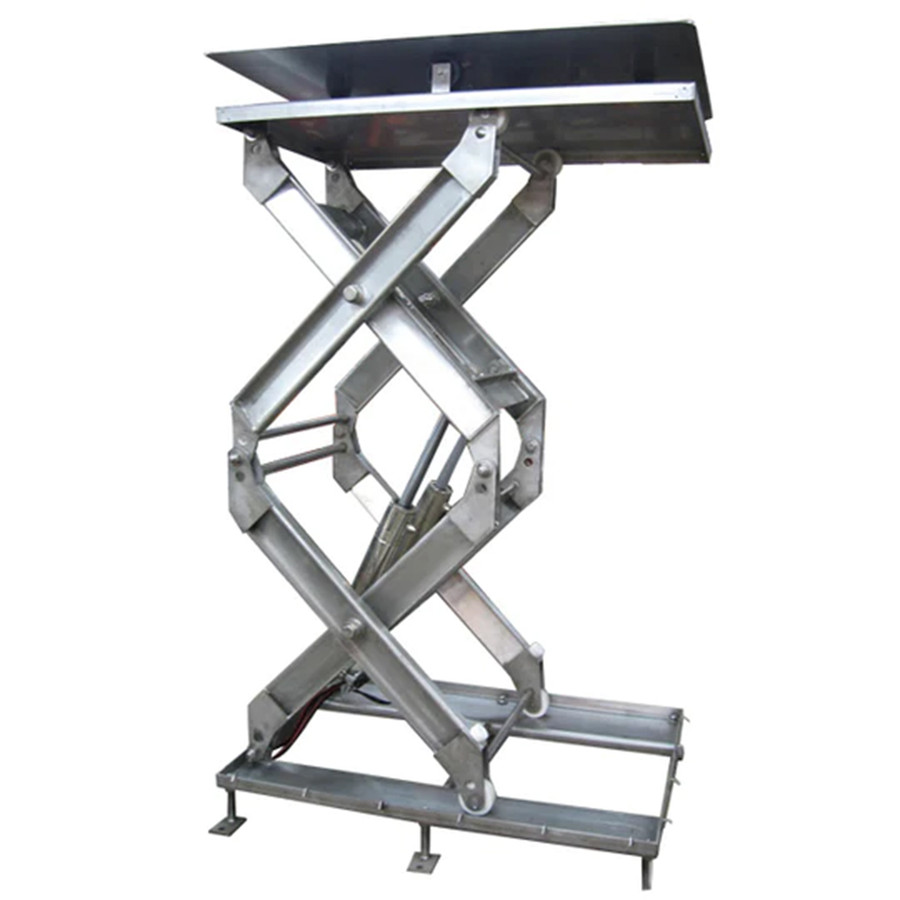

The SUPDSL-SS-60-40 Stainless Steel Double Lift Table from Superlift is a sanitary, stainless steel lift solution designed for demanding processing environments. Built to withstand clean-in-place washdowns and frequent sanitation, this unit supports precise material handling with a robust 4,000 lb capacity. Its dual-lift configuration helps optimize workflow by enabling controlled elevation and lowering of loads for transfer, staging, and ergonomic handling in facility settings where cleanliness and corrosion resistance are essential.
Construction features stainless steel components engineered for industrial washdown environments. The platform measures 48 by 30 inches, with a raised height of 70 inches and a lowered height of 10 inches, offering substantial vertical travel for versatile loading and unloading. The lift is supported by 100% grade 8 bolts, with Delrin rollers and Delrin bushings contributing to smooth, quiet operation under load. The design options include both tube and non-tube variants to accommodate different installation needs and space constraints while maintaining sanitary performance.
Typical applications include pharmaceutical, food processing, dairy, bakery, laboratories, and cosmetic facilities where hygiene, corrosion resistance, and easy surface cleaning are critical. When planning use, consider that the unit is rated at 4,000 pounds and requires a power source capable of delivering 1 HP motor performance, with an up-speed of 70 seconds from lowest to highest position. As with all stainless lift tables, regular maintenance should follow the manufacturer’s recommendations to ensure consistent operation and longevity in washdown environments.
Features:
- Uniform capacity: 4,000 lb
- Raised height: 70 inches; Lowered height: 10 inches
- Platform dimensions: 48 x 30 inches
- Stainless steel construction
- Delrin rollers and Delrin bushings for smooth movement
- 1 HP motor
- Uses 100% grade 8 bolts
- Material:
- Stainless Steel
- Uniform Capacity (lb.):
- 4,000
- Raised Height (in.):
- 70"
- Lowered Height (in.):
- 10"
- Platform Width/Length (in.):
- 48" x 30"
- Motor HP:
- 1
- Up Speed:
- 70 sec
- Package Size:
- Each
