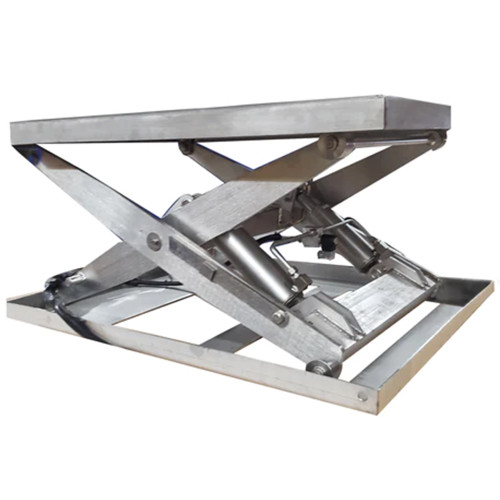

The SUPSL SS30-40 is a stainless steel wash-down lift table designed for heavy-duty material handling in sanitary or clean-room environments. With a 4,000 lb uniform capacity, this table provides a durable, corrosion-resistant platform suitable for food processing, pharmaceutical, and laboratory settings, where ease of cleaning and hygiene are essential. The unit features continuous welds and a sanitary design, along with stainless steel hydraulic cylinders, contributing to reliability in wet or wash-down conditions.
Constructed entirely from stainless steel, the lift table offers options for 304L or 316L material and finishes such as 2B, electro-polished, or a 35 RA surface. The design minimizes crevices and pin holes where bacteria can form, reducing downtime associated with cleaning and sanitation. The control system is powered by a NEMA 4 wash-down hand control and a wash-down powerpack, aligning with stringent cleanability and electrical protection requirements common in food, pharmaceutical, and related industries. The product can be customized, including cGMP configurations, and may be paired with optional accessories like Rotators or Tilters for enhanced operation.
In use, this lift table raises from a 8-inch lowered height to a 40-inch raised height, offering a 48 by 40-inch platform footprint to accommodate typical workpieces or containers. It is compatible with standard wash-down environments and is available in multiple stainless steel grades to match specific chemical resistance and cleaning regimes. Proper maintenance emphasizes keeping joint areas clean and ensuring hydraulic components remain sealed against wash-down exposure.
Features:
- 100% stainless steel construction
- No crevices or pin holes to harbor bacteria
- Stainless cylinders for wash-down environments
- NEMA4 wash-down hand controls with powerpack
- Finishes: 2B, electro polished, 35 RA
- Available in 304L and 316L stainless steel
- Clean room compliant and suitable for food/pharmaceutical use
- Material:
- Stainless Steel
- Uniform Capacity (lb.):
- 4,000
- Raised Height (in.):
- 40"
- Lowered Height (in.):
- 8"
- Platform Width/Length (in.):
- 48" x 40"
- Package Size:
- Each
