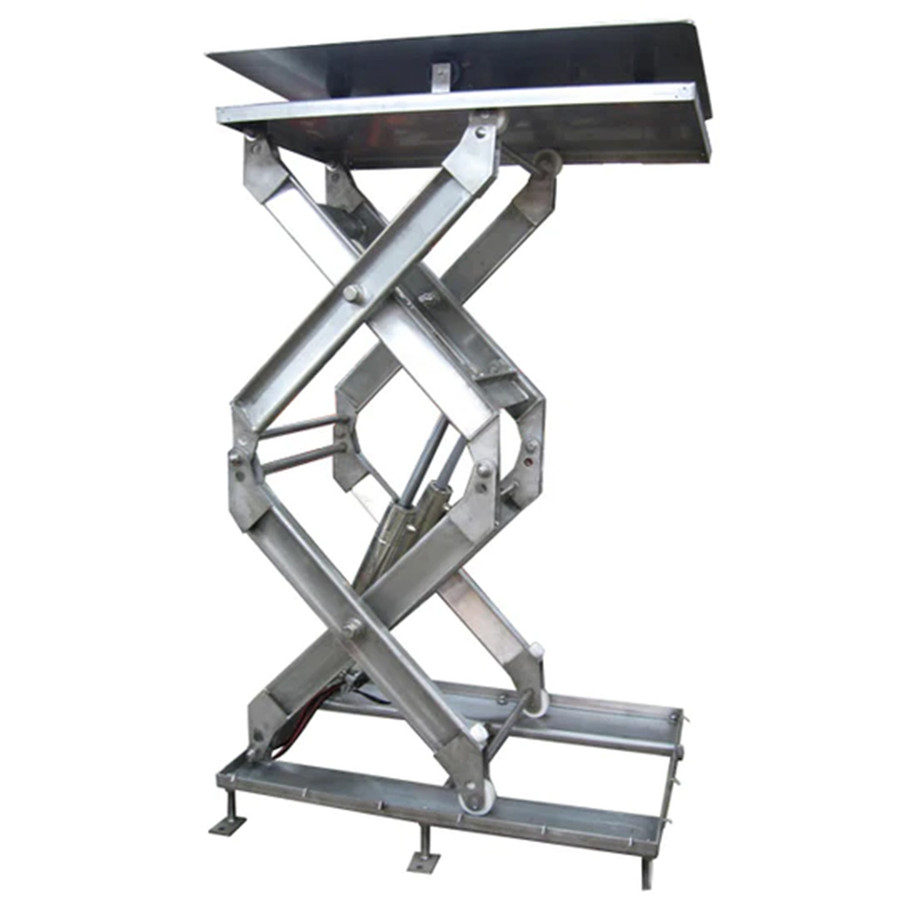

The SUPDSL-SS-72-20 is a stainless steel double lift table from Superlift designed for high-demand material handling tasks in sanitary environments. With a 2,000 lb uniform capacity and a platform measuring 60 inches by 30 inches, it provides a stable work surface that can be raised to accommodate varied workflow needs. The unit is built to support applications requiring regular washdowns and aseptic procedures, common in pharmaceutical, food processing, dairy, bakery, laboratory, and cosmetic facilities.
Construction highlights include stainless steel components chosen for durability and cleanability, along with Delrin rollers and Delrin bushings to promote smooth movement and reduce wear. The design specifies use of 100% grade 8 bolts, emphasizing robust assembly for repeated use. Raised height reaches 82 inches from a lowered height of 10 inches, enabling comfortable reach and ergonomic operation while minimizing floor space requirements in busy work zones.
Typical use scenarios include lifting load pallets or trays between processing stages, staging workpieces for assembly or packaging lines, and supporting clean-in-place or other sanitary routines where resistance to washdown is critical. The table’s dual-lift configuration supports efficient material handling in compact footprints. When planning maintenance or integration, consider the 1 HP-equivalent motor specification and a lift cycle compatible with your facility’s throughput, as these details influence performance and service intervals. This model is available in tube and non-tube variants to fit different installation preferences and space constraints.
Features:
- Capacity: 2,000 lb
- Platform: 60" x 30"
- Raised Height: 82"
- Lowered Height: 10"
- Motor: 1 HP
- Up Speed: 45 sec
- Delrin rollers and bushings
- Material:
- Stainless Steel
- Uniform Capacity (lb.):
- 2,000
- Raised Height (in.):
- 82"
- Lowered Height (in.):
- 10"
- Platform Width/Length (in.):
- 60" x 30"
- Motor HP:
- 1
- Up Speed:
- 45 sec
- Package Size:
- Each
