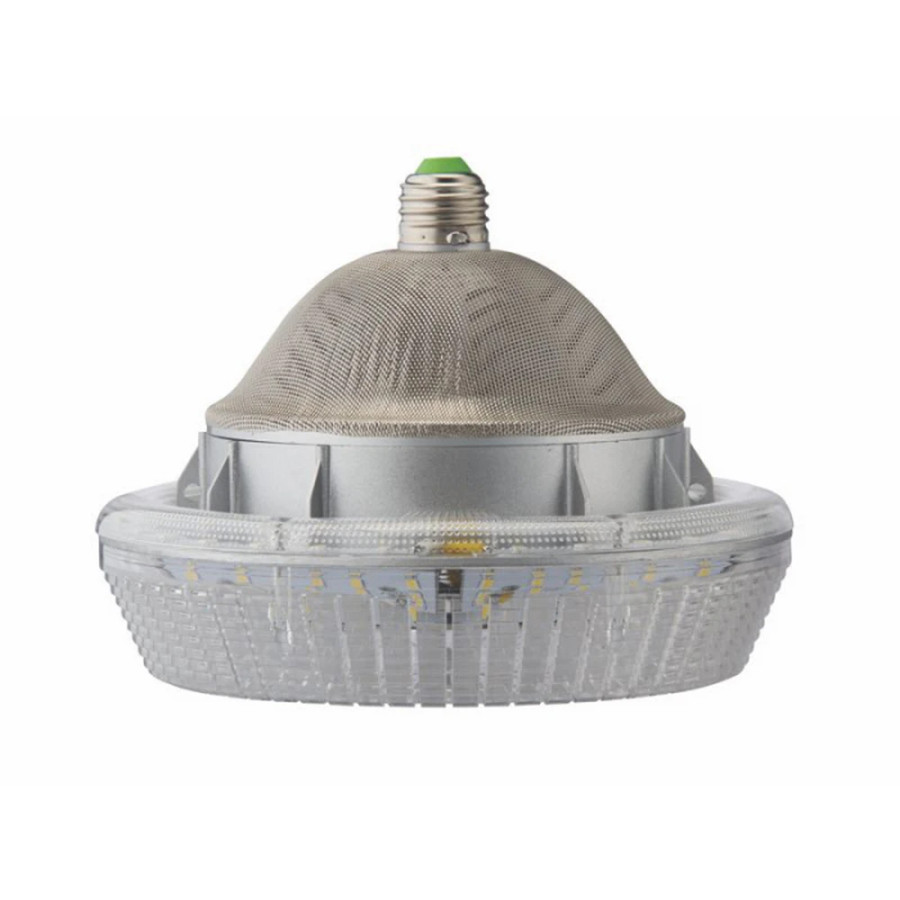

The Light Efficient Design LED-8035E40-A is a high-output LED retrofit lamp designed to upgrade existing Low Bay HID fixtures to modern LED technology. With a 60W input, it delivers approximately 6,684 lumens of cool white light at 4000K, offering a comparable bright output to a 175W HID source while benefiting from significantly reduced energy use and maintenance requirements. The lamp is engineered to fit E26 (Medium) bases and is suitable for use in industrial fixtures that require by-pass of the ballast, enabling direct connection to the supply. Its 360-degree beam angle provides broad coverage, and the lamp is rated for enclosed fixtures, supporting installations in demanding environments.
Key construction and feature details reflect its purpose for industrial lighting upgrades: a robust light engine specified for a long service life (50,000 hours) and compatible with 120–277V electrical systems, accommodating a range of supply voltages common in facility installations. The unit is described as suitable for damp locations, reinforcing its use in semi-exposed settings where humidity may be a factor. The compact form (approximately 7.8 inches in length and 6.1 inches in diameter) aligns with retrofit needs for existing luminaires, while the 111.4 lumens-per-watt efficiency underscores the energy savings potential of upgrading from legacy HID technology.
For facility managers weighing replacement options, this lamp offers a straightforward retrofit path: eliminate ballast dependence by wiring the lamp directly into the luminaire, maintain a 120–277V supply, and ensure the fixture enclosure permits enclosed-fixture operation. Always verify that the fixture is compatible with by-passed ballasts and that the installation complies with local electrical codes and safety standards. This model is sold as a single unit, with the manufacturer part number LED-8035E40-A, and is intended for use in applications where high-lumen, wide-area illumination is needed in industrial settings.
Features:
- Optimized for Low Bay HID fixtures with polycarbonate or glass globes
- Enclosed fixture rated
- UL classified for damp locations
- Ballast must be by-passed
- 6,684 lumens at 60W
- 4000K color temperature
- E26 Medium base
- 120-277V operating range
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8035E40-A
- UPC:
- 844006080075
- Lumens:
- 6,684 Lumens
- Lumens Per Watt:
- 111.4
- Wattage:
- 60 Watts
- Input Voltage:
- 120-277V
- Input Watts:
- 60 Watts
- Color Temperature:
- 4000K
- Lamp / Base Type:
- E26 Medium
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 360 Degrees
- Equivalent:
- 175W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- Enclosed Fixture Rated, Up + Down Light
- Length:
- 7.8
- Diameter:
- 6.1
- Package Size:
- Each
