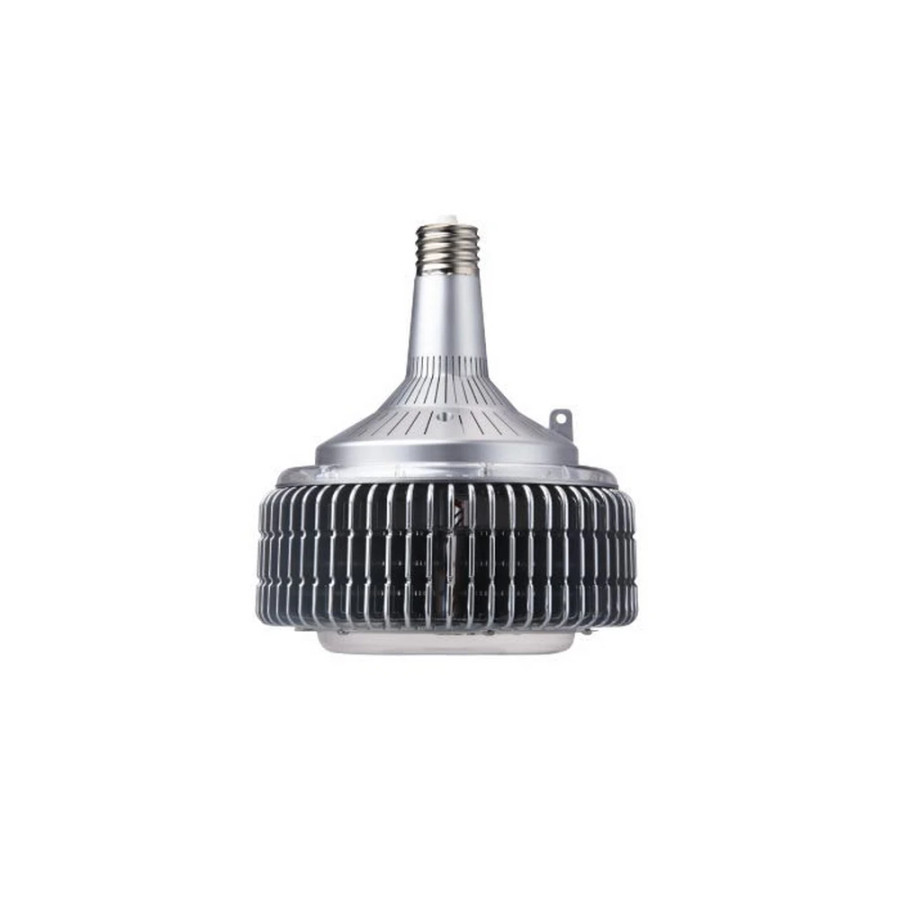

The LED-8136M40D is a high bay retrofit lamp from Light Efficient Design designed to replace traditional 150W HID fixtures with a 90W LED solution. It is built for open fixtures and damp locations, offering 12,400 lumens at 4000K to deliver bright, even illumination in industrial spaces that require reliable ceiling-mounted lighting. The design includes a Mogul EX39 base and is compatible with voltages in the 120–277V range, supporting ballast bypass (Type B) operation and 0–10V dimming for flexible control in appropriate applications. A fanless construction helps keep noise to a minimum, while dual-stage MOV protection and a rated 50,000 hours of service provide long-term performance expectations in challenging environments.
Features:
- 120-277V / Type B ballast bypass operation
- 0-10V dimmable
- Equivalent to 250W HID fixtures
- Mogul EX39 base
- Fanless design for silent operation
- Dual stage MOV protection with 10kA surge protection
- Damp location and open fixture rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8136M40D
- UPC:
- 844006080037
- Lumens:
- 12,400 Lumens
- Wattage:
- 90 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 4000K
- Lamp / Base Type:
- EX39 Mogul
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 250W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Diameter:
- 8.7
- Height:
- 9.3
- Package Size:
- Each
