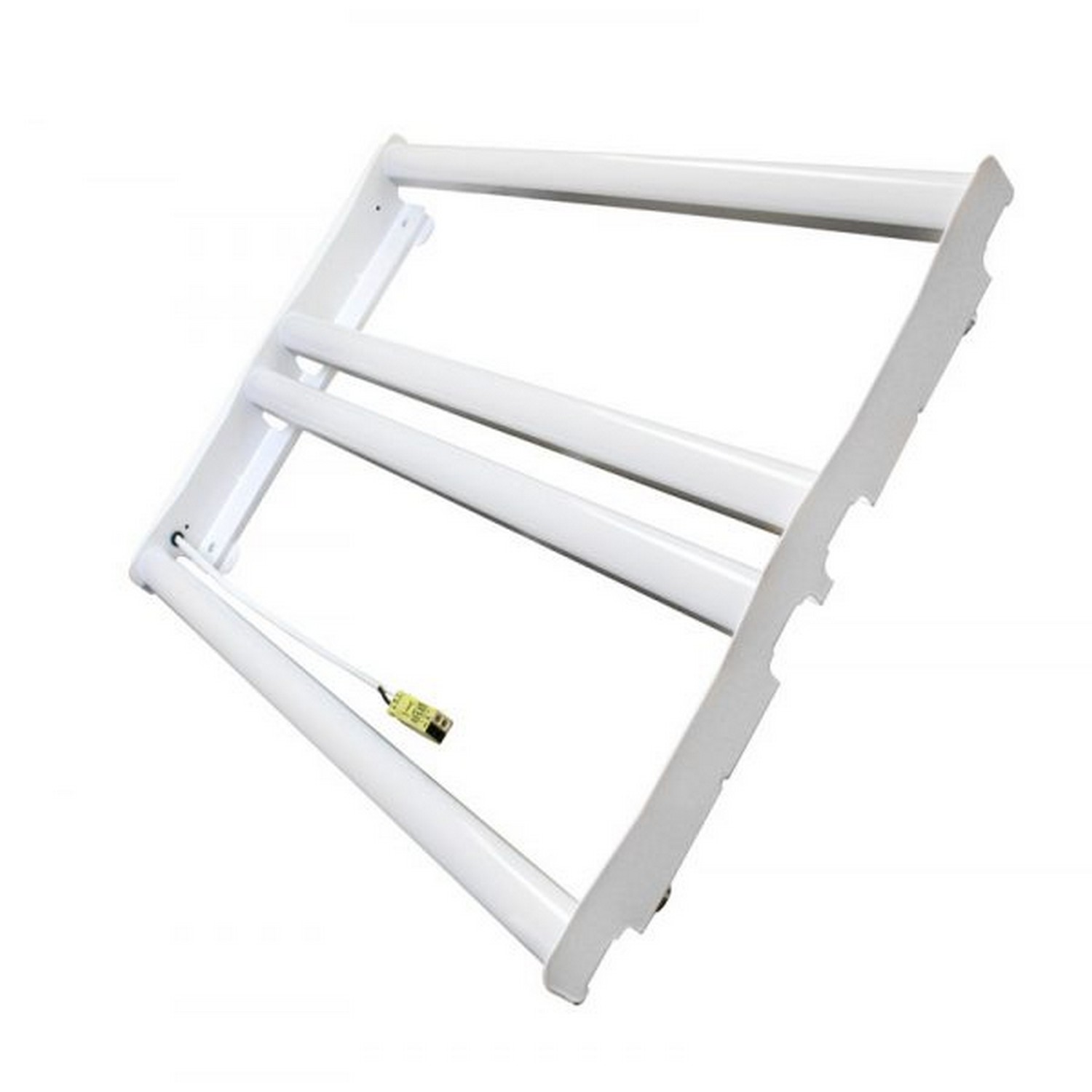

The Litetronics RF52UQT235 is a plug‑in LED retrofit kit designed to upgrade 2x2 lay‑in fixtures to a high‑efficiency, long‑life lighting solution. With a total of 52 watts and an output of approximately 7,000 lumens, this kit targets areas that require bright, consistent illumination while reducing energy use compared with traditional fluorescent systems. The 3500K color temperature offers a neutral warm‑white light that suits a variety of commercial settings.
Construction highlights include a 2x2 footprint and a modular, self‑attaching magnetic retrofit assembly that simplifies positioning and fixturing during installation. The kit operates from a universal 120–277 V input, which provides flexibility for spaces with varying supply voltages. It is designed for dry or damp environments consistent with typical interior applications and carries certifications such as RoHS and DLC, indicating compatibility with many design‑stage and energy‑efficiency programs used by building owners and contractors. The unit is non‑dimmable and promises a long service life, with a reported L70 life of 85,000 hours, contributing to lower maintenance needs over time.
Practical considerations include its compatibility with existing 2x2 fixture housings and the convenience of a complete installation package that includes the self‑attaching LED retrofit, input wiring with quick connect, mounting screws, labels, and a snap bushing. The product’s DLC listing supports qualification for certain utility incentive programs, while the wattage and lumen output translate to a notable reduction in energy consumption relative to a 96 W fluorescent equivalent. When planning an upgrade, verify that the fixture mounting and electrical box will accommodate the 2x2 form factor and that non‑dimmable operation aligns with your lighting control strategy.
Features:
- LED retrofit kit for 2x2 fixtures
- Watts: 52W; Lumens: 7000; Efficacy: ~134.6 lm/W
- Voltage: 120-277V; Color Temperature: 3500K; CRI: 83
- UL Listed; DLC Listed; RoHS compliant
- Life Rating: L70 85,000 hours; 7-year warranty
- Non-dimmable; Suitable for indoor use
- Applications: Hospitals, Schools, Offices, Retail
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 52
- Lumens:
- 7000 Lumens
- Lumens Per Watt:
- 134.615384615385
- Fluorescent Equal:
- 96 Watt
- Input Voltage:
- 120-277V
- Color Temp:
- 3500K
- CRI:
- 83
- Dimmable:
- No
- UL Listed:
- Yes
- ETL Listed:
- No
- DLC Listed:
- Yes
- DLC Premium Listed:
- No
- Wet Location:
- No
- Damp Location:
- No
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- RetroFit
- Shape:
- 2x2
- Motion Sensor Included:
- No
- Emergency Battery Included:
- No
- Operating Temperature Range:
- -5°F - 95°F
- Life Rating L70:
- 85,000 Hours
- Warranty:
- 7 Years
