Name: Litetronics VR29UQT240DLP 29W WHT LED VOL Retrofit Kit 2X2 PRE QC 120-277V 4000K 0-10V DIM 3625 Lumens
Brand: Litetronics
SKU: VR29UQT240DLP
Price: 51.84 USD
Availability: InStock

Litetronics VR29UQT240DLP 29W WHT LED VOL Retrofit Kit 2X2 PRE QC 120-277V 4000K 0-10V DIM 3625 Lumens

Litetronics

SKU:

VR29UQT240DLP

$51.84

/ Each

Weight:

8.18 LBS

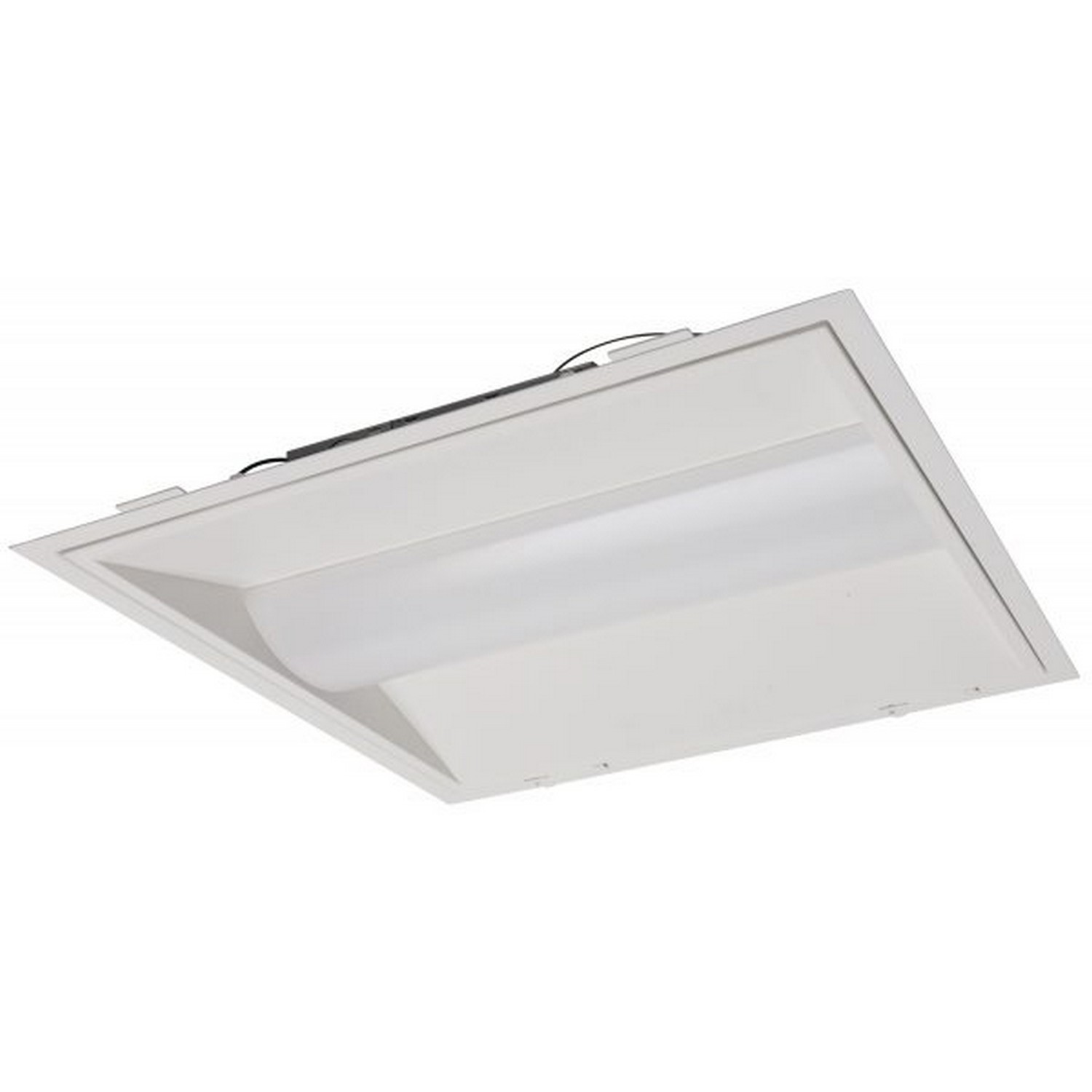

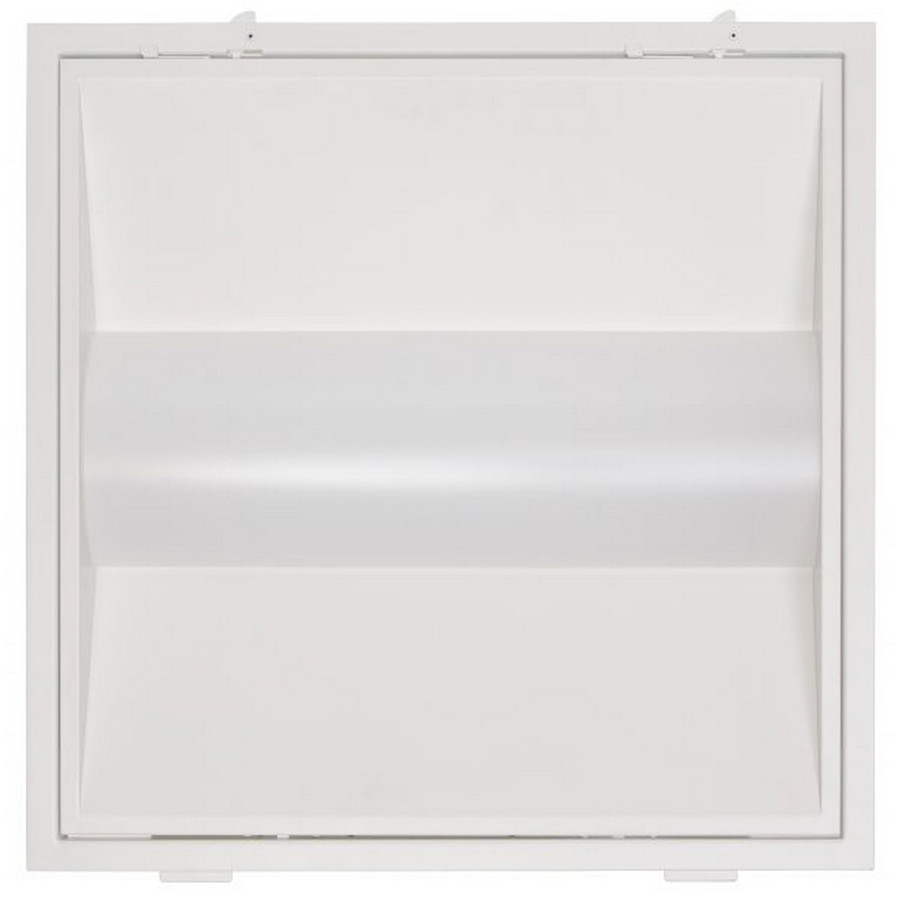

The Litetronics VR29UQT240DLP is a retrofit lighting kit designed to convert a 2x2 fluorescent fixture to a modern LED panel with a slim, single-piece frame and ultra-thin panel. Packaged as a drop-in retrofit solution, it’s intended for quick installation beneath existing ballasts and tube housings in many commercial spaces, delivering high-quality LED illumination with minimal disruption to ongoing operations.

Features:

2x2 LED retrofit kit for existing fixtures
29 W, 3625 lumens, 125 lm/W
Color temperature: 4000 K (neutral white)
Dimmable via 0-10V
Input voltage 120-277 V
DLC Listed and DLC Premium Listed
UL Listed, RoHS compliant

UL Listed products have been independently evaluated and certified to meet applicable safety standards established by UL Solutions. This certification indicates that the product has undergone testing for potential electrical, fire, and other safety hazards relevant to its intended use. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, UL Listing helps demonstrate compliance with recognized product safety requirements and includes ongoing certification oversight.

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Package Size:: Each
Package Includes:: 1/Each
Wattage:: 29
Lumens:: 3625 Lumens
Lumens Per Watt:: 125
Fluorescent Equal:: 64 Watt
Input Voltage:: 120-277V
Color Temp:: 4000K
CRI:: 83
Dimmable:: 0-10V Dimming
UL Listed:: Yes
ETL Listed:: No
DLC Listed:: Yes
DLC Premium Listed:: Yes
Wet Location:: No
Damp Location:: No
Hazardous Location:: No
Certifications:: RoHS
Color Finish:: White
Mounting Type:: RetroFit
Shape:: 2x2
Motion Sensor Included:: No
Emergency Battery Included:: No
Operating Temperature Range:: -4°F to 113°F
Life Rating L70:: 100,000 Hours
Warranty:: 10 Years

What are the key specifications of the VR29UQT240DLP 29W LED retrofit kit (2x2)?

It is a 29-watt, 2x2 LED retrofit kit with 3625 lumens, 125 lumens per watt, 4000K color temperature, and 83 CRI. It operates on 120-277V and supports 0-10V dimming.

What mounting and installation features are included with this retrofit kit?

The product is a one-piece frame and ultra-thin panel light designed for quick installation, with a safety lock to hold the assembly in place. It is a RetroFit 2x2, intended to install beneath existing ballast and tube lighting in many cases.

What certifications or listings does this product have?

The kit is UL Listed, DLC Listed, and DLC Premium Listed; it is RoHS compliant. It is not ETL Listed and is not listed for Wet Location, Damp Location, or Hazardous Locations per the provided data.

What environments or applications is this LED retrofit kit suitable for?

It is suitable for Hospitality, Healthcare Offices, Warehouse, Retail, and Schools as indicated in the product features.

Spec Sheet Instructions IES File

Litetronics VR29UQT240DLP 29W WHT LED VOL Retrofit Kit 2X2 PRE QC 120-277V 4000K 0-10V DIM 3625 Lumens

Features:

What are the key specifications of the VR29UQT240DLP 29W LED retrofit kit (2x2)?

What mounting and installation features are included with this retrofit kit?

What certifications or listings does this product have?

What environments or applications is this LED retrofit kit suitable for?

Litetronics RP29UQT240DLP 29W WHT LED Retrofit Kit PANEL 2X2 PRE QC 120-277V 4000K 0-10V DIM 3750 Lumens

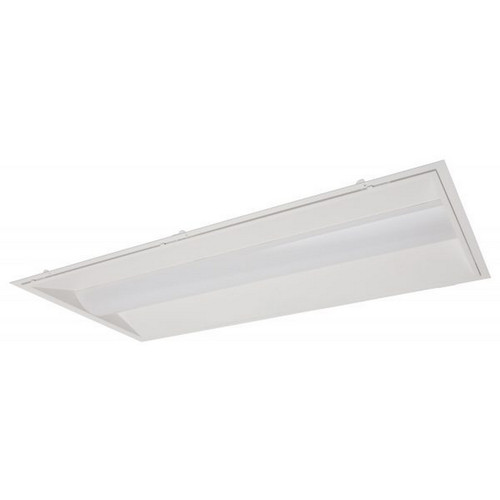

Litetronics VR39UQT440DLP 39W WHT LED VOL Retrofit Kit 2X4 PRE QC 120-277V 4000K 0-10V DIM 4875 Lumens
