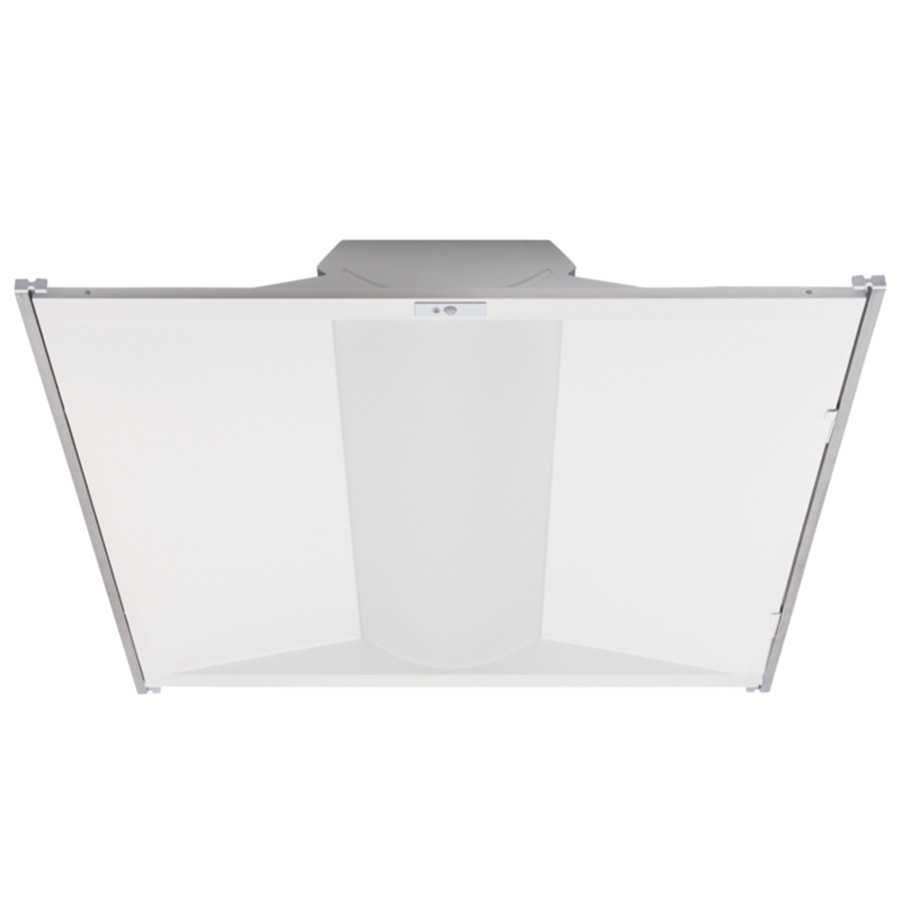

The LED Volumetric Retrofit brings a new level of control and convenience to interior grid ceiling applications. Equipped with an on-board sensor that supports both occupancy sensing and daylight harvesting, this retrofit kit is the ultimate energy reduction tool. And while this functionality comes standard out of the box, it can be fully customized with just a few taps to your mobile device. Our new mobile app, LiteSmart, enables fixtures in a space to be grouped together and function as one; they can be turned on/off, dimmed, or programmed based on your schedule. Settings can be adjusted and pushed live in seconds. Custom scene configurations can also be created to meet the various needs of the space.
This LED retrofit can accommodate all standard sizes of fluorescent troffers, including 2’ x 4’, 2’ x 2’ or 1’ x 4’, and it’s patented design makes installation simple and quick. The kit can be installed by one person in less than two minutes, without breaking into the ceiling plenum. Once installation is complete, all functionality can be set up via LiteSmart, then controlled through the app or our wireless remote switch.
The LED Smart Volumetric Retrofit delivers up to 125 lumens per watt (LPW) over the course of it’s 100,000-hour rated life. It ensures long-term energy savings over traditional fluorescent bulbs and ballasts, as well as eliminates routine maintenance, making it perfect for updating existing troffers. Furthermore, it’s backed by an industry-leading 10-year warranty, guaranteeing peace of mind for the life of your fixture.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- Wireless control via mobile app or bluetooth wall switch (optional)
- Daylight harvesting
- Occupancy sensing
- 100,000-hour rated life
- 10-year warranty
- DLC Premium (up to 125 LPW)
- Suitable for damp locations
- Continuous dimming
Applications:
- Hospitality
- Healthcare
- Offices
- Warehouse
- Retail
- Schools
Downloads:
Product Specifications:
| Package Size | Each |
|---|---|
| Package Includes | 1/Each |
| Wattage | 50 |
| Lumens | 6250 Lumens |
| Lumens Per Watt | 125 |
| Input Voltage | 120-277V |
| Color Temp | 5000K |
| CRI | 80 |
| Dimmable | Continuous Dimming |
| UL Listed | Yes |
| ETL Listed | Yes |
| DLC Listed | Yes |
| DLC Premium Listed | Yes |
| Wet Location | No |
| Damp Location | Yes |
| Hazardous Location | No |
| Certifications | RoHS |
| Color Finish | White |
| Mounting Type | T-Bar Retrofit |
| Shape | Troffer |
| Motion Sensor Included | No |
| Emergency Battery Included | No |
| Operating Temperature Range | -4°F to 113°F |
| Life Rating L70 | 100,000 Hours |
| Warranty | 10 Years |
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 50
- Lumens:
- 6250 Lumens
- Lumens Per Watt:
- 125
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- 80
- Dimmable:
- Continuous Dimming
- UL Listed:
- Yes
- ETL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- T-Bar Retrofit
