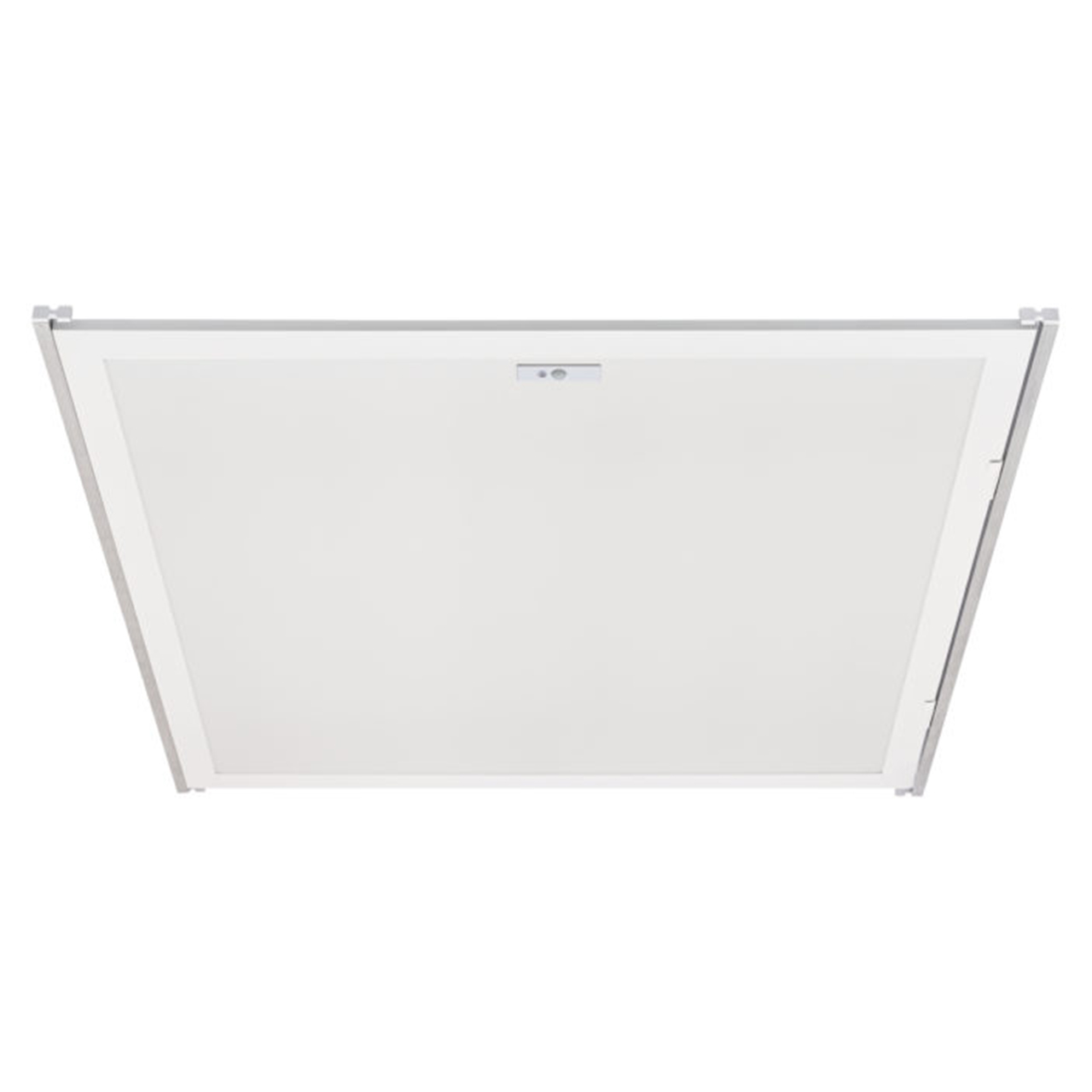

The Litetronics PRT435N is a 2x4 LED smart light panel retrofit designed for pressure-free upgrade of existing fluorescent troffers. It delivers up to 125 lumens per watt with a 100,000-hour rated life, providing substantial energy savings over traditional fluorescent systems while reducing maintenance intervals. The kit includes an on-board sensor that supports occupancy sensing and daylight harvesting, enabling automatic adjustment to room activity and ambient light. Control is enhanced by the LiteSmart mobile app, which allows grouping of fixtures, scheduling, dimming, and the creation of custom scenes, so spaces can be managed from a single device and updated quickly without ceiling access.
Construction and installation are tailored for ease in grid ceilings: the patent-pending design supports quick, one-person installation in under two minutes and does not require breaking into the ceiling plenum. The panel is a retrofit solution that accommodates standard 2’x4’, 2’x2’, or 1’x4’ fluorescent layouts, offering flexible deployment across diverse spaces. It is wired for 120–277V operation and provides a 50W maximum draw, with a color temperature of 3500K and an 80 CRI, suitable for a balanced, neutral white light in a variety of environments. The unit can be controlled via a wireless remote switch in addition to the LiteSmart app, providing multiple avenues for operation.
In terms of compliance and compatibility, the PRT435N is RoHS compliant and listed under UL, ETL, DLC, and DLC Premium certifications, supporting broad acceptance in commercial interiors. The package is listed as containing one unit per package, ready for installation in standard grid-ceiling applications, and designed for durable operation in indoor spaces without waterproofing. This product is commonly considered for hospitality, healthcare, office, retail, educational, and warehouse environments where energy savings and remote controllability are desirable.
Features:
- 2x4 LED panel with integrated programmable controls
- 50W max, 6250 lumens, 125 lm/W
- Color temperature: 3500K
- Input voltage: 120-277V; 0-10V dimming
- UL Listed, ETL Listed, DLC Listed, DLC Premium Listed
- RoHS compliant; damp location rated
- T-bar retrofit mounting
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 50
- Lumens:
- 6250 Lumens
- Lumens Per Watt:
- 125
- Input Voltage:
- 120-277V
- Color Temp:
- 3500K
- CRI:
- 80
- Dimmable:
- 0-10V Dimming
- UL Listed:
- Yes
- ETL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- No
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- White
- Mounting Type:
- T-Bar Retrofit
