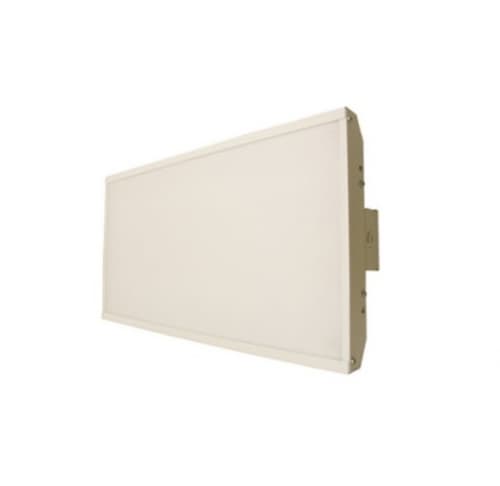

TCP HB9000150LS1 90W LED Linear High Bay w/ LS1 Sensor, 0-10V Dimming, 11700 lm, 120V-277V, 5000K

The TCP HB9000150LS1 is a high-bay LED luminaire designed for demanding industrial, retail, warehouse, and commercial installations. It delivers a bright 11700 lumens from a 90-watt LED engine, with a 5000K color temperature that provides a crisp, natural light appearance suitable for high-ceiling environments. An all-metal frame and a frosted lens help minimize glare and produce smooth, shadow-free illumination across wide areas. The luminaire is damp-location rated and supports 0-10V dimming, enabling gradual, flicker-free control to adapt to varying lighting needs while reducing energy use. The luminaire meets cUL/UL listings alongside DLC Premium recognition, underscoring compliance for many project specifications and rebate programs.

Constructed with a post-painted steel frame featuring rounded edge corners and no scalloping, the design prioritizes durability and straightforward installation. The HB9000150LS1 ships with hardware suited for elevated mounting, including two hangers, 5-foot chains, a hub mount kit for conduit or stem mounting, and a 6-foot pre-wired cord, facilitating flexible setup in tall-ceiling spaces. The unit’s integrated LS1 sensor variant adds occupancy-based functionality for automatic adjustment based on space activity, enhancing energy savings when occupancy is detected. With a wide beam spread produced by angled LEDs, the fixture aims to deliver clean cut-off and uniform illumination over broad areas.

Typical use cases include warehouses, distribution centers, manufacturing floors, and large retail environments where long service life, reliable performance, and dimming capability are valued. It is suitable for 120V–277V supply and carries a 5-year warranty, reflecting TCP’s commitment to longevity and consistent light output. When planning installations, note the fixture’s dimensions (approximately 23.8 in L × 12.6 in W × 3.8 in H) and its weight (about 14 lb) to ensure appropriate mounting clearance and hardware compatibility. Optional accessories, such as a battery backup or a separate motion sensor, may be available to extend functionality further.

Features:

• Standard frosted lens for glare control
• No shadows, smooth even lighting
• Damp location rated
• 0-10V smooth no flicker dimming
• Wide beam spread with clean cut off
• Optional battery backup or motion sensors
• Hardware included: hangers, chains, hub mount kit, pre-wired cord
• cUL/UL Listed, DLC Premium
