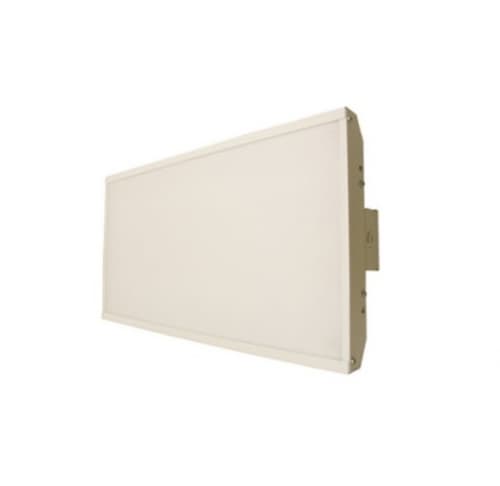

The TCP HB9000140MS1 is a 90W LED high bay lighting fixture designed for high-ceiling spaces such as warehouses, distribution centers, retail, and industrial environments. It delivers a bright, fixture-level light output with 11,700 lumens and a 4000K color temperature, providing a cool, clean light that supports good visibility in large indoor areas. The fixture is built with an all-metal frame and a post-painted steel housing that features rounded edges and no scalloping, contributing to durability in demanding settings. A frosted lens helps manage glare while delivering smooth, shadow-free illumination, and the unit is damp-location rated to withstand typical indoor moisture conditions.
Key built-in features include a MS1 microwave motion sensor for occupancy-based lighting control and 0-10V dimming for smooth flicker-free adjustment. The design promotes wide beam spread through an angled LED configuration, which helps achieve clean cut-off and broad coverage from a single luminaire. The product ships with hardware for quick installation, including two hanging hangers, a 5-ft cord, a hub mount kit compatible with .75-in conduit or stem mounts, and a 6-ft pre-wired cord. The HB series is listed to cUL/UL standards and DLC Premium, supporting reliability and efficiency claims for project specifications.
Practical considerations include a durable, long-life LED solution that is ready for commercial and industrial use in spaces with high ceilings. It is compatible with 120-277V supply and offers dimming via 0-10V, enabling integration into existing building automation or lighting control systems. The unit weighs 14 lb and carries a 5-year warranty, with a color rendering index of 82 and an efficacy of 130 lm/W. With a 50,000-hour rated life, this TCP high bay aims to reduce maintenance intervals while providing consistent, uniform illumination across the work area.
Features:
- Microwave motion sensor for automated lighting control
- 0-10V dimming for smooth, flicker-free operation
- Angled LED design delivers wide beam spread with clean cut off
- Includes hardware: 2 hangers, 5-ft chains, hub mount kit, 6-ft cord
- Damp location rated; cUL/UL Listed and DLC Premium
- 4000K color temperature; 11700 lm; 90W; 130 lm/W
- Part Number:
- HB9000140MS1
- Bulb Included:
- Yes
- Certificate:
- cUL/UL Listed, DLC Premium
- Color Temperature:
- 4000K
- CRI:
- 82
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- LED
- Life Hours:
- 50000
- Lumens:
- 11700 lm
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 90W
- Weight:
- 14.00 lb
- UPC:
- 762148286370
- Package Size:
- Each
