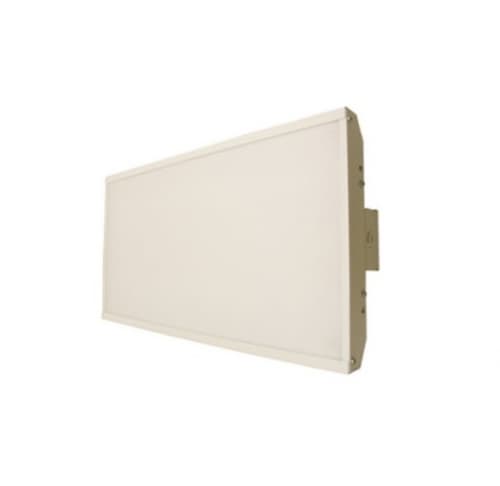

The TCP HB9000150 is a high bay LED fixture designed for demanding ceiling applications in commercial, industrial, retail, and warehouse spaces. Delivering 11700 lumens from a 90W LED array, it provides bright, even illumination with a wide beam spread that minimizes shadows and delivers smooth, glare-controlled light thanks to a standard frosted lens. The fixture is engineered with a post-painted steel frame featuring rounded edge corners and pop riveted construction, contributing to durability in high-ceiling environments where reliability matters.
Key build features include 0-10V dimming for flicker-free, smooth adjustment, damp location rating suitable for certain indoor settings, and a robust all-metal housing. The HB9000150 is listed to cUL/UL and DLC Premium standards, which helps with project compliance and potential energy rebate eligibility. Its design incorporates practical installation options with included hardware such as two hangers, five-foot chains, a hub mount kit compatible with 0.75-inch conduit or stem mounting, and a six-foot pre-wired cord to simplify mounting and wiring.
This LED high bay is specified for use in locations with 120-277V supply and offers an efficacy of 130 lm/W with a color temperature of 5000K for a crisp, natural daylight appearance. With a documented life of 50,000 hours, it aims to reduce maintenance downtime in facilities with high ceilings. When planning installations, verify that the mounting and electrical wiring arrangements accommodate the 23.8-inch length, 12.6-inch width, and 3.8-inch height of the unit, and consider battery backup or motion sensor options if your application requires them.
Features:
- 11700 lm output at 5000K (CR I 82)
- 0-10V dimming for smooth flicker-free control
- Universal voltage 120V-277V
- Damp location rated with glare-controlled frosted lens
- Wide beam with angled LED design for clean cut off
- Hardware included: 2 tong hangers, 5-ft chains, conduit/stem mount kit, 6-ft pre-wired cord
- cUL/UL Listed and DLC Premium
- Part Number:
- HB9000150
- Bulb Included:
- Yes
- Certificate:
- cUL/UL Listed, DLC Premium
- Color Temperature:
- 5000K
- CRI:
- 82
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- LED
- Life Hours:
- 50000
- Lumens:
- 11700 lm
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 90W
- Weight:
- 14.00 lb
- UPC:
- 762148286332
- Package Size:
- Each
