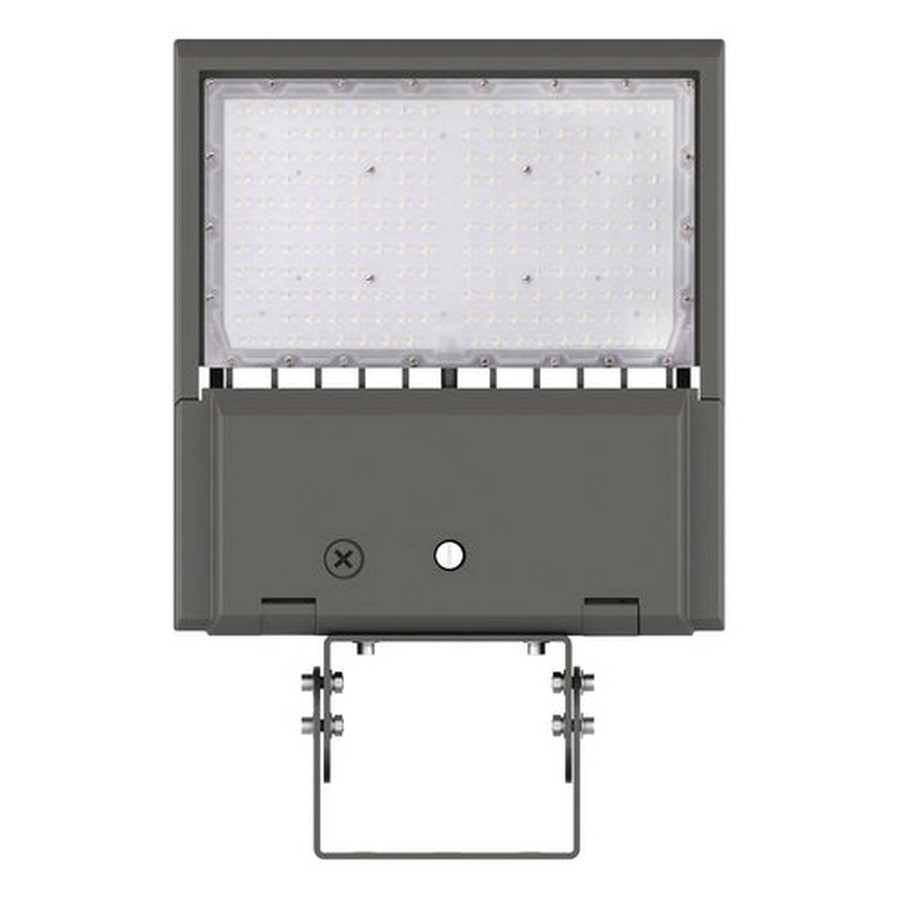

The Beyond LED 153505-1 is a high-output LED area light designed to illuminate outdoor and semi-enclosed spaces such as parking areas, loading docks, and general area lighting. This 300W luminaire delivers up to 51,000 lumens with a color temperature of 5000K and a color rendering index of 70, making it suitable for tasks that require bright, daylight-like illumination. The housing is die-cast aluminum with a grey finish, and the optical lens is heat-resistant polycarbonate to help maintain performance in challenging environments. A built-in 10 kV surge protector provides some protection against electrical transients, while the fixture’s IP65 rating indicates resistance to dust and water exposure typical of outdoor settings. Power is supplied through a universal input range of 100–277Vac, with an optional 480Vac version available to support different electrical infrastructures, and it supports 0–10V dimming for compatible control schemes.
Key construction details include high-efficacy Bridgelux 3030 LEDs and a slim, ultra-thin design that can streamline installation in constrained spaces. The fixture is designed with multiple mounting bracket options to accommodate various mounting orientations and configurations, and it relies on a non-isolated driver. The light is UL and DLC approved, signaling compliance with quality and performance standards commonly required for lighting projects and rebates. The product is offered with a 5-year warranty, reflecting expected longevity under normal operating conditions.
This luminaire is packaged as a single unit and is intended for professional installation where robust, long-life lighting is needed in outdoor or semi-exposed environments. When planning use, consider the 5000K color temperature for general task lighting and the 70 Ra CRI for basic color rendering; verify driver compatibility and dimming control strategy if integrating with a building management system or occupancy controls.
Features:
- High Efficacy Bridgelux 3030 Chips
- Ultra-thin sleek design
- Up to 180 lm/W efficacy
- Universal 100-277Vac / 480Vac optional
- 0-10V dimming standard
- Built-in 10KV surge protector
- Die-Cast Aluminum housing, grey
- Wattage:
- 300W
- Lumen:
- Up to 51000LM
- Lumen Efficacy:
- Up to 180LM/W
- Color Temperature:
- 5000K
- CRI (Ra):
- 70
- IP Rating:
- IP65
- Housing:
- Aluminium
- Input Voltage:
- 120-277Vac
- Dimming:
- 0-10V dimming standard
- PF:
- ?0.9
- Driver:
- Non-Isolated
- Housing Color:
- Grey
- Warranty:
- 5 years
- Package Size:
- Each
