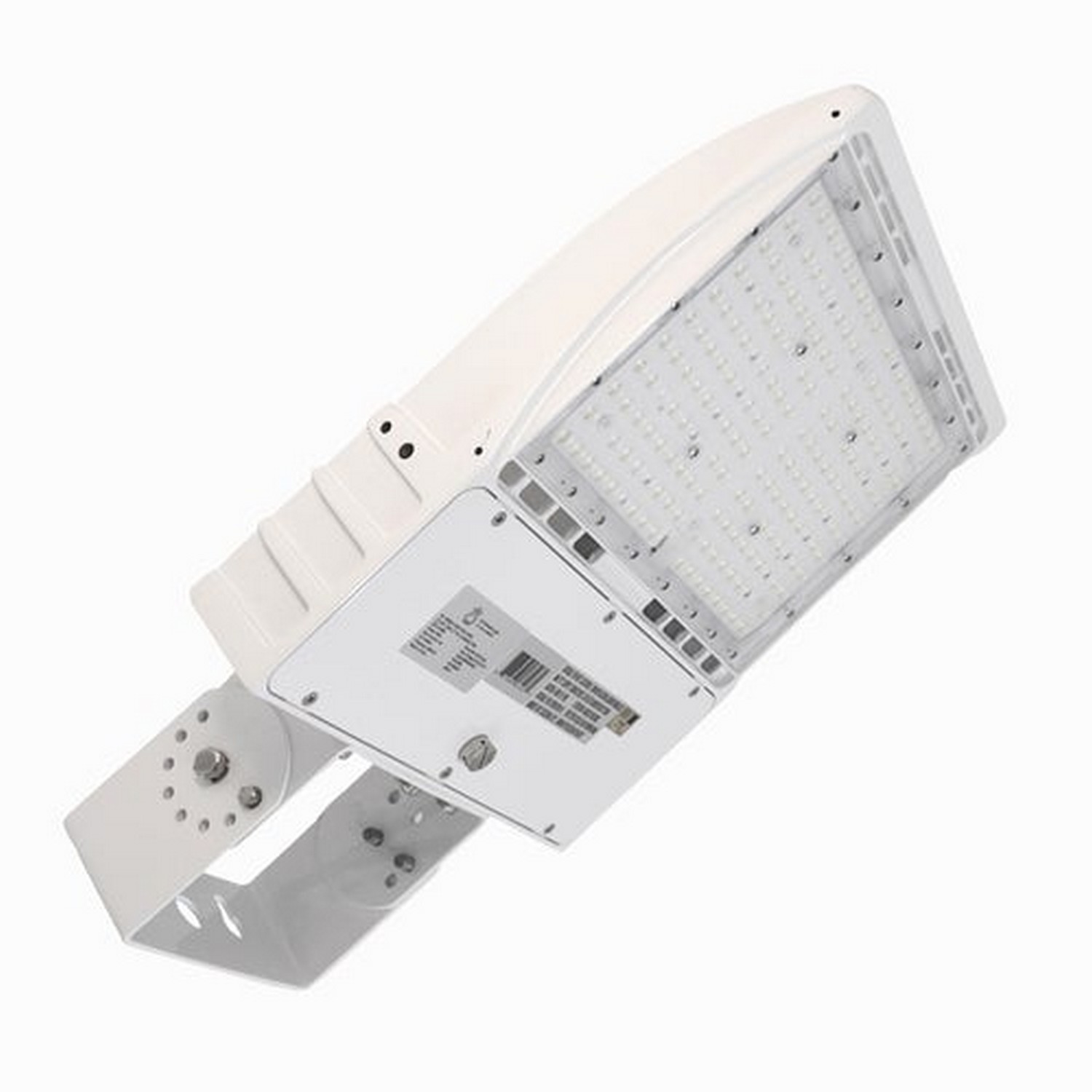

The Beyond LED Technology 153502-2 LED Area Light is a high-output white LED fixture designed for outdoor general illumination applications such as parking areas and loading docks. It combines a compact, ultra-thin die-cast aluminum housing with a heat-resistant polycarbonate optical lens to deliver robust performance in challenging environments. The unit is designed for versatile mounting with multiple bracket options and is available in white housing. It operates at universal input voltage (100–277 VAC) with a power rating of 150 W and provides up to 19,800 lumens at a color temperature of 5000 K, offering a high luminous efficacy that helps maximize energy savings and potential rebates. The design emphasizes reliability, featuring a built-in surge protection (10 kV) and a high duty LED platform (SMD3030) to support long service life, backed by a 5-year warranty. The fixture is IP65 rated, contributing to resistance against dust and water ingress in outdoor environments, and it carries DLC listing, which can be a factor in utility rebate programs and eligibility for certain specifications.
This area light is intended for environments requiring strong ambient lighting with wide-area coverage. With its universal voltage range, it can be wired into existing lighting circuits without needing transformers for most installations. The combination of a compact form factor and durable materials makes it suitable for mounting on walls, poles, or mounting brackets where a low-profile silhouette is advantageous. When selecting this fixture, verify your voltage supply within 120–277 V, confirm mounting clearances for the chosen bracket option, and consider the operating environment to maintain the IP65 protection and lumen performance over time.
Features:
- High Efficacy Lumileds, up to 132 lm/W
- Ultra-thin, sleek design
- Built-In 10 kV surge protection
- Universal 100-277 VAC operation
- DLC Listed
- Die-cast aluminum housing in white
- Optional screw-in photocell
- Input Power:
- 150W
- Color Temperature:
- 5000K
- Lumen:
- Up to 19800LM
- Lumen Efficacy:
- Up to 132LM/W
- CRI (Ra):
- 70
- Housing Color:
- White
- IP Rating:
- IP65
- Input Voltage and Frequency:
- 120-277V 50/60Hz
- PF:
- ?0.9
- LED Type:
- SMD3030
- Housing:
- Die-cast aluminum
- Warranty:
- 5 Years
- Package Size:
- Each
