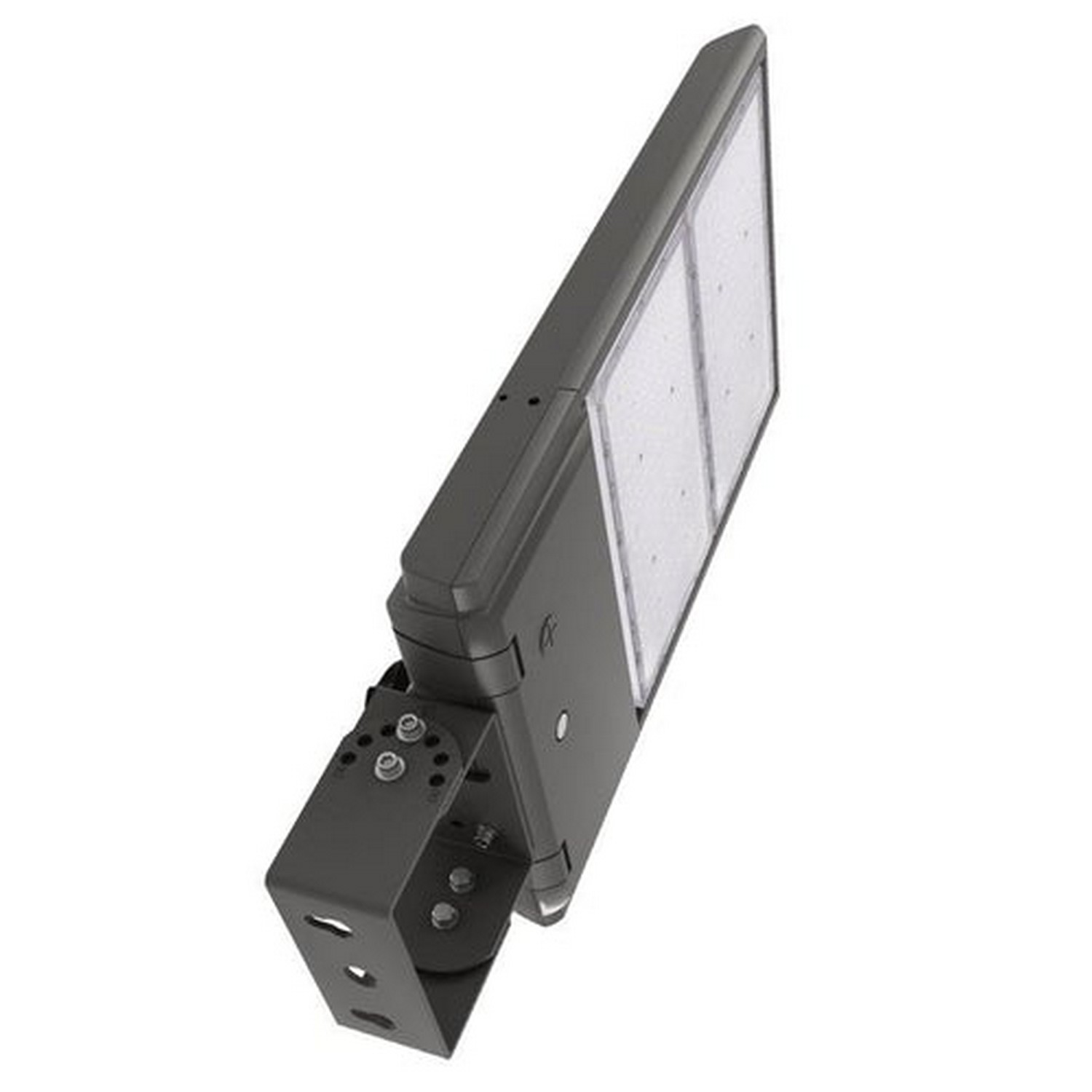

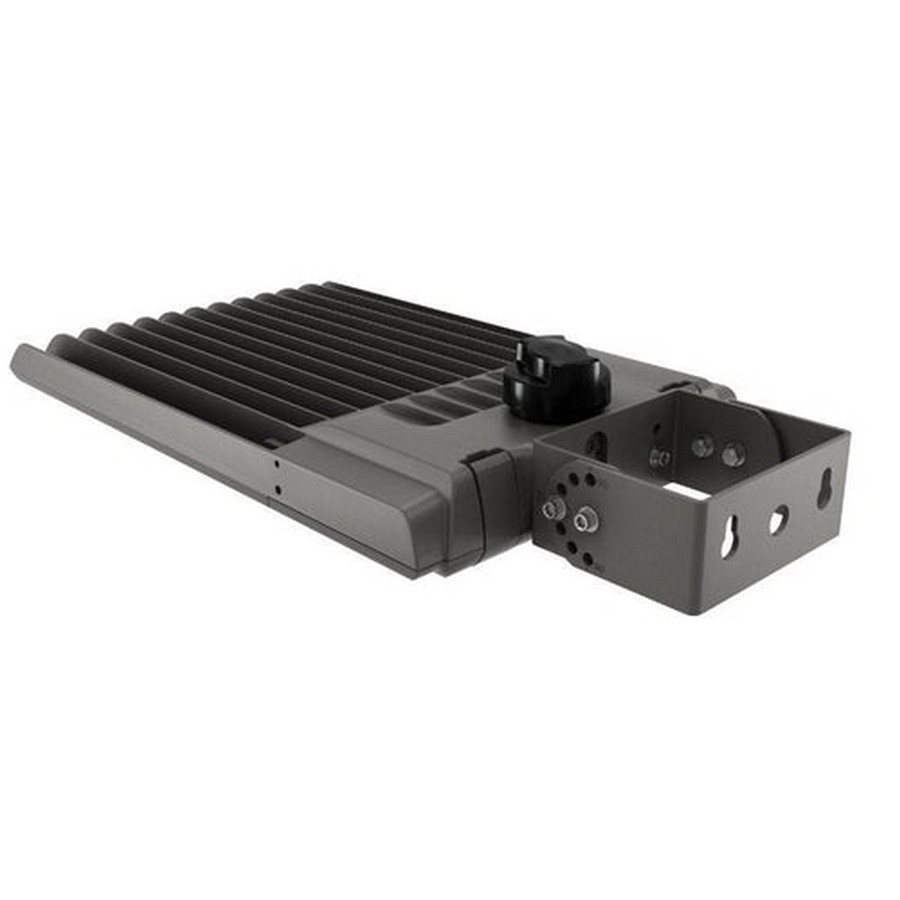

The Beyond LED Technology 153507-1 LED Area Light is a high-output, utility-focused lighting solution designed for demanding outdoor and general area applications. Built around a die-cast aluminum housing with a grey finish, this 300-watt luminaire delivers up to 51,000 lumens at a 5000K color temperature, making it suitable for parking lots, loading docks, and similar spaces that require bright, even illumination. The design emphasizes thermal management, with a heat-resistant polycarbonate optical lens and a heat sink configuration intended to keep operating temperatures in check and extend life, even in exposure to the elements.
The fixture features high-efficacy Bridgelux 3030 LED chips for efficient light output and a rated color rendering index of 70. It operates on a universal input range of 100–277 VAC, with an optional 480 VAC version, and includes 0–10V dimming to support adjustable lighting levels. A built-in 10 kV surge protector adds a degree of electrical protection, and multiple bracket options facilitate mounting in a variety of setups. The unit is IP65-rated, indicating resistance to dust and water ingress, which aligns with its intended exterior use. The 153507-1 is designed for easy field integration and is backed by a 5-year warranty, which provides reassurance for long-term investment in facility lighting needs.
When planning installation, consider the lumen output and color temperature to ensure adequate illumination for the area and compatibility with existing drivers or controls. The product’s aluminum housing and durable lens are chosen to withstand outdoor conditions, while the dimming capability allows integration with lighting controls for energy management. Packaging is listed as per-unit, and the unit is designed for wall or pole-mounting configurations consistent with its yoke-mount design.
Features:
- High Efficacy Bridgelux 3030 Chips
- Up to 170 lumens per watt
- Up to 51000 lumens at 300W
- Universal 100-277VAC / 480VAC optional
- 0-10V dimming standard
- Built-in 10KV surge protector
- Die-Cast aluminum housing with heat-resistant polycarbonate lens
- Wattage:
- 300W
- Lumen:
- Up to 51000LM
- Lumen Efficacy:
- Up to 180LM/W
- Color Temperature:
- 5000K
- CRI (Ra):
- 70
- IP Rating:
- IP65
- Housing:
- Aluminium
- Input Voltage:
- 120-277Vac
- Dimming:
- 0-10V dimming standard
- PF:
- ?0.9
- Driver:
- Non-Isolated
- Housing Color:
- Grey
- Warranty:
- 5 years
- Package Size:
- Each
