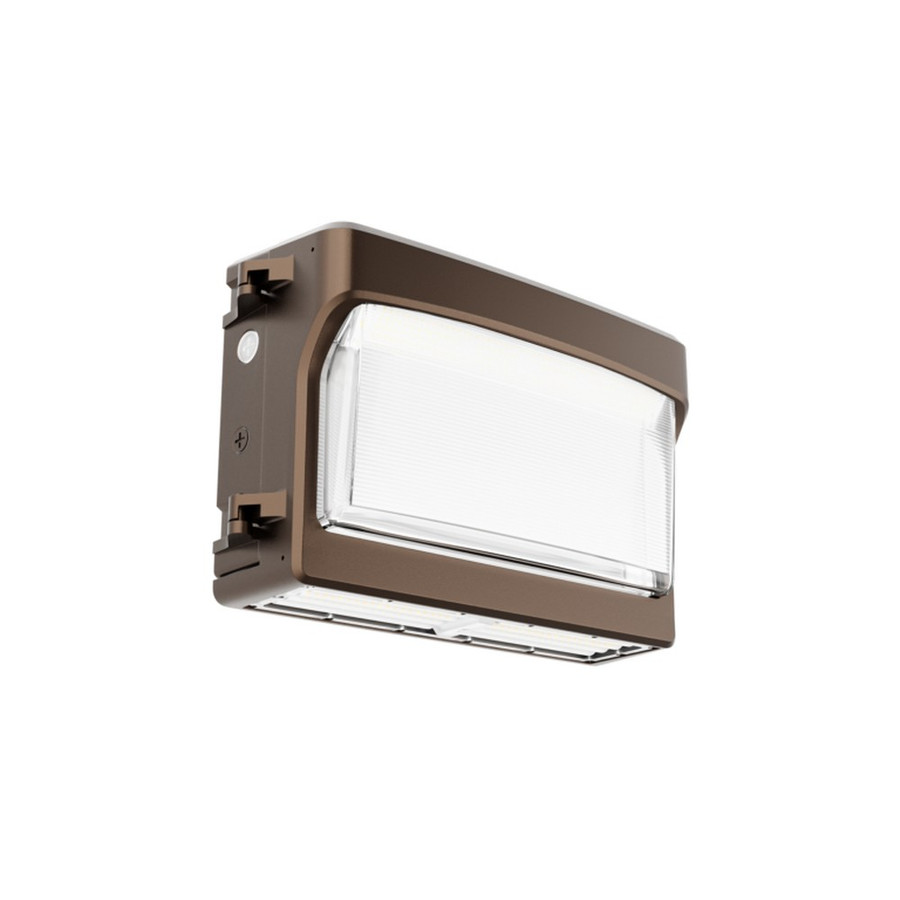

The Litetronics WPC060 is a 60-watt, 120–277 V wall pack designed for efficient area illumination in exterior environments. This 2-in-1 fixture can be configured as either a traditional wall-pack or a full cut-off design, offering flexibility to meet different lighting layouts and regulatory requirements. With selectable wattage and color temperature options (3000 K, 4000 K, and 5000 K), the unit supports tailored lighting performance to match application needs, while a field-selectable wattage/CCT reduces the need for multiple SKUs during procurement. The unit is designed for outdoor use where moisture is a consideration, boasting a damp location suitability and a robust matte powder coat finish for weather resistance. A typical lumen output range is included to fit varying illumination levels, and the fixture maintains a high color rendering index for better visual clarity in exterior settings. The WPC060 includes a photocell and pluggable sensor socket, enabling automatic dusk-to-dawn operation and easy integration with motion or presence sensing, which can contribute to energy savings in perimeter, parking, or loading areas. The fixture supports sensor options such as PIR and microwave sensors and is compatible with LiteSmart controls for group-level management via the LiteSmart mobile app, aiding code compliance and centralized control for multi-fixture installations. With a 93-degree beam angle and a performance-oriented efficacy, the wall pack is suitable for mounting constraints commonly found along building facades and pedestrian corridors. Maintenance considerations include straightforward mounting and electrical connections thanks to its swing-open design, and standard packaging noted as “Each.”
Features:
- Compatibility with LiteSmart mobile app
- Field selectable wattages and CCT (3000K, 4000K, 5000K)
- Photocell and pluggable sensor socket
- Bug Rating B2-U3-G2
- LED 2-In-1 Traditional or Full Cut Off design
- High efficacy ~135 lm/W; 5-year warranty
- Brand:
- LED 2-In-1 Traditional or Full Cut Off Wall Pack
- Watts:
- 60
- Voltage:
- 120-277V
- Average Rated Life:
- 50,000 hrs.
- Luminaire Lumens:
- 4,050 | 5,400 | 8,100
- CRI:
- 80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 113°F (-40 Degrees C to 45 Degrees C)
- Power Factor:
- ?.95
- Warranty:
- 5 years
- Beam Angle:
- 93°
- THD:
- ? 20%
- Lumens/Watt:
- 135
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
