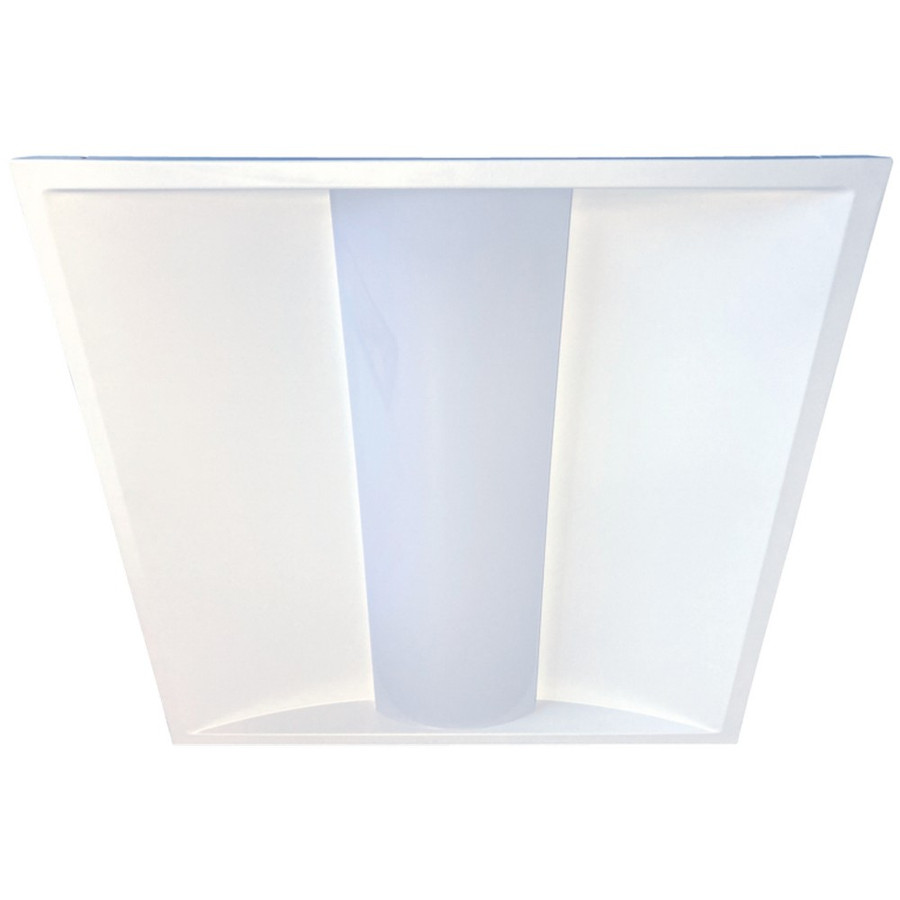

The VLCT2 is a 2' x 2' LED volumetric troffer designed for modern interior lighting needs. Built to fit standard 2' x 2' grid ceilings, it also offers flexible installation options including drywall recessed, surface mount, or suspension mounting, making it suitable for a variety of ceiling configurations. The fixture delivers up to 3 selectable lumen levels and three color temperatures (3500K, 4000K, 5000K), allowing customization of brightness and tone to match different space requirements. With a rated life of up to 50,000 hours and a luminous output that scales across multiple wattage settings, this troffer provides long-term energy savings when compared to traditional fluorescent systems, while reducing maintenance needs over time. The design is finished in a durable white powder coat, and the unit operates across a broad voltage range (120–277V), supporting diverse electrical environments. The LED Volumetric Troffer C-Series is engineered to achieve about 125 lumens per watt, contributing to efficient illumination with a high-quality beam angle (approximately 110 degrees) that helps minimize dark spots and create an even light distribution in ceiling-recessed spaces. A standard 5-year warranty accompanies the fixture, offering reassurance over its lifecycle. While the exact installation method or mounting components aren’t specified here, the product description notes straightforward installation in grid ceilings and compatibility with drywall, surface, or suspension mounting approaches, aligning with common retrofit and new-construction scenarios.
Features:
- Selectable wattage with 3 settings
- Selectable color temperature: 3500K, 4000K, 5000K
- 2' x 2' LED volumetric troffer with 110° beam angle
- Lumens: 2,500 – 3,750 depending on configuration
- Color Rendering Index (CRI) 80
- Power factor >? and THD ≈ 20% (per spec data)
- Operating temperature range: -4°F to 113°F (-20°C to 45°C)
- Finish: Powder coat white; Damp location rated
- Long rated life: 50,000 hours; 5-year warranty
- Shape:
- 2' x 2'
- Brand:
- LED Volumetric Troffer C-Series
- Watts:
- 30
- Voltage:
- 120-277
- Average Rated Life:
- 50000
- Luminaire Lumens:
- 2500| 3125 | 3750
- CRI:
- 80
- Color Temp:
- 3500 | 4000 | 5000
- Finish:
- Powder Coat - White
- Operating Temp:
- -4°F to 113°F (-20 Degrees C to 45 Degrees C)
- Power Factor:
- >
- Warranty:
- 5 Years
- Beam Angle:
- 110°
- THD:
- ?20%
- Lumens/Watt:
- 125
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
