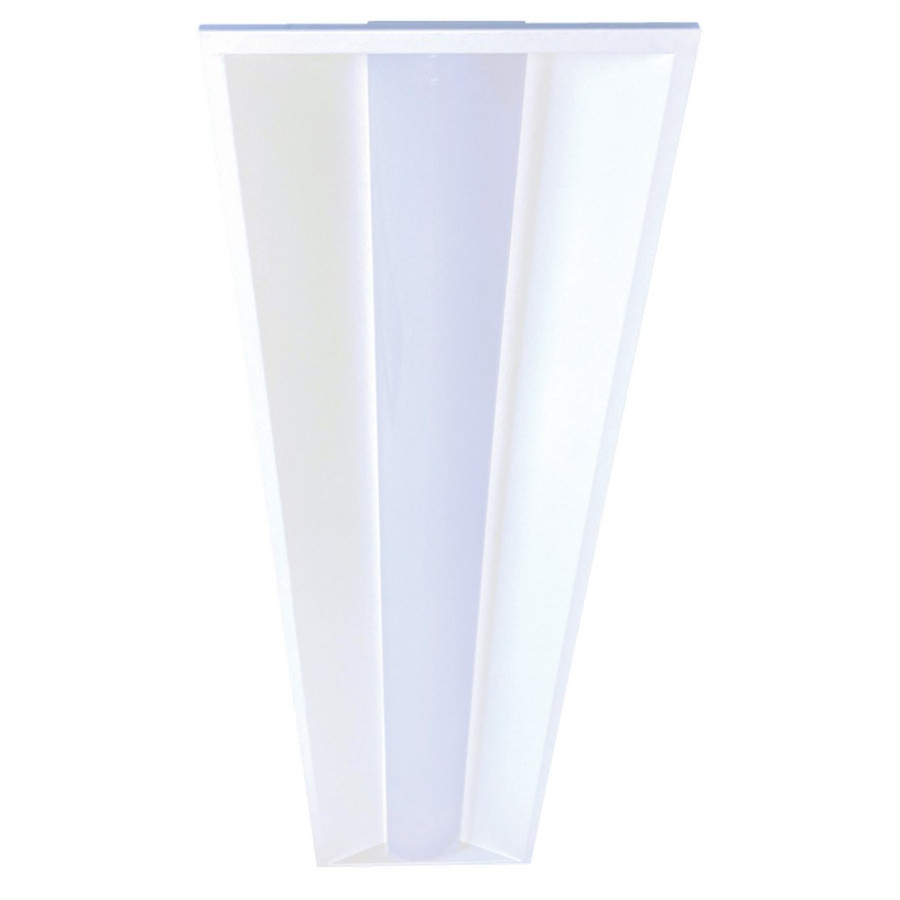

The Litetronics VLCT1 is a 1' x 4' LED volumetric troffer built for modern, energy-efficient interior lighting. Designed to fit standard 1' x 4' grid ceilings, it can also be recessed into drywall ceilings or installed as surface or suspended mounting, giving flexibility for a variety of architectural spaces. The fixture delivers multi-level performance with selectable wattage and color temperature, enabling you to tailor illumination to specific tasks or design goals while maintaining consistent, glare-controlled light quality. With up to 125 lumens per watt and a long 50,000-hour rated life, the VLCT1 is positioned to reduce maintenance and energy costs over time when compared to traditional fluorescent systems.
Constructed as a powder-coated white luminaire, its efficiency is supported by a high lumen output across three color temperatures (3500K, 4000K, 5000K) and three selectable lumen levels, providing up to 2,500, 3,125, or 3,750 lumens depending on configuration. The design emphasizes a wide 110-degree beam spread and a consistent color rendering, making it suitable for general ambient lighting in offices, classrooms, retail, and other commercial interiors. The fixture operates on 120–277V and is rated for damp locations, aligning with common installation requirements in indoor spaces.
Key practical considerations include the need to select the desired wattage and CCT during installation to achieve the target light levels and color tone. The VLCT1 is backed by a 5-year warranty, reflecting confidence in its long-term performance in commercial settings. When planning retrofits or new construction, consider the fixture’s dimmability and electrical compatibility with existing ceiling grids to ensure a smooth, code-compliant installation.
Features:
- Selectable wattage with 3 settings
- Selectable CCT: 3500K, 4000K, 5000K
- 1' x 4' LED Volumetric Troffer C-Series
- Lumens: 2500 / 3125 / 3750 (depends on settings)
- CRI 80; THD < 20%
- Beam angle 110°; Power factor >0.9
- Voltage 120-277V; Damp location suitability
- Average rated life 50,000 hours; 5-year warranty
- Shape:
- 1' x 4'
- Brand:
- LED Volumetric Troffer C-Series
- Watts:
- 30
- Voltage:
- 120-277
- Average Rated Life:
- 50000
- Luminaire Lumens:
- 2500| 3125 | 3750
- CRI:
- 80
- Color Temp:
- 3500 | 4000 | 5000
- Finish:
- Powder Coat - White
- Operating Temp:
- -4°F to 113°F (-20 Degrees C to 45 Degrees C)
- Power Factor:
- >
- Warranty:
- 5 Years
- Beam Angle:
- 110°
- THD:
- ?20%
- Lumens/Watt:
- 125
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
