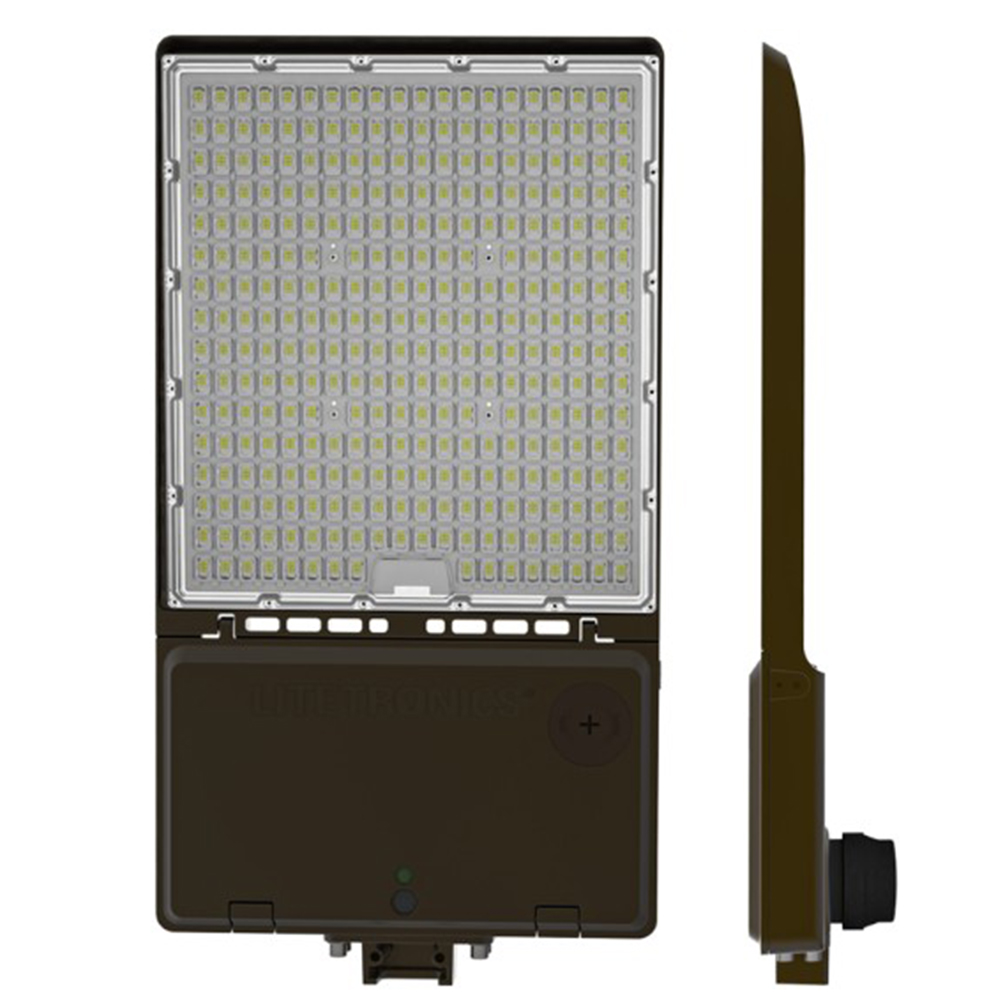

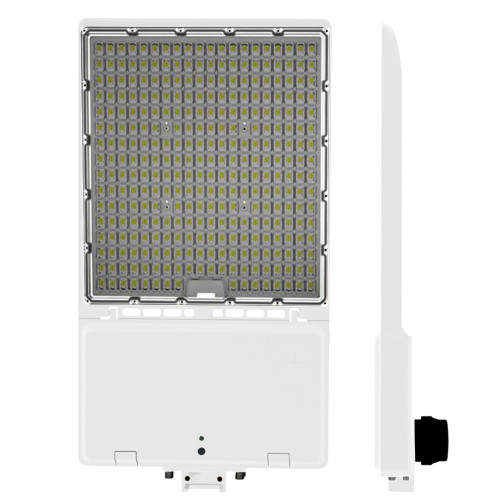

The Litetronics ALP500 Area Light Pro is a versatile outdoor lighting fixture designed to simplify installation and reduce inventory complexity. This all-in-one LED area light operates on a universal 120–480V driver, letting a single unit cover multiple voltage requirements and wattage configurations. With field-selectable wattages and color temperatures, as well as selectable beam distributions (Type II, III, IV, and V), it can adapt to parking lots, campuses, industrial yards, and retail exterior spaces without needing multiple SKUs. The Area Light Pro is built for reliability, featuring a 100,000-hour rated life, a 10-year warranty, and a low-profile form factor that supports quick installation through its Quick Slide Mounting system. The design includes smart networking options, such as a plug-and-play smart controls framework, a 3-pin shorting cap standard, and an optional 3-pin photo control or a NEMA 7-pin receptacle for smart node compatibility, enabling easier control and integration with modern lighting controls.
Constructed with a matte powder-coated finish and a robust housing, the ALP500 delivers high-quality illumination with a typical lumens output that scales with selectable wattages (300, 400, 500W) and color temperatures (3000K, 4000K, 5000K). The fixture achieves a high color rendering index (CRl > 80) and a power factor around 0.95, ensuring efficient performance and steady operation in outdoor environments. Its Type II–V distributions and 155° beam angle provide flexible light placement and coverage patterns suitable for broad outdoor areas while meeting general outdoor-use requirements and damp-location suitability. The product supports accessories such as glare shields, Slipfitter, Pole Tenon, and Trunnion Mountings, and it is compatible with LiteSmart mobile app for remote monitoring and control where applicable.
When planning installations, the ALP500’s field-selectable features help minimize stocking needs and simplify project planning. Consider the importance of selecting the appropriate distribution and wattage for your site to ensure the requested illumination levels and uniformity. Durability and reliability are reinforced by a long-rated life, wide operating temperature range, and proven weather resistance in outdoor settings. The fixture is designed for professional outdoor use and is compatible with standard mounting options and control accessories where permitted by project specifications.
Features:
- All-in-one 120-480V operation
- DLC 5.1 Premium (Pending)
- Selectable Distribution: Type II, III, IV, V
- Field Selectable Wattages & CCT
- 10-Year Warranty
- 100,000-Hour Rated Life
- Smart Node Ready with Optional 3-Pin Receptacle
- TAA Compliant
- Brand:
- LED Area Lights
- Watts:
- 300 | 400 | 500
- Voltage:
- 120-480V
- Average Rated Life:
- 100,000 hrs.
- Luminaire Lumens:
- 48000 | 64000 | 80000
- CRI:
- >80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 122°F (-40 Degrees C to 50 Degrees C)
- Power Factor:
- >.95
- Warranty:
- 5 years
- Beam Angle:
- 155°
- THD:
- <20%
- Usage:
- Outdoor
- Lumens/Watt:
- 160
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
