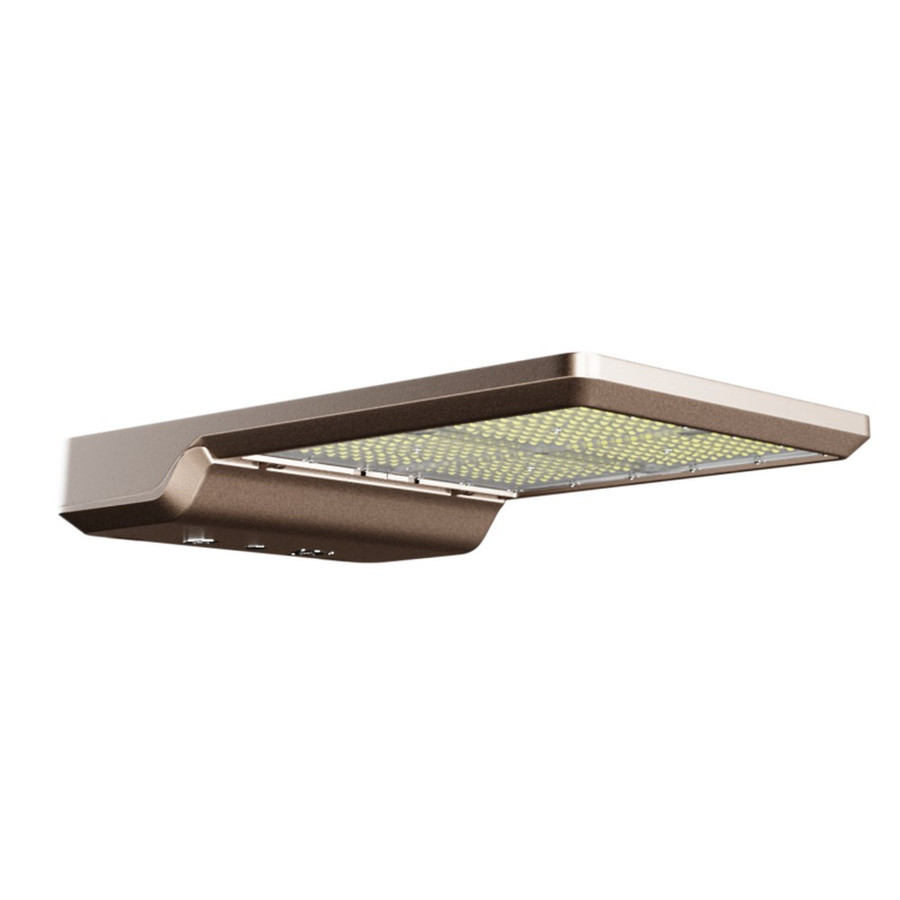

Litetronics AL1503 is a high-output LED area light designed for outdoor illumination with a broad distribution and versatile control options. This model operates on 120–277 V and delivers substantial lumen output across multiple configurations, offering 14,000 to 21,000 lumens depending on the selected setting. The light is rated for outdoor use with a matte powder coat finish and a 155° beam angle, suitable for wide-area lighting in parking lots, campuses, or perimeters where even coverage is important. With a reported average life of 50,000 hours and a high power factor, this fixture provides a long service interval and reliable performance under varying conditions. The unit is suitable for damp locations and is rated for wet locations, reflecting its intended outdoor deployment in challenging environments. Typical color temperatures available are 3000K, 4000K, and 5000K, enabling selection to match surrounding lighting schemes and application requirements.
The AL1503 is part of a family of Litetronics LED Area Lights that emphasize energy efficiency and flexible installation. The standard configuration includes a 3-pin shorting cap and a pluggable sensor socket, with Type III light distribution (and options for Type II, IV, or V distributions). Optional sensors—from PIR and microwave to the LiteSmart sensor—can be added to enable energy-saving controls and, in some configurations, remote group management via the LiteSmart app to help meet local codes and ordinances. Mounting accessories such as slipfitter, direct-fixed, rotatable, trunnion, and yoke configurations are available to fit various mounting scenarios.
This product is packaged as a single unit and carries a 5-year warranty, reflecting its intended industrial and commercial outdoor use. When selecting this luminaire, consider site layout, mounting method, and desired distribution pattern, as these factors influence the effective illumination and energy savings.
Features:
- 120-277V input
- Up to 21,000 lumens
- CRl 80, color temps 3000K/4000K/5000K
- 155° beam angle
- Wet location and outdoor rated
- Matte powder coat finish
- 5-year warranty
- Brand:
- LED Area Lights
- Watts:
- 150
- Voltage:
- 120-277V
- Average Rated Life:
- 50,000 hrs.
- Luminaire Lumens:
- 14,000 | 17,500 | 21,000
- CRI:
- 80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 122°F (-40 Degrees C to 50 Degrees C)
- Power Factor:
- ?.95
- Warranty:
- 5 years
- Beam Angle:
- 155°
- THD:
- ? 20%
- Usage:
- Outdoor
- Lumens/Watt:
- 140
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
