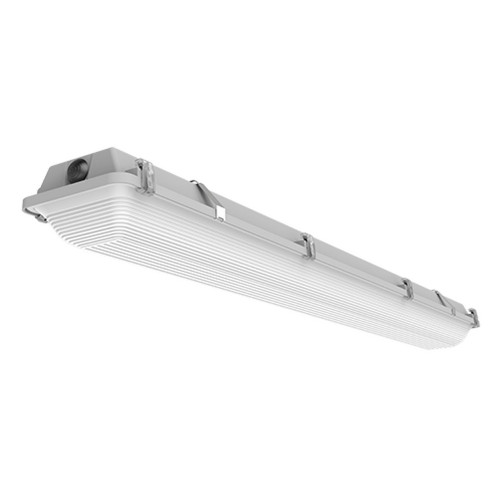

The ILP WTZ4-6L-U-50-RAFL is a four-foot, 40-watt LED vapor-tight luminaire designed for demanding environments. It delivers about 5,201 lumens at a 5000K color temperature, achieving a high lumen-per-watt efficiency. The fixture is built around a fiberglass, gasketed housing that provides IP65-rated protection, making it suitable for wet locations and challenging industrial settings while helping to maintain a clean, safe environment in applications such as food and beverage processing, healthcare, education, and general industrial spaces. Its design emphasizes serviceability and cleanability, aligning with NSF-listed expectations for facilities where hygiene and ease of maintenance are important. The unit is listed to DLC standards, with ETL and NSF recognition noted, signaling suitability for energy-efficient and code-compliant installations in appropriate markets.
Constructed for versatile mounting and installation, the WTZ series uses a white acrylic lens to help distribute light evenly while withstanding typical industrial hazards. The fixture supports 120–277V input, enabling straightforward integration into a variety of electrical infrastructures without a dedicated transformer or control system. It is designed for environments requiring robust protection against moisture and contaminants, including settings like coolers, freezers, and other areas that benefit from a sealed, easy-to-clean luminaire. The product’s specification highlights a long life with L70 ratings exceeding 100,000 hours and a five-year warranty, offering durability and a reliable maintenance profile for facilities aiming to minimize downtime. When planning installation, consider the fixture’s size and mounting options within the WTZ lineup to ensure appropriate spacing and coverage for your 4-foot linear layout.
Features:
- 40 W LED, 5201 lumens, 138 lm/W
- 4' narrow linear vapor tight fixture
- Wide voltage input 120-277V
- 5000K color temperature, CRI >80
- IP65/IP66/IP67, suitable for wet locations
- ETL Listed, DLC Listed & DLC Premium Listed
- Fiberglass housing with acrylic lens
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 40
- Lumens:
- 5201 Lumens
- Lumens Per Watt:
- 138
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- >80
- Dimmable:
- 0-10V Dimming
- UL Listed:
- No
- ETL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- Yes
- Wet Location:
- Yes
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- NEMA4X, NSF, 5VA, ETL
- Housing Material:
- Fiberglass
- Color Finish:
- White
- Lens Type:
- Acrylic
- Motion Sensor Included:
- No
- Emergency Battery Included:
- No
- Operating Temperature Range:
- -4?F-115?F
- Life Rating L70:
- >100,000 Hours
- Warranty:
- 5 Years
- IP Rating:
- IP65, IP66, IP67
