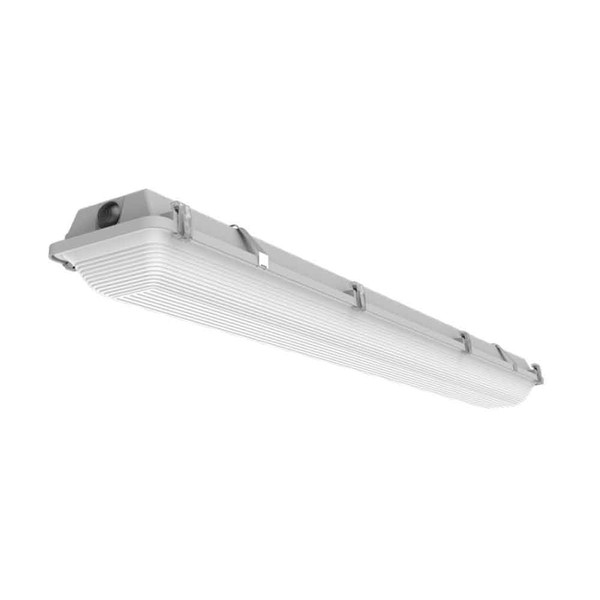

ILP WTZ4-5L-U-50-RAFL 38 Watt LED 4' Narrow Linear Vapor Tight Fixture 120-277V 5000K 5201 Lumens

ILP WTZ4-5L-U-50-RAFL 38 Watt LED 4' Narrow Linear Vapor Tight Fixture 120-277V 5000K 5201 Lumens
ILP
SKU:
WTZ4-5L-U-50-RAFL
$193.54
/ Each
Weight:
6.00 LBS
Adding to cart… The item has been added

The ILP WTZ4-5L-U-50-RAFL is a 38 watt LED vapor-tight linear luminaire designed for environments that require robust sealing and easy cleaning. Its NSF-listed fiberglass enclosure supports sanitation-focused operations and is rated for wet and damp locations, making it suitable for food and beverage processing, as well as other areas where moisture exposure is a concern. The fixture delivers about 5201 lumens at a color temperature of 5000K and a high color rendering index (CRI > 80), providing bright, neutral-white illumination with energy efficiency reflected in its 138 lumens per watt performance. It operates on a universal AC input of 120–277V, offering flexible installation options across different electrical systems, and it is designed to tolerate a wide ambient temperature range for demanding industrial settings.

Constructed with a fiberglass housing and an acrylic lens, the unit is built to withstand harsh environments while simplifying maintenance. It carries multiple certifications and listings, including DLC and ETL, with additional compatibility for NSF and 5VA certification requirements. The IP65/66/67 rating indicates strong protection against dust and water ingress, supporting reliable operation in wet locations and challenging cleanroom or food processing areas. The fixture is non-dimmable by default, and it does not include an emergency battery, aligning with its plug-and-play installation profile. With a life rating of L70 at 100,000 hours and a 5-year warranty, this luminaire emphasizes long-term reliability in demanding applications.

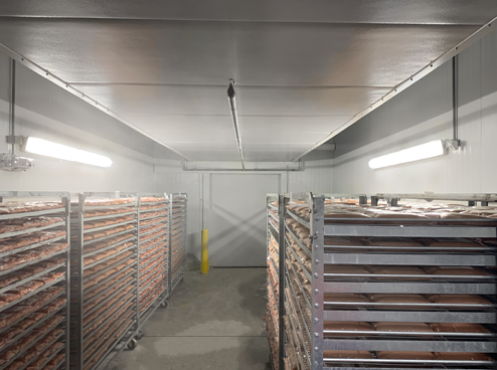

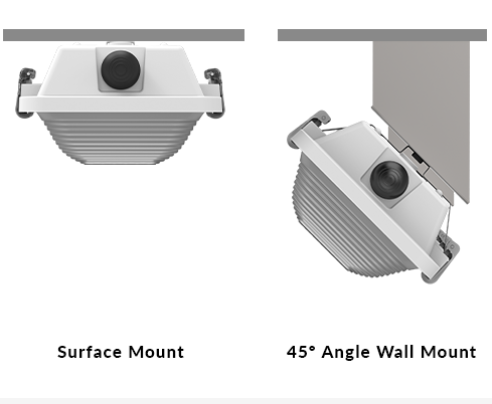

Supported use cases span coolers and freezers, food and beverage preparation zones, greenhouses, pharmaceutical and healthcare facilities, educational spaces, industrial settings, and parking garages. Its 4-foot linear form factor provides straightforward layout integration for long runs, while its sealed design and gasketed construction aid in maintaining a clean, safe environment. When planning installation, verify voltage compatibility (120–277V), ambient temperature suitability, and mounting options to ensure the fixture meets your specific vapor-tight application requirements.

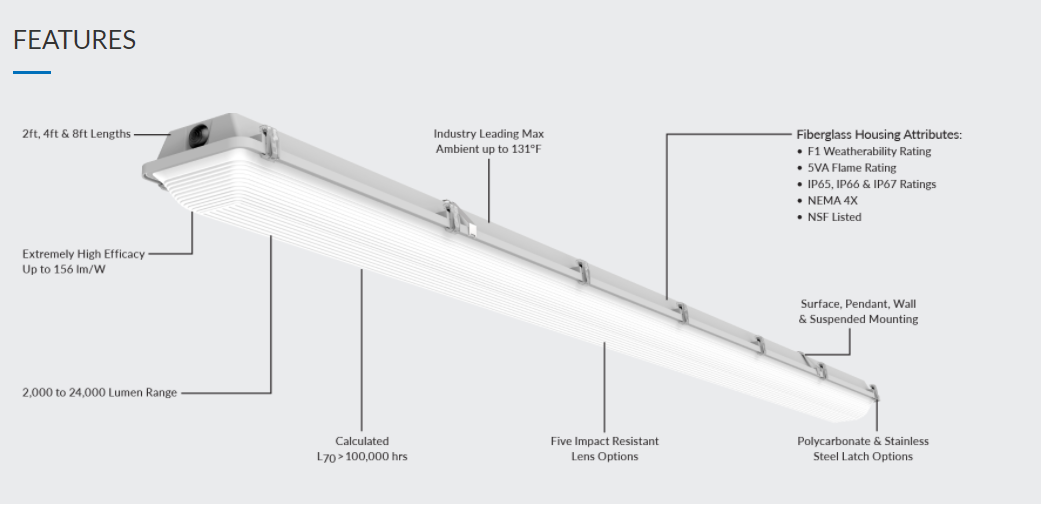

Features:

  • 5201 Lumens at 5000K
  • Wattage: 38W, Voltage: 120-277V
  • IP65/ IP66 / IP67 rated, Wet and Damp Location suitable
  • ETL, DLC, and DLC Premium Listed
  • Fiberglass housing with acrylic lens
  • Long life: L70 >100,000 hours
  • 5-year warranty
  • UL Listed: No, ETL Listed: Yes

Package Size:
Each
Package Includes:
1/Each
Wattage:
40
Lumens:
5201 Lumens
Lumens Per Watt:
138
Input Voltage:
120-277V
Color Temp:
5000K
CRI:
>80
Dimmable:
0-10V Dimming
UL Listed:
No
ETL Listed:
Yes
DLC Listed:
Yes
DLC Premium Listed:
Yes
Wet Location:
Yes
Damp Location:
Yes
Hazardous Location:
No
Certifications:
NEMA4X, NSF, 5VA, ETL
Housing Material:
Fiberglass
Color Finish:
White
Lens Type:
Acrylic
Motion Sensor Included:
No
Emergency Battery Included:
No
Operating Temperature Range:
-4?F-115?F
Life Rating L70:
>100,000 Hours
Warranty:
5 Years
IP Rating:
IP65, IP66, IP67
