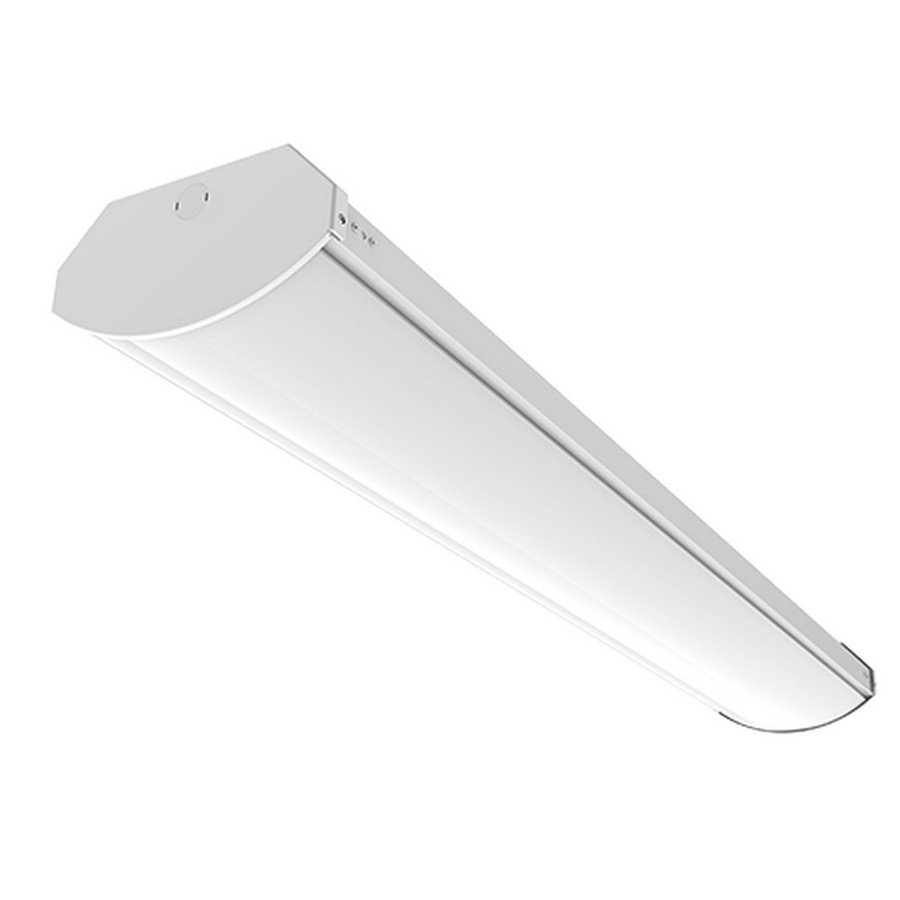

Name: ILP FNW84040-01 Commercial LED Narrow Wrap Light 4000K, 31 Watt, 4071 Lumens
Brand: ILP
SKU: FNW84040-01
Price: 274.76 USD
Availability: InStock

ILP FNW84040-01 Commercial LED Narrow Wrap Light 4000K, 31 Watt, 4071 Lumens

ILP

SKU:

FNW84040-01

$274.76

/ Each

Weight:

14.00 LBS

The ILP FNW84040-01 Commercial LED Narrow Wrap Light is a slim, high-efficiency lighting solution designed to illuminate contemporary commercial spaces with a compact 9-inch-wide profile. This luminaire is offered in standard lengths of 4 feet and 8 feet, providing flexible mounting options for linear layouts. It delivers 4,071 lumens at a 31-watt draw, translating to solid efficiency for general ambient lighting while maintaining a crisp 4000K color temperature for daylight-like illumination. The fixture is finished in white and is constructed with molded endcaps to support a clean, streamlined appearance suitable for indoor environments.

Key construction details include a frosted, impact-resistant lens that helps reduce glare and distribute light evenly, along with a 0-10V dimmable driver compatible with 120–277V. The product is ETL listed for damp locations, and it has earned DesignLights Consortium (DLC) qualification, signaling compatibility with energy-efficiency programs and potential utility rebates in qualifying installations. A 5-year warranty provides coverage against manufacturing defects, reinforcing its suitability for long-term commercial use.

This wrap-light is appropriate for a variety of commercial applications, including offices, retail spaces, corridors, and back-of-house areas where a slim profile and reliable performance are beneficial. Given its 120–277V dimmable driver, it can be integrated into existing lighting controls and retrofit projects that require flexible voltage compatibility. When planning installations, confirm mounting length and space to accommodate either the 4-foot or 8-foot option, and consider sensor configurations that may complement occupancy-based lighting strategies. Overall, the FNW84040-01 balances compact design with solid lumen output and efficiency, backed by standard warranty and damp-location suitability.

Features:

Narrow & Sleek Design with 9? Width
Molded Endcap
4 ft & 8 ft Available
2,200 – 8,000 Lumens
3500K, 4000K & 5000K CCT
0-10V 120-277V Dimmable Driver
Frosted Impact Resistant Lens
Sensor Options
5 Year Warranty
ETL Damp Location Listed
DesignLights Consortium Qualified Luminaire

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 31
Lumens:: 4071
Lumen Per Watt:: 132
CRI:: >80
Finish:: White
ETL Listed:: Yes
Operating Temperature Range:: -4°F to 114?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key construction and style features of the ILP FNW84040-01 LED wrap light?

It features a narrow and sleek design with a 9-inch width and molded endcaps, and is available in 4 ft and 8 ft lengths with a frosted, impact-resistant lens.

What are the electrical and light output specifications for this model?

It uses an input voltage of 120-277V, with a wattage of 31 W, 4071 lumens, and a lumen per watt of 132. The color temperature for this SKU is 4000K and it has an average rated life of 100,000 hours.

Is this luminaire compatible with dimming or sensors?

Yes, it features a 0-10V dimmable driver compatible with 120-277V and offers sensor options.

What certifications or qualifications does this fixture have?

It is ETL-listed for damp locations and is DesignLights Consortium Qualified.

What is included in the packaging and warranty terms?

The specification indicates a 5-year warranty; the package size is listed as Each, but there are no further details on included accessories in the provided data.
