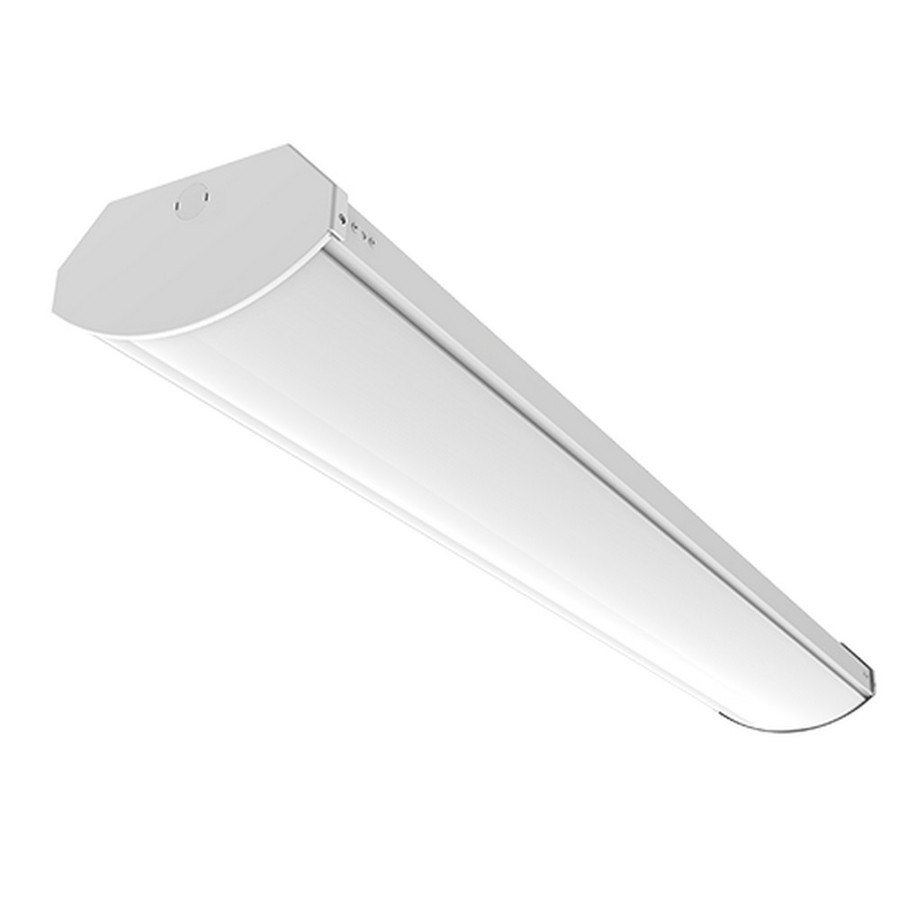

The ILP FNW43040-01 is a commercial LED wrap light designed for efficient, space-conscious illumination. With a narrow 9-inch profile and molded endcaps, this luminaire is offered in 4-foot and 8-foot lengths to fit a variety of installation layouts. It delivers about 2,988 lumens at a 25-watt input in the provided spec, and is available in 4000K CCT, with other color temperatures offered in the broader line. A 0–10V dimmable driver supports 120–277V operation, enabling compatible dimming control in appropriate systems. The frosted, impact-resistant lens helps diffuse light evenly while maintaining a slim and unobtrusive appearance. The fixture is ETL-listed for damp locations and has design qualifications through DLC, signaling adherence to certain efficiency and performance standards, and it carries a 5-year warranty.
In terms of construction and features, the product emphasizes a compact, sleek form factor without sacrificing performance. The molded endcaps contribute to a clean look and potentially easier installation, while the frosted lens provides practical light diffusion for work areas. The driver’s wide voltage compatibility and dimming capability can simplify integration into existing electrical systems and control schemes. The unit’s listed operating range and lumen output position it as a viable option for general task lighting in commercial or industrial spaces where ceiling height and fixture spacing are considerations.
Practical considerations include dependence on proper electrical wiring for 0–10V dimming and adherence to the listed damp-location usage. The product is specified with a 25 W input and approximately 2988 lumens, implying a moderate level of efficiency for a compact wrap fixture. Sizing and mounting should reference the 4 ft or 8 ft lengths to ensure proper coverage and seamless installation in linear layouts. This model is compatible with standard maintenance practices for LED luminaires, including periodic cleaning of the frosted lens and inspection of connections as part of routine facility upkeep.
Features:
- Narrow & Sleek Design w/ 9? Width
- Molded Endcap
- 4ft & 8ft Available
- 2,200 – 8,000 Lumens
- 3500K, 4000K & 5000K CCT
- 0-10V 120-277V Dimmable Driver
- Frosted Impact Resistant Lens
- Sensor Options
- 5 Year Warranty
- ETL Damp Location Listed
- DesignLights Consortium Qualified Luminaire
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 25
- Lumens:
- 2988
- Lumen Per Watt:
- 122
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Operating Temperature Range:
- -4°F to 114?F
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
