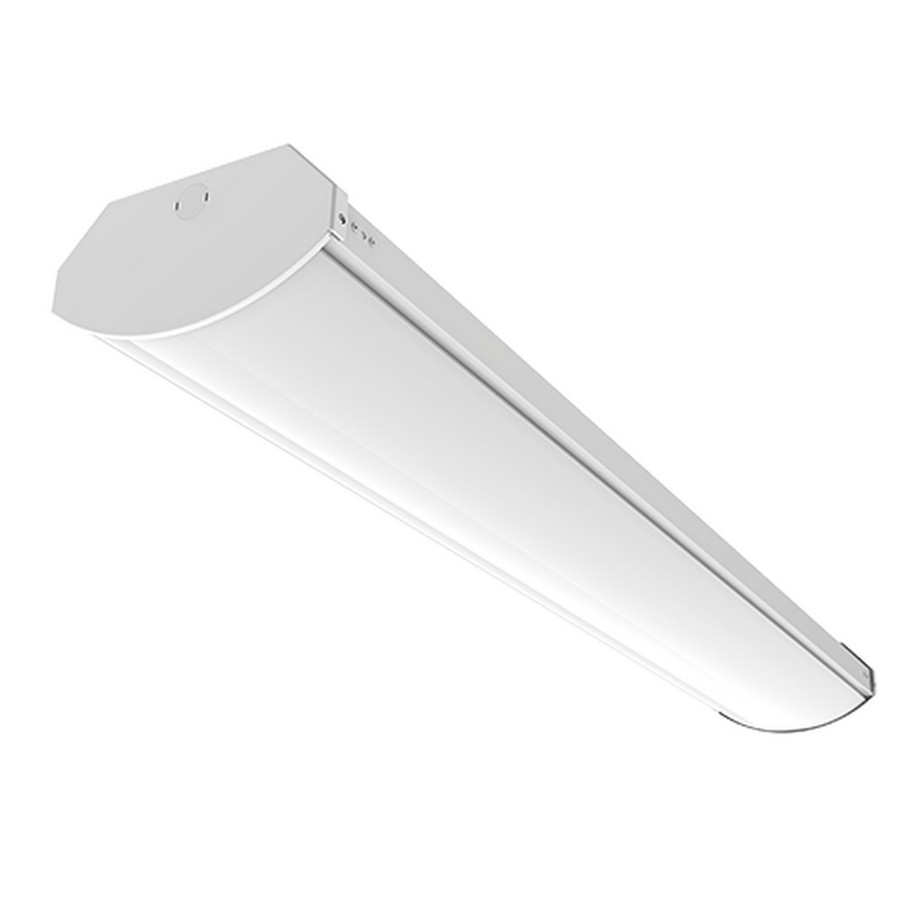

ILP FNW42540-01 Commercial LED Narrow Wrap Light 4000K, 20 Watt, 2437 Lumens

The ILP FNW42540-01 is a compact, commercial LED wrap luminaire designed to deliver efficient general lighting in linear layouts. With a narrow 9-inch width and a slim profile, this fixture is offered in both 4-foot and 8-foot configurations to suit different ceiling runs, helping maximize usable fixture density in workspaces. The unit is equipped with a frosted, impact-resistant lens and molded endcaps, contributing to uniform light distribution while withstanding typical workshop or warehouse environments. It provides 20 watts of power and delivers 2,437 lumens at a color temperature of 4000K, yielding a practical lumen-per-watt efficiency appropriate for standard ambient illumination without excessive glare. The 0-10V dimmable driver supports 120-277V operation, enabling flexible control schemes for energy savings and ambiance when paired with compatible sensors and control systems. The fixture is ETL listed for damp locations and DLC Standard-qualified, indicating meeting recognized safety and performance benchmarks for commercial installations. A 5-year warranty offers reassurance of product support and longevity in service.

Key construction and distinguishing features include the integrated design with molded endcaps and a relatively low-profile footprint that can blend into various ceiling planes. The 4000K CCT is suitable for general task lighting where clarity and color rendering are important, complemented by a CRI of 80 or higher as indicated. The luminaire is suitable for indoor use in spaces that require reliable, long-life illumination with straightforward maintenance. Typical applications include offices, retail corridors, and storage areas where low-profile linear lighting is preferred and where 120-277V power is readily available. The package is listed as each fixture, enabling straightforward quantity-based ordering and installation planning. Maintenance considerations include the need to ensure correct driver compatibility and control system integration to realize dimming and sensor-based features.

Features:

• Narrow & Sleek Design with 9? Width
• Molded Endcap
• 4 ft & 8 ft Available
• 2,200 – 8,000 Lumens
• 3500K, 4000K & 5000K CCT
• 0-10V 120-277V Dimmable Driver
• Frosted Impact Resistant Lens
• Sensor Options
• 5 Year Warranty
• ETL Damp Location Listed
• DesignLights Consortium Qualified Luminaire
