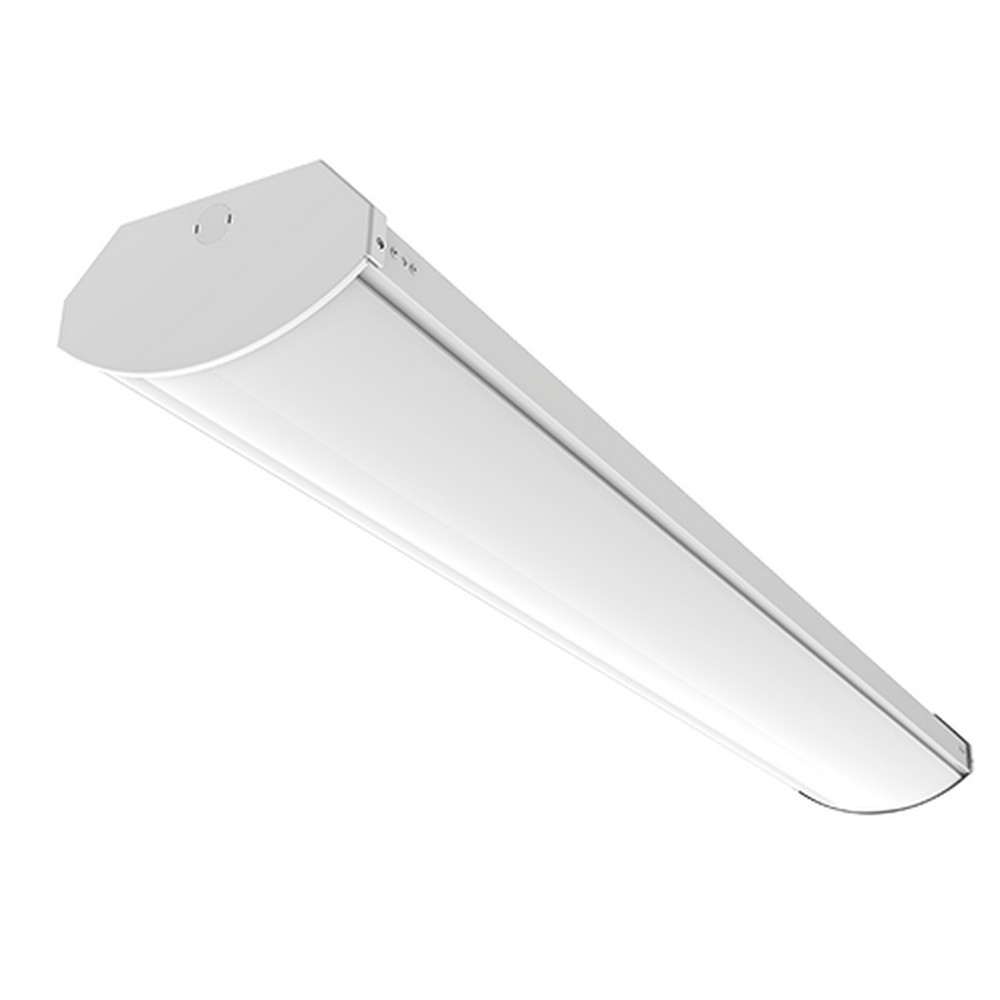

Name: ILP FNW86040-01 Commercial LED Narrow Wrap Light 4000K, 49 Watt, 5975 Lumens
Brand: ILP
SKU: FNW86040-01
Price: 292.04 USD
Availability: InStock

ILP FNW86040-01 Commercial LED Narrow Wrap Light 4000K, 49 Watt, 5975 Lumens

ILP

SKU:

FNW86040-01

$292.04

/ Each

Weight:

14.00 LBS

The ILP FNW86040-01 Commercial LED Narrow Wrap Light is a slim, high-output luminaire designed to deliver efficient, uniform illumination in long runs. With a compact 9-inch-wide profile and molded endcaps, this wrap fixture is available in 4-foot and 8-foot lengths to suit various installation footprints. It delivers 4,000 Kelvin color temperature with 5,975 lumens at 49 watts, resulting in a higher efficacy suitable for commercial and industrial spaces requiring bright, consistent light. The fixture is designed for damp locations, and it carries DesignLights Consortium qualification, which can assist in energy-efficiency and rebate programs. A frosted, impact-resistant lens helps protect the optical output while reducing glare, supporting continued performance in demanding environments. The unit is powered by a 0-10V dimmable driver compatible with 120–277V, enabling simplified integration with existing controls and enabling energy savings through dimming where permitted. It also offers sensor options for occupancy or daylight control, further enhancing efficiency and space management. The FNW86040-01 is finished in white, and carries a 5-year warranty, reflecting ILP’s assurance of product reliability over time.

Why these verified details matter: the narrow 9-inch footprint and available longer lengths provide flexibility for linear lighting layouts, while the 4,000K CCT and 5,975-lumen output offer usable color and brightness for a range of work environments. The 120–277V dimmable driver and sensor-ready options support modern building automation and energy-management strategies, and the DLC qualification indicates a recognized level of efficiency that can influence utility rebates and compliance with project specifications. The damp-location suitability and durable lens contribute to longer service life in areas subject to moisture and incidental impacts.

Features:

Narrow & Sleek Design with 9? width
Frosted, impact-resistant lens
4 ft & 8 ft options
0-10V dimmable driver (120-277V)
4000K CCT
5975 lumens, 49 watts
ETL Damp Location Listed

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 49
Lumens:: 5975
Lumen Per Watt:: 122
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Standard
Operating Temperature Range:: -4°F to 114?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key construction and design features of this ILP FNW86040-01 lighting fixture?

It features a narrow 9-inch width with molded endcaps, available in 4 ft and 8 ft lengths, and a frosted, impact‑resistant lens.

What are the technical specifications for this fixture, including power, lumen output, and color temperature?

It uses 120-277V input, 49 W, 5975 lumens, and a 4000K color temperature.

Is this luminaire dimmable and compatible with a dimming control system?

Yes, it has a 0-10V dimmable driver compatible with 120-277V.

What installation and performance certifications or qualifications does this product have?

It is ETL listed for damp locations and is DesignLights Consortium Qualified; it includes a standard DLC listing.

What are the warranty and operating conditions for this fixture?

The product carries a 5-year warranty and has an operating temperature range of -4°F to 114°F.

Spec Sheet

ILP FNW86040-01 Commercial LED Narrow Wrap Light 4000K, 49 Watt, 5975 Lumens

Features:

DLC Standard

What are the key construction and design features of this ILP FNW86040-01 lighting fixture?

What are the technical specifications for this fixture, including power, lumen output, and color temperature?

Is this luminaire dimmable and compatible with a dimming control system?

What installation and performance certifications or qualifications does this product have?

What are the warranty and operating conditions for this fixture?
