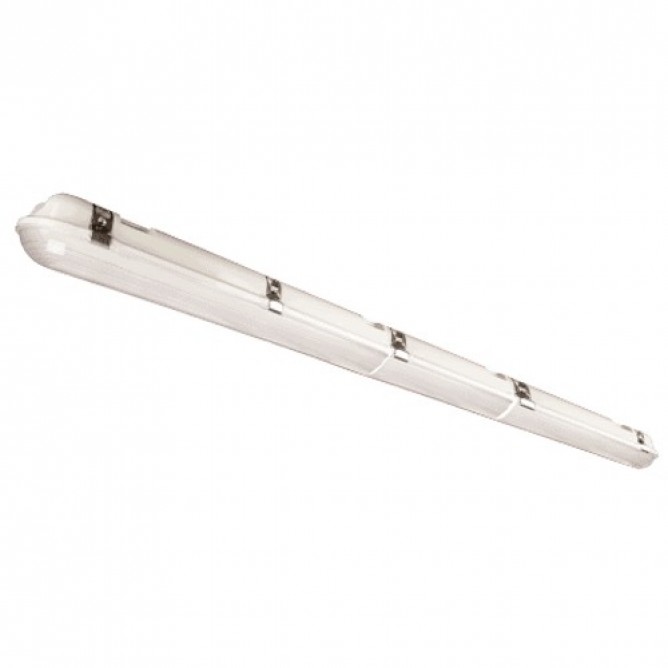

The TCP VTF4UZDA150K is a 20-watt LED vapor-tight fixture designed to deliver reliable, energy-efficient illumination in challenging environments. With a 48-inch linear form, it outputs about 2,600 lumens at a color temperature of 5000K (daylight), offering bright, crisp visibility suitable for cold storage, car wash bays, agricultural facilities, and other areas where moisture and harsh conditions are a concern. The fixture operates on 120–277V and supports 0–10V dimming, giving you flexibility to adjust lighting levels to match workflow and ambient conditions. A durable polycarbonate lens paired with a plastic housing helps resist impact while providing an IP65-rated seal to protect against dust and water jets, making it appropriate for wet locations and demanding environments. The design incorporates stainless steel clips for straightforward lens removal and an accessible wire department for easier electrical installation and maintenance. The unit is rated for up to 50,000 hours of operation and carries a 5-year warranty, reflecting confidence in long service life under typical operating conditions.
Constructed for practical, low-maintenance use, this fixture leverages a frosted polycarbonate lens to diffuse light evenly and minimize glare across large work areas. The IP65 rating ensures protection against water exposure from spray or washdowns, while the wide beam spread helps illuminate broad spaces without needing many fixtures. Its DLC 5.0 Premium listing indicates compliance with efficiency and performance criteria used in spec-driven purchasing, which can support energy-saving incentives in some programs. When planning installation, consider the 48-inch length and mounting requirements, along with the available voltage, dimming capability, and temperature operating range of -4 to 122 degrees Fahrenheit to ensure suitability for your site conditions.
Features:
- 120-277V operation
- 0-10V dimmable
- Durable polycarbonate lens and plastic housing
- Stainless steel clips for easy lens removal
- Easy to access wire department
- IP65 wet location rated
- DLC 5.0 Premium
- DLC ID:
- PL5O79IL7Y2Y
- Manufacturer Part Number:
- VTF4UZDA150K
- UPC:
- 762148262855
- Manufacturer:
- TCP
- Lumens:
- 2,600
- Lumens Per Watt:
- 130
- Wattage:
- 20 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 5000K
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- Daylight
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- DLC Listed:
- Premium
- Special Features:
- IP65 Rated, Wet Location Rated
- Warranty:
- 5 Years
- Package Size:
- Each
