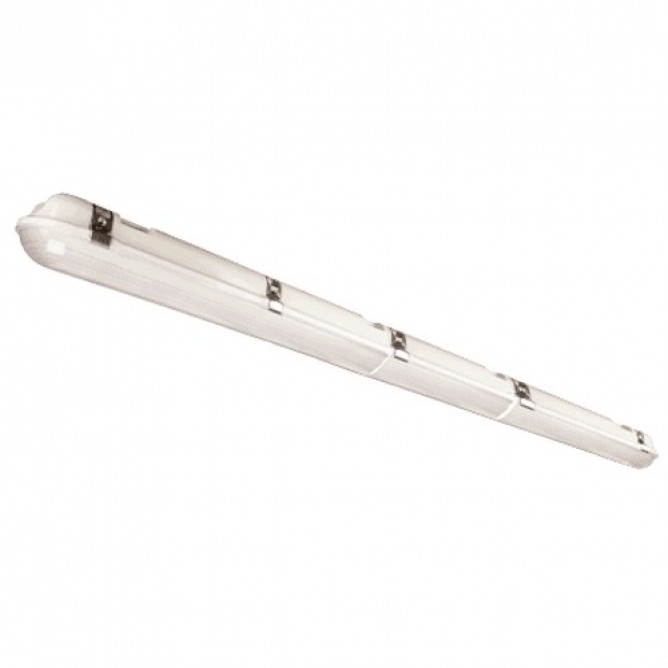

The TCP VTF2UZDA150K is a 24-watt LED vapor-tight fixture designed to deliver reliable illumination in challenging environments. With a 24-inch form factor and a 5000K color temperature, it provides a daylight-like tone suitable for cold storage, car washes, agricultural facilities, and other spaces where fixtures must resist moisture and contaminants. The unit is built around a durable plastic housing and a frosted polycarbonate lens, which together help protect the light from splashes while delivering a broad, uniform beam. A key feature is its IP65 rating, indicating protection against water jets and dust ingress, making it appropriate for wet locations and demanding maintenance environments. The fixture also incorporates a stainless steel lens retention system and an accessible wire compartment to simplify installation and service, factors that reduce maintenance time in tough settings.
Verifiable performance specs support its suitability for long-term operation: 24 watts producing approximately 3,100 lumens, yielding about 129 lumens per watt, and a long rated life of 50,000 hours. The fixture is dimmable via 0-10V control and operates on a broad input range of 120-277V, which can simplify integration into existing electrical architectures without the need for multiple part supplements. The unit is DLC 5.0 Premium listed, which can aid in energy modelings and potential rebate eligibility, and it carries a five-year warranty for added protection against manufacturing defects.
This LED vapor-tight fixture is intended for installations where easy maintenance and reliable wet-location performance are important. It ships as a single unit with the necessary mounting hardware included, and its slim profile supports retrofit or new-construction projects where durable, moisture-resistant lighting is required. When selecting a compatible control scheme or dimming strategy, note the 0-10V dimmability and the wide voltage range to ensure smooth operation with existing controls and power supplies.
Features:
- 120-277V operation
- 0-10V dimmable
- Durable polycarbonate lens and plastic housing
- Stainless steel clips allow for easy lens removal
- Easy to access wire department
- IP65 wet location rated
- DLC 5.0 Premium
- DLC ID:
- PL31YFEHHJKC
- Manufacturer Part Number:
- VTF2UZDA150K
- UPC:
- 762148262824
- Manufacturer:
- TCP
- Lumens:
- 3,100
- Lumens Per Watt:
- 129.17
- Wattage:
- 24 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 5000K
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- Daylight
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- DLC Listed:
- Premium
- Special Features:
- IP65 Rated, Wet Location Rated
- Warranty:
- 5 Years
- Package Size:
- Each
