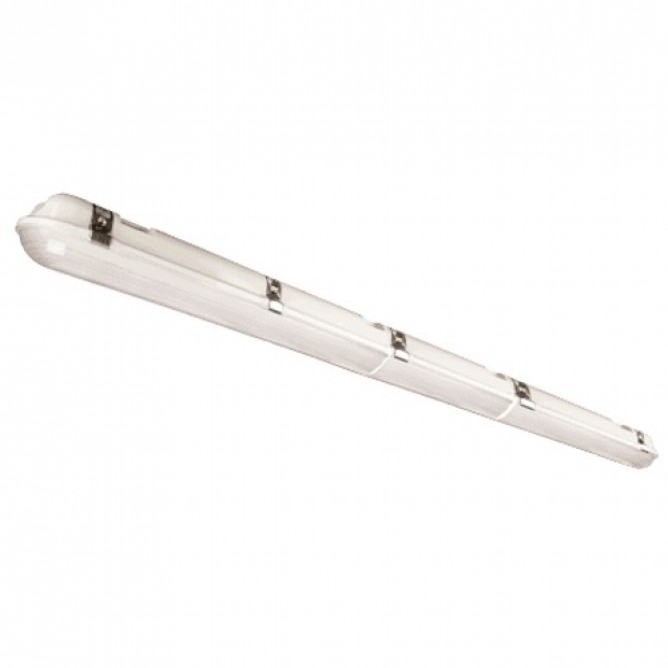

The TCP VTF4UZDA140K is a compact LED vapor-tight fixture designed to deliver efficient, enduring illumination in challenging environments. With a 20-watt LED engine and a 4000K neutral white color temperature, it provides a bright, wide distribution suitable for cold storage rooms, car washes, agricultural facilities, and other areas where moisture, dust, or cleaning chemicals are present. The fixture is constructed with a durable plastic housing and a frosted polycarbonate lens, which helps protect the light output while offering a clear, diffuse beam. An IP65 rating confirms resistance to water jets and dust, supporting reliable operation in wet locations and a wide range of temperatures from -4°F to 122°F. The unit is listed as a DLC 5.0 Premium product, reflecting its energy efficiency and performance credentials for qualifying commercial installations.
Key features include 120–277V universal input and 0–10V dimmability, enabling easy integration into diverse electrical systems and lighting control schemes. Stainless steel clips facilitate straightforward lens removal, while an accessible wire compartment simplifies maintenance and future servicing. With a rated life of 50,000 hours and a 5-year warranty, the VTF4UZDA140K is positioned as a long-life lighting option that reduces maintenance cycles and replacement costs in demanding environments.
This fixture is a practical choice wherever durable, high-quality LED vapor-tight lighting is needed. It ships as a single unit with the full assembly ready for installation, and it is compatible with standard 120–277V electrical systems and compatible dimming controls that support 0–10V dimming. When selecting, verify your installation’s junction box space and mounting method to ensure a secure fit and proper ventilation for optimal performance, especially in damp or dusty industrial spaces.
Features:
- 120-277V operation
- 0-10V dimmable
- IP65 wet location rated
- Durable polycarbonate lens and plastic housing
- Stainless steel clips for easy lens removal
- Easy access to wire department
- 50,000 hour rated life
- DLC ID:
- PL6KAIL98W7Z
- Manufacturer Part Number:
- VTF4UZDA140K
- UPC:
- 762148262831
- Manufacturer:
- TCP
- Lumens:
- 2,600
- Lumens Per Watt:
- 130
- Wattage:
- 20 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 4000K
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- Neutral White
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- DLC Listed:
- Premium
- Special Features:
- IP65 Rated, Wet Location Rated
- Warranty:
- 5 Years
- Package Size:
- Each
