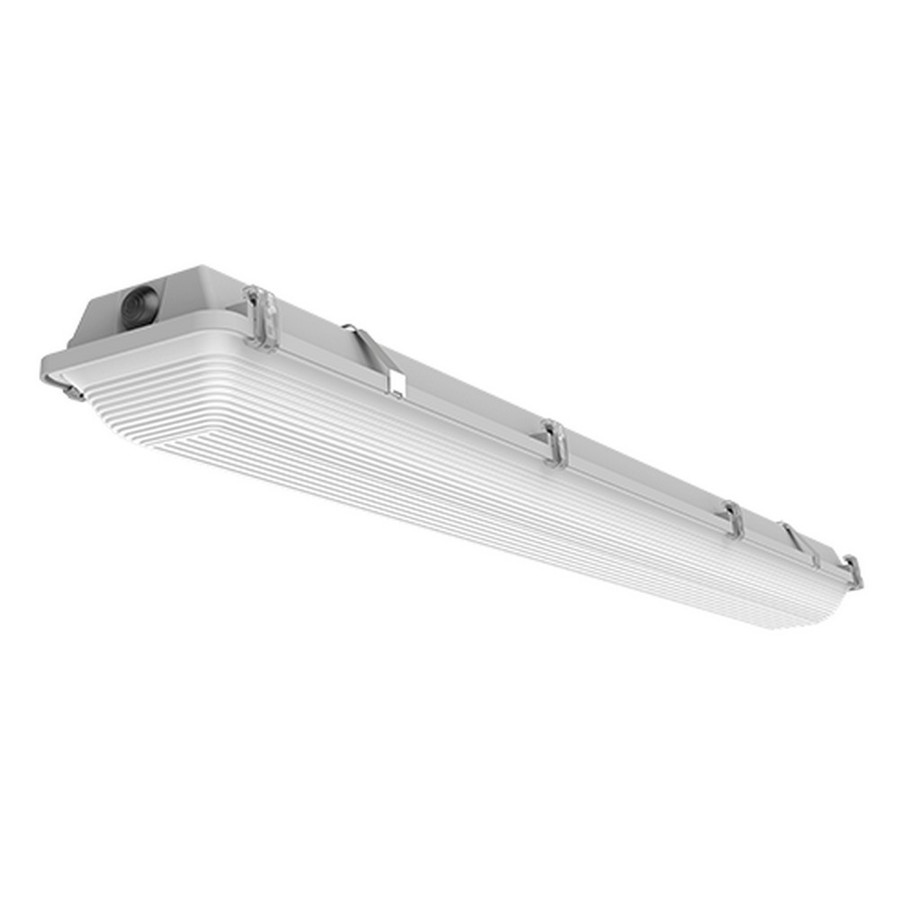

ILP WTZ4-4L-U-50-RAFL WTZ Linear LED Vapor Tight 5000K, 29 Watt, 4074 Lumens, Ribbed Acrylic Frosted Lens

ILP WTZ4-4L-U-50-RAFL WTZ Linear LED Vapor Tight 5000K, 29 Watt, 4074 Lumens, Ribbed Acrylic Frosted Lens
ILP
SKU:
WTZ4-4L-U-50-RAFL
$191.81
/ Each
Weight:
14.00 LBS
Adding to cart… The item has been added

The ILP WTZ4-4L-U-50-RAFL is a compact, rugged linear LED fixture designed for demanding environments. Its narrow body and vapor-tight construction make it suitable for wet and harsh settings while delivering consistent, high-quality illumination. The unit operates at 5000K with a color rendering index above 80, producing bright, crisp light and reliable performance in challenging spaces. At 29 watts, it provides a lumen output of 4,074 and an efficiency of approximately 142 lm/W, helping minimize energy use without sacrificing brightness. A ribbed acrylic frosted lens helps diffuse light evenly for reduced glare and improved visibility across work areas. The fixture carries an ETL listing for wet locations, supporting installation in areas exposed to moisture or spray, and is designed to withstand demanding ambient conditions with an operating range from -40°F to 131°F and an IP rating that covers IP65/IP66/IP67, aligning with requirements in industrial facilities and outdoor-adjacent environments.

The WTZ4-4L-U-50-RAFL is part of a broader family featuring options for surface, pendant, wall, and suspended mounting, enabling flexible deployment in warehouses, manufacturing floors, and process areas. The product includes a 0-10V dimmable driver (100%–10%) for compatible lighting control schemes and is DLC Standard qualified, which can support utility program eligibility in some markets. Built to endure tough conditions, the fixture is backed by a 5-year warranty, providing assurance for ongoing facility operations. With a rated average life of 100,000 hours, maintenance and replacement planning can be scheduled around long intervals between service events.

When selecting this luminaire, consider the fixture’s length options and mounting method to match ceiling or wall layout, as well as the need for continuous illumination or zone lighting. Ensure power supply compatibility within the 120–277V input range and confirm the installation environment meets the IP and environmental ratings for your application. The combination of high efficacy, robust enclosure, and wet-location suitability makes this LED linear light a practical choice for demanding industrial spaces where dependable performance and long life are prioritized.

Features:

  • Robust & Durable Narrow Body Linear Vapor Tight
  • Extremely High Efficacy up to 156 lm/W
  • 2ft, 4ft & 8ft Fixture Lengths
  • 0-10V Dimmable Driver (100%–10%)
  • ETL Listed for Wet Location
  • DesignLights Consortium Premium Qualified Luminaire
  • Ribbed Acrylic Frosted Lens

Input Voltage:
120-277V
Color Temp:
5000K
Watt:
29
Lumens:
4074
Lumen Per Watt:
142
CRI:
>80
Lens Type:
Ribbed Acrylic Frosted
ETL Listed:
Yes
DLC:
Standard
Operating Temperature Range:
-40ºF to 131ºF
IP Rating:
IP65, IP66, IP67
Average Rated Life:
100,000 hrs
Warranty:
5 Years
Package Size:
Each
