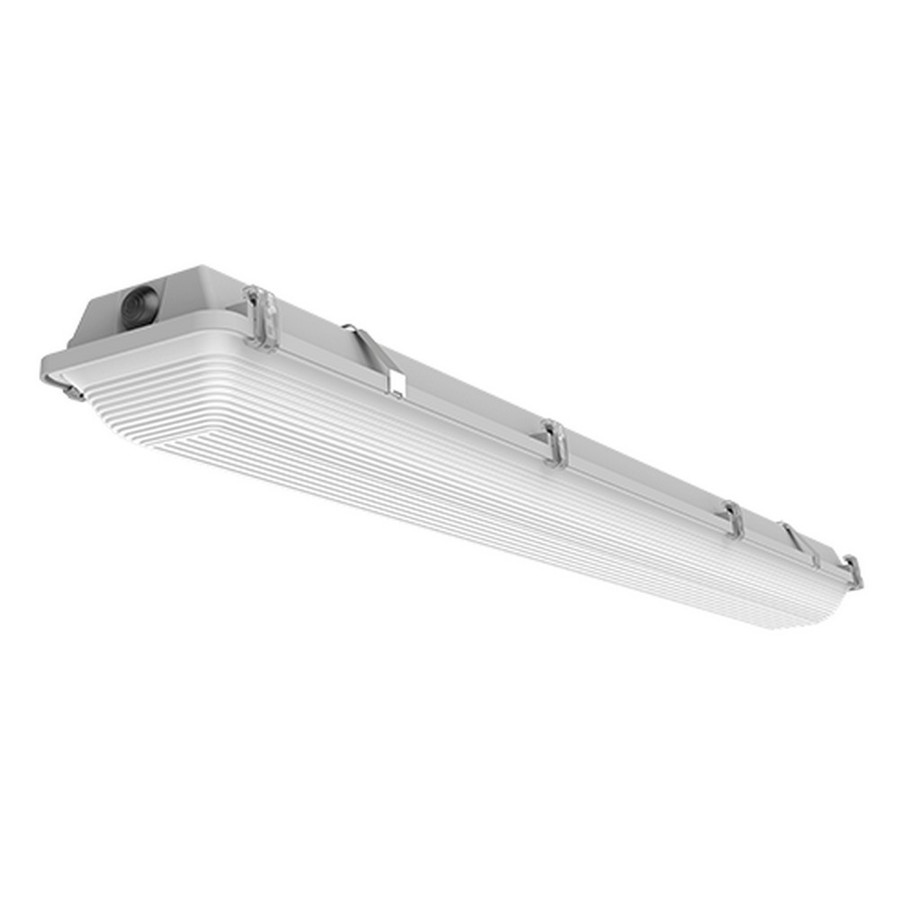

ILP WTZ4-8L-U-50-RAFL WTZ Linear LED Vapor Tight 5000K, 61 Watt, 8668 Lumens, Ribbed Acrylic Frosted Lens

ILP WTZ4-8L-U-50-RAFL WTZ Linear LED Vapor Tight 5000K, 61 Watt, 8668 Lumens, Ribbed Acrylic Frosted Lens
ILP
SKU:
WTZ4-8L-U-50-RAFL
$248.84
/ Each
Weight:
14.00 LBS
Adding to cart… The item has been added

The ILP WTZ4-8L-U-50-RAFL is a robust, narrow-body linear vapor-tight LED lighting fixture designed for challenging environments. This 61-watt unit delivers 8,668 lumens at a 5000K color temperature with an efficacy up to 142 lm/W, making it suitable for high-output illumination in wet or harsh settings. Built to endure, it features a ribbed acrylic frosted lens and a fiberglass body with weatherability and flame ratings, and it carries IP65/IP66/IP67 ratings to help resist dust, water, and hose-down cleanings. The fixture is compatible with a 0-10V dimming driver (dimming from 100% to 10%) and is listed for wet locations, with a calculated L70 lifespan exceeding 100,000 hours, which supports long service intervals in maintenance-heavy facilities. The design supports multiple mounting configurations, including surface, pendant, wall, and suspended installations, offering flexibility for varied layouts and ceiling heights. It’s DLC standard and DesignLights Consortium Premium qualified, which can be advantageous for facility-wide retrofit programs and energy-efficiency incentives, backed by a five-year warranty. These details collectively indicate a high-reliability luminaire capable of maintaining consistent output in environments where vibration, cleanup, or wet conditions are routine.

Because the fixture is rated for a wide operating temperature range (-40°F to 131°F) and a high ambient rating (up to 131°F in select models), it is well-suited for spaces with temperature variability such as industrial plants, storage areas, and cold or outdoor zones where dependable performance is critical. The ribbed acrylic frosted lens helps manage glare and provide diffuse, uniform illumination, while the 2ft, 4ft, and 8ft length options and multiple lumen packages enable scalable lighting design for different areas within a facility. When planning installations, consider mounting flexibility and dimming control to optimize energy use and maintenance cycles. Maintenance should follow standard cleaning and inspection practices for wet-location luminaires, ensuring seals remain intact and that connectors and lenses are inspected for wear over time.

Features:

  • Extremely high efficacy up to 156 lm/W
  • Available in 2ft, 4ft & 8ft lengths
  • 5000K CCT with >80 CRI
  • ETL Listed for Wet Location; IP65/IP66/IP67
  • 0-10V dimmable driver (100%–10%)
  • Multiple mounting options: surface, pendant, wall & suspended
  • DesignLights Consortium Premium Qualified; DLC Standard

Input Voltage:
120-277V
Color Temp:
5000K
Watt:
61
Lumens:
8668
Lumen Per Watt:
142
CRI:
>80
Lens Type:
Ribbed Acrylic Frosted
ETL Listed:
Yes
DLC:
Standard
Operating Temperature Range:
-40ºF to 131ºF
IP Rating:
IP65, IP66, IP67
Average Rated Life:
100,000 hrs
Warranty:
5 Years
Package Size:
Each
