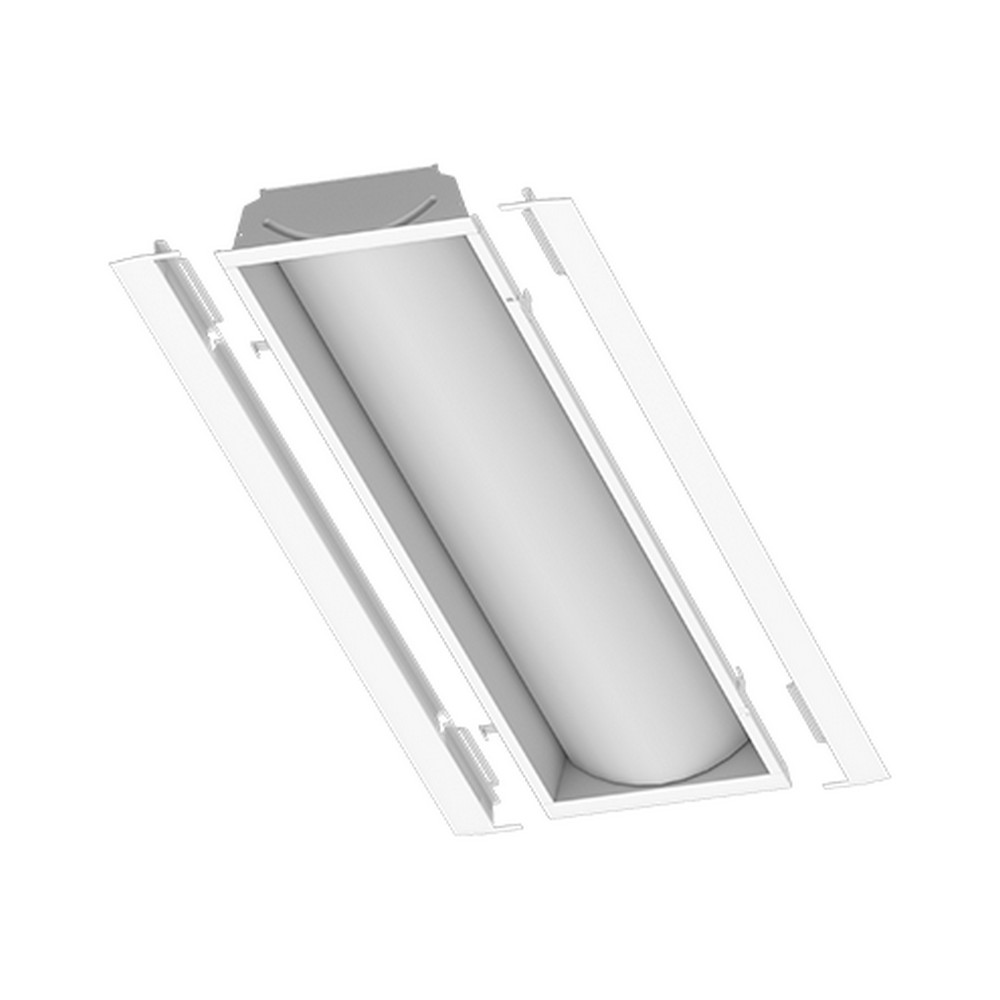

The ILP LANCE14-61L-U-940 is a fixed, one-piece LED troffer retrofit kit designed for recessed ceiling installations. It provides an integrated solution for converting existing troffers to high-efficiency LED lighting, delivering 5,622 lumens at a 45-watt draw with a nominal 4000K color temperature. The unit’s lightweight aluminum housing features a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, which helps promote even illumination with minimal distortion in the task area. With an average installation time under three minutes and two universal mounting brackets, this retrofit kit is positioned for quick, tool-light upgrades in commercial and institutional environments.
Key construction details include a design that supports air return options and offers advanced wireless control capabilities, enabling compatible integrated lighting controls for energy management. The fixture is compatible with 1×4, 2×2, and 2×4 configurations, expanding applicability across different ceiling layouts. It provides a wide delivered lumen range from 2,300 to 6,200 lumens and achieves high efficacy up to 155 lm/W, depending on the chosen configuration and drive electronics. The product supports 80 and 90 CRI options and includes a 0-10V dimmable driver for compatible dimming schemes. It is ETL listed for UL1598C and is qualified as a DesignLights Consortium Premium luminaire, reflecting performance and quality criteria used in professional lighting spec.
Practical considerations include its long-lived performance with a calculated L70 greater than 100,000 hours, supporting reduced maintenance cycles in busy facilities. The standard warranty is 5 years with an optional 10-year extension, underscoring the manufacturer’s confidence in durability and ongoing performance. This kit is designed to be shipped as a single unit and carries the manufacturer part number LANCE14-61L-U-940 for ordering consistency.
Features:
- One-piece troffer retrofit kit for recessed lighting
- Universal mounting brackets for flexible installation
- Install time typically under 3 minutes
- Lightweight white aluminum body with PMMA frosted lens
- 2,300–6,200 delivered lumens; up to 155 lm/W
- 4000K color temperature; CRI up to 90+
- 0-10V dimmable; ETL Listed; DLC Premium Qualified
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 45
- Lumens:
- 5622
- Lumen Per Watt:
- 116
- CRI:
- >90
- Finish:
- White
- ETL Listed:
- Yes
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
