Name: ILP LANCE14-23L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 16 Watt, 2170 Lumens
Brand: ILP
SKU: LANCE14-23L-U-940
Price: 148.61 USD
Availability: OutOfStock

ILP LANCE14-23L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 16 Watt, 2170 Lumens

ILP

SKU:

LANCE14-23L-U-940

$148.61

/ Each

Weight:

12.00 LBS

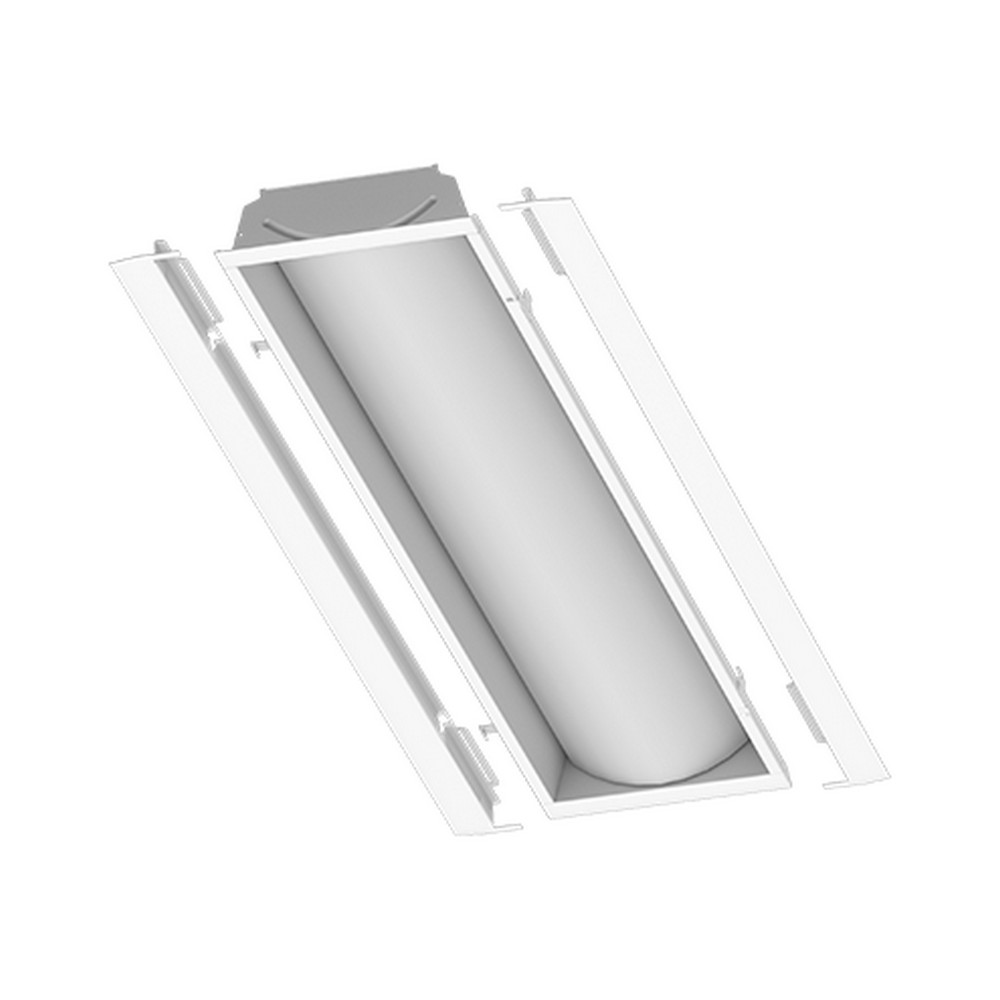

The ILP LANCE14-23L-U-940 Lance Volumetric Troffer Retrofit Kit is a one-piece, recessed lighting solution designed to upgrade existing ceiling troffers with LED performance. The unit features a lightweight aluminum body finished in matte white and a high-transmission extruded PMMA frosted acrylic lens, which help maximize light output while maintaining a compact form factor. Its universal mounting brackets are designed for swift installation, with an average setup time quoted at under three minutes, and the kit supports multiple fixture sizes (1×4, 2×2, and 2×4) to accommodate common ceiling layouts. With LED delivery ranging from 2,300 to 6,200 lumens and efficacy up to 155 lm/W, this retrofit offers strong illumination options across varied applications, including retrofit projects where a higher-performing, more energy-efficient alternative to legacy fluorescent fixtures is desired. The product also includes features useful in modern facilities, such as air return options and optional advanced wireless controls, which can contribute to improved thermal management and integrated lighting control plans. The LANCE14-23L-U-940 operates at 120–277V and is available in 4000K CCT with a high color rendering index (CRI 90+), providing a balance of color accuracy and efficiency suitable for commercial and institutional spaces. It includes a 0–10V dimmable driver and is ETL listed for UL1598C, with a DesignLights Consortium Premium qualification indicating adherence to high performance standards. The unit is backed by a standard 5-year warranty, with an optional 10-year warranty extension, and it is designed to support long service life with an estimated L70 rating exceeding 100,000 hours.

Features:

Troffer Retrofit Kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Lightweight aluminum matte white finish body
High transmission extruded PMMA frosted acrylic lens
0-10V dimmable driver
2,300–6,200 Delivered Lumens
Up to 155 lm/W efficacy
4000K CCT, CRI 90+
ETL Listed for UL1598C
DesignLights Consortium Premium Qualified

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 16
Lumens:: 2170
Lumen Per Watt:: 132
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key specifications of the ILP LANCE14-23L-U-940 Lance Volumetric Troffer Retrofit Kit?

16W LED retrofit kit operating at 120–277V with 2,170 lumens, 4000K color temperature, 90+ CRI, and 0–10V dimming. Features aluminum housing, frosted PMMA lens, and 100,000-hour rated life. ETL listed.

What mounting and installation features does this retrofit kit offer?

It is a one-piece unit with two universal mounting brackets and is designed for recessed lighting applications, with an average installation time of less than three minutes.

What finishing and materials are specified for this kit?

The housing is a lightweight aluminum body with a matte white finish, and it uses a high transmission extruded PMMA frosted acrylic lens.

Are there any control or warranty options for this product?

The kit supports 0-10V dimming and offers advanced wireless controls options. It includes a standard 5-year warranty with an optional 10-year warranty.

What sizes and lumen output range does the ILP LANCE14-23L-U-940 cover?

It is available in 1×4, 2×2, and 2×4 sizes, delivering between 2,300 and 6,200 delivered lumens depending on configuration; for this SKU, it provides 2,170 lumens at 16 watts and 4000K.
