Name: ILP LANCE14-49L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 36 Watt, 4315 Lumens
Brand: ILP
SKU: LANCE14-49L-U-940
Price: 153.8 USD
Availability: OutOfStock

ILP LANCE14-49L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 36 Watt, 4315 Lumens

ILP

SKU:

LANCE14-49L-U-940

$153.80

/ Each

Weight:

12.00 LBS

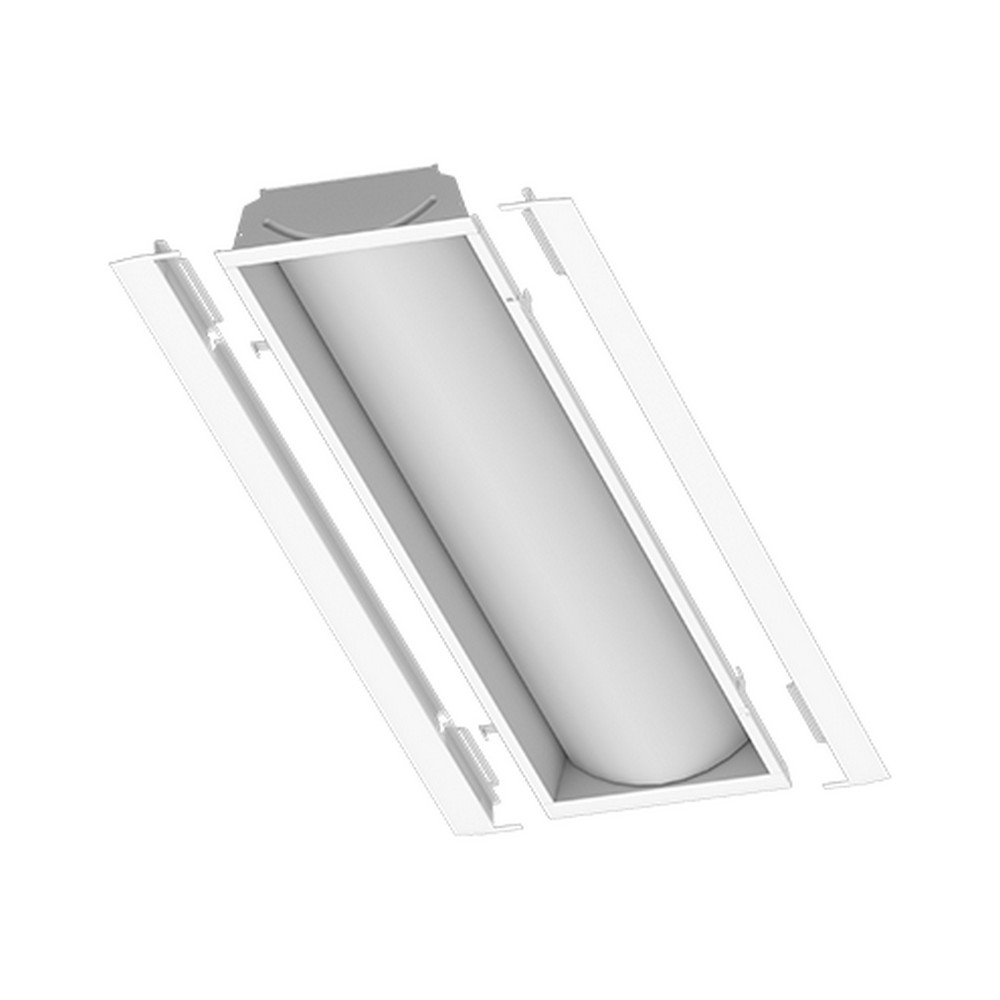

The ILP LANCE14-49L-U-940 is a versatile troffer retrofit kit designed for recessed lighting applications. This one-piece, lightweight unit combines two universal mounting brackets with a slim aluminum body and a matte white finish, delivering a clean, modern look while replacing standard troffers. A high-transmission extruded PMMA frosted acrylic lens helps optimize light distribution, contributing to strong delivered lumens and consistent color rendering from 4000K. The kit supports multiple installation options, including air return configurations and optional advanced wireless control capabilities, enabling flexible integration with existing building management and control systems.

Constructed to meet demanding uptime requirements, the LANCE14-49L-U-940 is available in 1×4, 2×2, and 2×4 configurations, offering a wide range of lumen output (2,300 to 6,200 lumens) and high efficacy up to 155 lm/W. The specified performance includes a 0-10V dimmable driver and color temperatures ranging from 3000K to 5000K, with CRI options of 80 or 90 to suit different visual needs. The unit is ETL Listed for UL1598C and carries a standard 5-year warranty with an optional 10-year extension. A calculated L70 life of over 100,000 hours supports long-term reliability in commercial or institutional spaces.

This retrofit kit is tuned for energy-conscious projects that seek an LED upgrade without a full luminaire replacement. It comes in a package that aligns with standard lighting retrofits and is suitable for installation where recessed fixtures are present. Compatibility considerations include the 120–277V input range, and the ability to select from multiple CCT and CRI options to match existing lighting schemes while maintaining compliance with applicable standards for specialty retrofit projects.

Features:

One-piece troffer retrofit kit for recessed lighting
Two universal mounting brackets for quick installs
Average install time under 3 minutes
Lightweight aluminum matte white finish
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
1x4, 2x2, 2x4 sizes available

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 36
Lumens:: 4315
Lumen Per Watt:: 119
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials or construction does the product feature?

The kit has a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens.

What are the important technical specifications for this LED light retrofit kit?

It operates at 120-277V, 4000K color temperature, 36 watts, 4315 lumens, and 119 lm/W delivered efficacy. It includes a 0-10V dimmable driver and has an average rated life of 100,000 hours.

Does this product meet any documented safety standards or listings?

It is ETL Listed for UL1598C and is DesignLights Consortium Premium Qualified Luminaire.

What sizes or configurations are available for this retrofit kit?

Available in 1×4, 2×2, and 2×4 sizes.

What installation features or accessories does it include?

It is a one-piece unit with two universal mounting brackets and claims an average install time of less than three minutes; it also offers air return options and wireless controls options.
