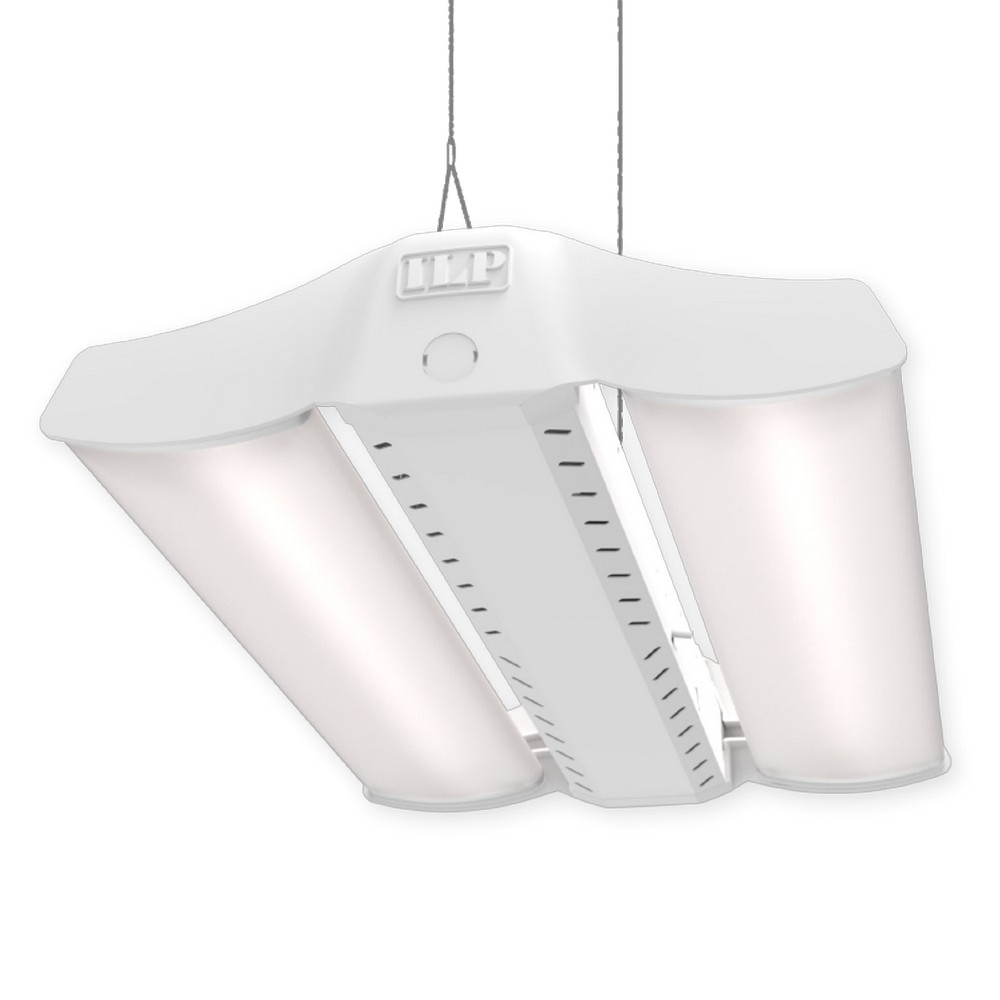

Name: ILP EDV4-60L-U-50-ND Endeavour 2.0 LED High Bay 5000K, 425 Watt, 64132 Lumens
Brand: ILP
SKU: EDV4-60L-U-50-ND
Price: 724.04 USD
Availability: InStock

ILP EDV4-60L-U-50-ND Endeavour 2.0 LED High Bay 5000K, 425 Watt, 64132 Lumens

ILP

SKU:

EDV4-60L-U-50-ND

$724.04

/ Each

Weight:

9.00 LBS

The ILP Endeavour 2.0 EDV4-60L-U-50-ND is a high bay lighting solution designed for demanding industrial environments. This 425 W luminaire delivers wide distribution with a measured output of 64,132 lumens and a color temperature of 5000 K, providing bright, neutral light suitable for critical tasks and detailed visibility. Built with an aluminum body and rigid steel channel, the unit combines durability with a streamlined silhouette. Its curved polycarbonate end caps contribute to a robust housing, while options for uplight and both wide and narrow distributions enable flexible room illumination and targeted lighting designs. The fixture includes a 0-10 V dimmable driver, offering scalable control from 100% down to 10%, and is rated for a wide ambient temperature range, including demanding conditions up to 149°F in available configurations.

In terms of reliability, the EDV4-60L-U-50-ND carries an IK10-rated construction to resist impact and a DLC Standard/DesignLights Consortium Premium qualified status, which can support energy efficiency incentives and project compliance. It is ETL Listed for Damp Location use, expanding suitability for warehouses, manufacturing floors, and other industrial spaces. The fixture is designed for straightforward installation with features such as tool-less hinged driver access and dual-point hanging options via V-clips, enabling flexible mounting from chains or cables. With an estimated L80 > 100,000 hours and a five-year warranty (with a 10-year option), this luminaire emphasizes long-term performance in continuous-operating facilities.

Features:

Sleek curved polycarbonate end caps for a streamlined profile
Aluminum body with steel channel for added rigidity
0-10V dimmable driver (100%–10%)
Wide & Narrow distributions with uplight options
V-clips provided for dual point hanging (standard)
ETL Listed for Damp Location; DLC Premium Qualified
131°F standard ambient, 149°F high ambient option

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 5000K
Watt:: 425
Lumens:: 64132
Lumen Per Watt:: 151
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Standard
Operating Temperature Range:: -40F to 122F
IP Rating:: IP5X
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key technical specifications of the ILP EDV4-60L-U-50-ND Endeavour 2.0 LED High Bay?

425W LED fixture operating at 120–277V with 64,132 lumens, 5000K color temperature, 151 lm/W efficiency, IP5X rating, and 100,000-hour rated life. ETL listed for damp locations with 5-year warranty.

What mounting and installation features does this high bay offer?

It includes V-Clips for dual point chain or cable hanging as standard and features a tool-less hinged driver access for easy maintenance.

What light quality and options are available with this fixture?

It offers 3000K–5000K CCT options, a wide and narrow distribution, uplight options to enhance full room illumination, and CRI greater than 80.

What finishes and construction details define the ENDEAVOUR 2.0 LED High Bay?

The fixture features an aluminum body with a steel channel for added rigidity and curved polycarbonate injection molded end caps, with white and black finish options.
