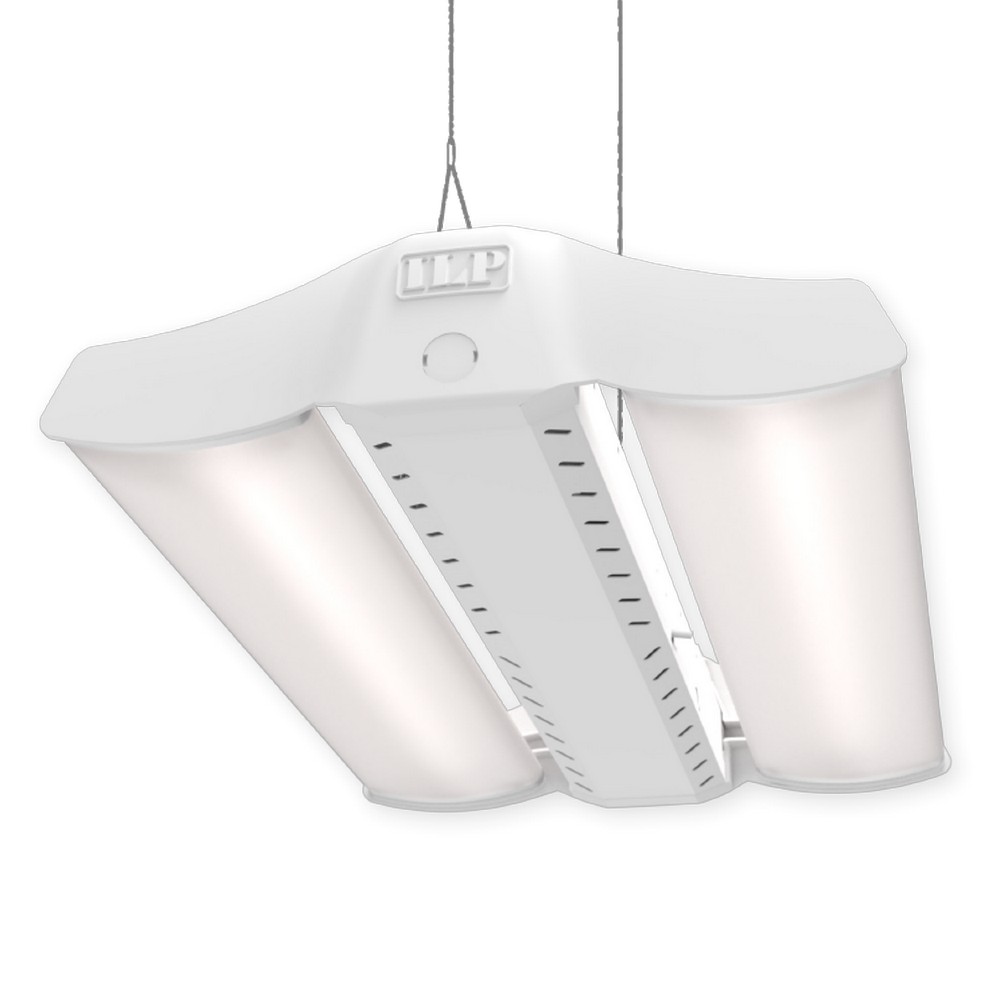

The ILP Endeavour 2.0 EDV4-100L-U-50 is a high bay LED lighting fixture designed to illuminate large indoor spaces with robust performance. Featuring a durable aluminum body and curved polycarbonate end caps, this luminaire combines rigidity with a sleek profile suitable for industrial environments. With a 644-watt input and a polarity of 120–277V, it delivers up to 99,848 lumens at 5000K, translating to a high lumen-per-watt ratio that supports wide area coverage while maintaining color accuracy.
The unit supports both wide and narrow light distributions and offers 0–10V dimming for flexible control. It includes standard U-clips for dual-point hanging and provides options for uplight, which can enhance overall room illumination by reducing shadows and improving vertical brightness. The Endeavour is engineered for demanding conditions, evidenced by its IK10-rated durability and an operating temperature range that accommodates extreme ambient environments. It is ETL listed for damp locations and qualified as a DesignLights Consortium Premium luminaire, which can influence energy and performance considerations in project specifications.
Designed for practical, serviceable operation, the fixture uses tool-less hinged access to the driver for straightforward maintenance. It is UL-listed and supported by a warranty program of 5 years, with a 10-year option available. The 5000K color temperature provides a daylight-like appearance suitable for spaces such as warehouses, manufacturing floors, and large assembly areas where consistent illumination and reliable performance are essential. When selecting this fixture, verify voltage compatibility, ambient temperature constraints, and mounting arrangement to ensure it meets project needs.
Features:
- Sleek curved polycarbonate end caps
- Aluminum body with steel channel for rigidity
- Tool-less hinged driver access
- Wide & narrow light distributions
- V-clips for dual point hanging (standard)
- Uplight options for full room illumination
- 0-10V dimmable driver
- ETL Listed for Damp Location
- DesignLights Consortium Premium Qualified
- CRI >80; L80 >100,000 hours
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 644
- Lumens:
- 99848
- Lumen Per Watt:
- 155
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Operating Temperature Range:
- -40F to 122F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
