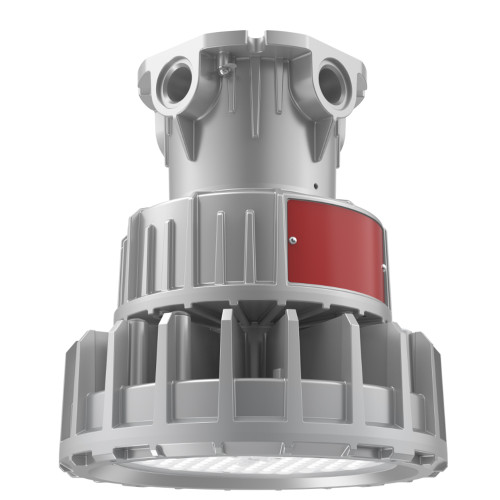

The SOL-7-LV-C-120-7-NPT-PM-5Y-S is a high-output, explosion-protected LED luminaire designed for hazardous locations. This pendant-mount version delivers up to 9,800 lumens at a 5,000 K color temperature from a 70 W class LED array, with a typical efficacy around 140 lm/W. It is configured for use in Class I and II, as well as Class III environments, and is suitable for indoor or outdoor installations where robust protection is required. The housing relies on a low copper aluminum alloy with a specialized powder coating and stainless steel components treated for corrosion resistance, supporting durable performance in challenging industrial settings. The fixture is designed with a dedicated heat-management approach that separates the LED chips from the driver cavity to enhance thermal dissipation and longevity, which helps maintain lumen output over time in demanding conditions.
Features:
- IP66 and IK10 protection for durable, reliable operation
- 70W LED with 9800 lumens at 5000K
- Input voltage: AC120-277V, AC277-480V; 50/60Hz
- 1-10V dimming; DALI control optional
- Multiple mounting options: Pendant, Ceiling, Wall, Trunnion, 25° Stanchion
- Wildlife-friendly for coastal areas
- Quick connection wiring for faster installation
- Wattage:
- 70W
- Lumens:
- 9800
- Lumens Per Watt:
- 140
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-65 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
