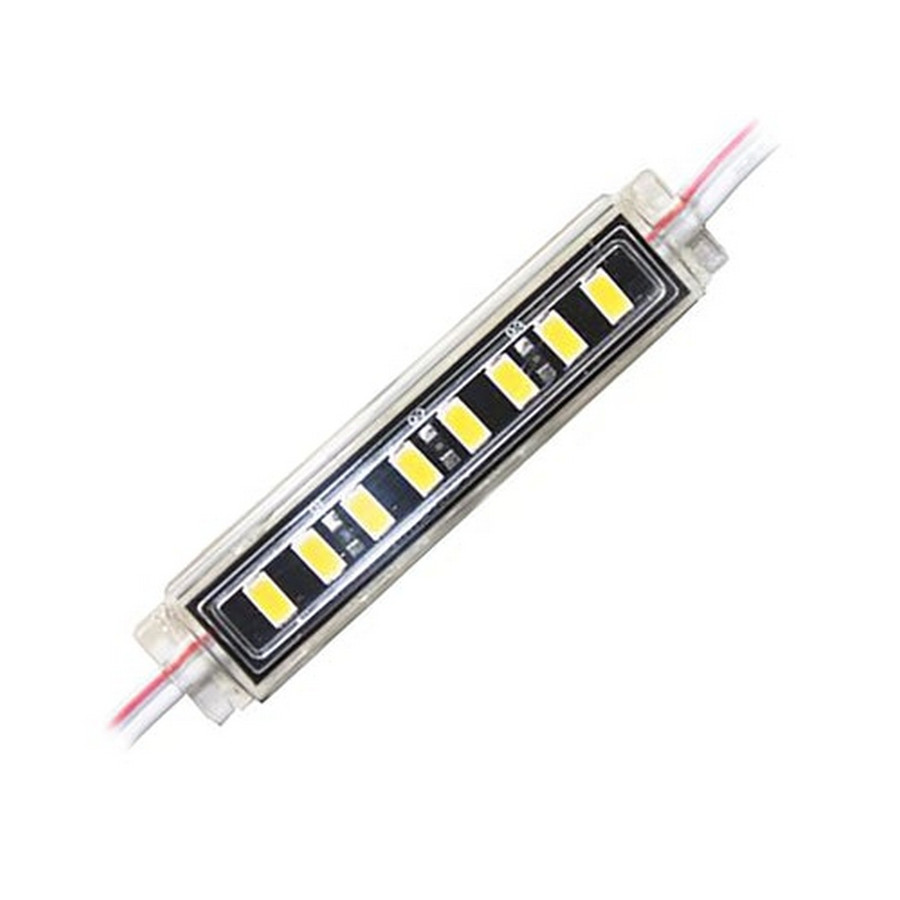

The Beyond LED 153701 LED Waterproof Module is a compact, low-power lighting solution designed for signage applications, particularly medium to large channel letters. Each module operates at 24V DC and delivers bright white illumination suitable for architectural and retail signage when paired across longer runs. The compact module is designed for straightforward installation in tight spaces and is compatible with thicker, larger channel letter configurations where a uniform light source is required.
Constructed with an aluminum housing and an LED PCB, the modules are rated IP68 for water resistance, supporting outdoor or humid environments common in exterior signs. The UL-listed module provides documented safety compliance, and the 5-year warranty offers long-term assurance for sign installations. With a 6500K color temperature and a beam angle of 120 degrees, these modules provide broad, even coverage across sign faces, while their 0.96W per module and up to 164–170 lumens per module performance indicate efficient operation with a high lumen-per-watt rating for their class. The rated current per module is 41.6 mA, reflecting a low-power design suitable for large installations fed from a 24V source.
Typical applications include new construction or retrofit projects where linear LED modules are used to illuminate channel letters. The product ships in packs of 50 modules, facilitating scalable installation while maintaining consistent color and brightness across runs. When planning installations, consider the 24V DC input requirement, the IP68 water-resistance, and the need for appropriate mounting hardware to ensure reliable operation in the chosen signage environment.
Features:
- 0.96 Watt per module
- Up to 164 lumens per module
- 6500K color temperature
- DC 24V input
- 120° beam angle
- IP65 rated; aluminum housing
- UL Listed; 5-year warranty
- Input Power:
- 0.96W
- Color Temperature:
- 6500K
- Lumens:
- Up to 164LM
- Lumen Efficacy:
- Up to 170LM/W
- Input Voltage:
- DC24V
- Safety Report:
- UL Listed
- Warranty:
- 5 Years
- Rated Current per Module:
- 41.6mA
- Housing:
- Aluminum PCB board
- Housing Color:
- White
- IP Rating:
- IP65
- Pack Quantity:
- 50/Pack
- Package Size:
- Pack
