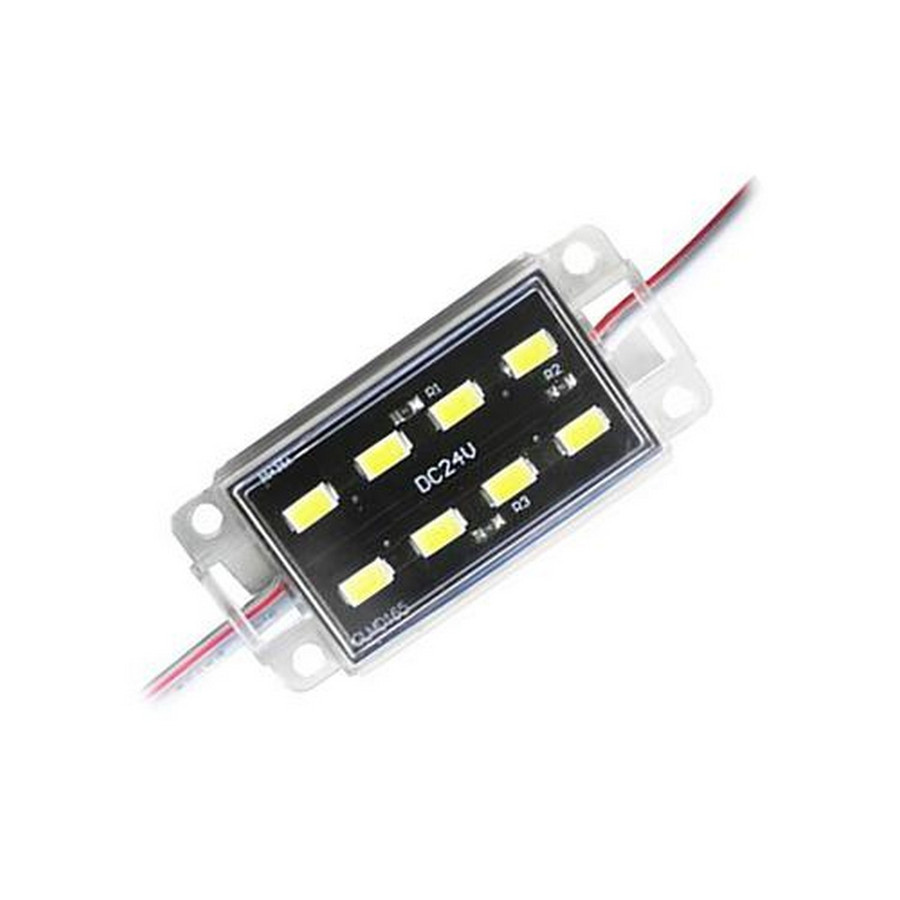

The Beyond LED 153702 LED Waterproof Module is a compact, high-efficiency lighting module designed for signage applications, including medium to large channel letters. Packaged as a 50‑unit bundle, each module is rated for 24 V DC operation and is suited for retrofits or new installations where reliable, long‑term illumination is required. The modules are constructed to withstand outdoor signage environments, featuring an aluminum PCB board housing and a white housing color that contributes to consistent light output across the sign face.
Features:
- Up to 172 LM/W lumen efficacy
- 1.44W per module
- Specially designed for thicker large channel letters
- 120-degree beam angle
- IP65 rated for protection against dust and water jets
- 24V DC input
- UL Listed
- 5-year warranty
- Input Power:
- 1.44W
- Color Temperature:
- 6500K
- Lumens:
- 248Lm
- Lumen Efficacy:
- Up to 172LM/W
- Input Voltage:
- DC24V
- Safety Report:
- UL Listed
- Warranty:
- 5 Years
- Rated Current per Module:
- 60.0mA
- Housing:
- Aluminum PCB board
- Housing Color:
- White
- IP Rating:
- IP65
- Pack Quantity:
- 50/Pack
- Package Size:
- Pack
