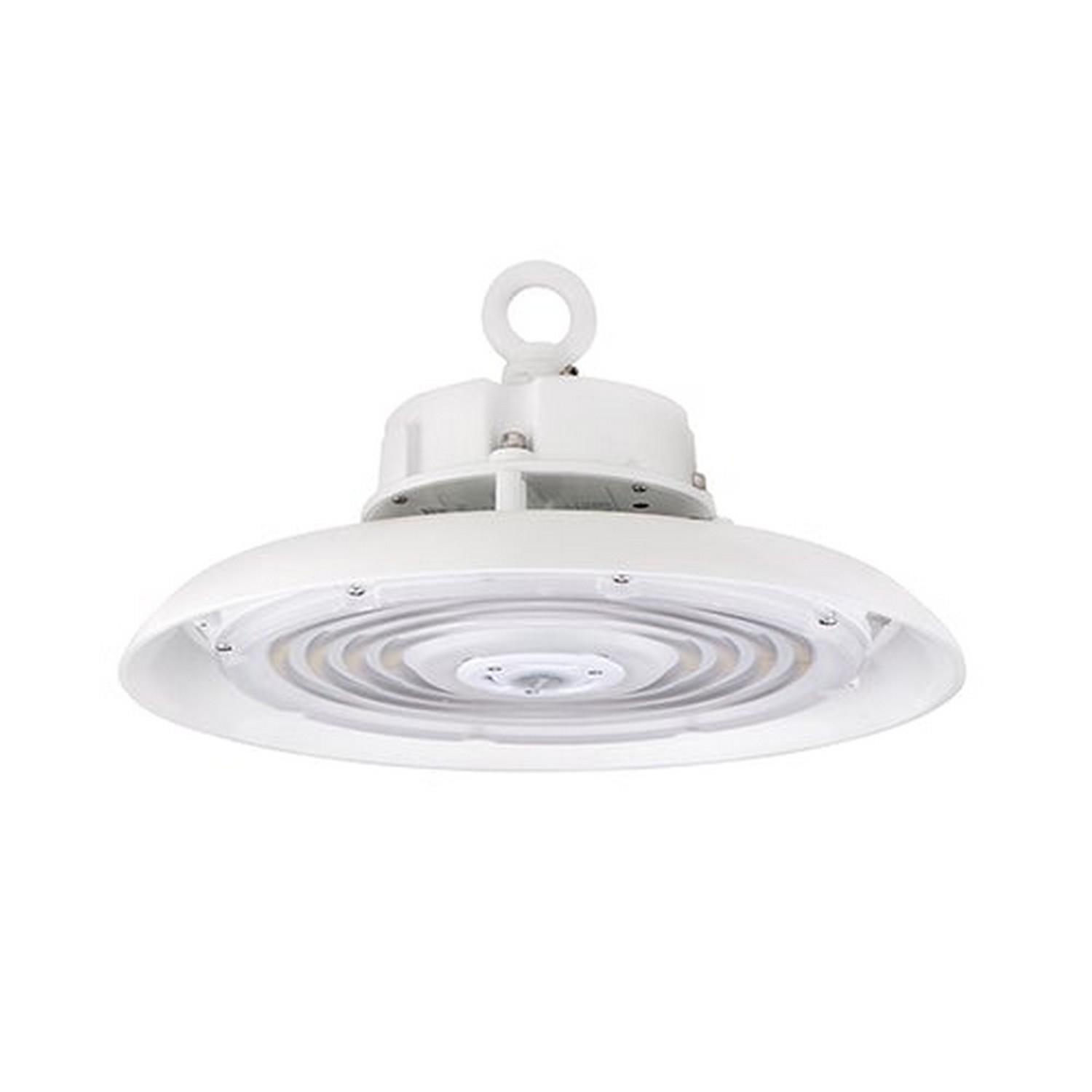

The Beyond LED Technology 153500 LED UFO Fixture is a high-output, ceiling-mounted lighting solution designed to illuminate large spaces such as warehouses, gymnasiums, manufacturing floors, and outdoor canopies. Delivering 21,900 lumens at 5,000 Kelvin, this 150-W LED high-bay model provides bright, neutral-white illumination suitable for task lighting and general area visibility. The design centers on an ultra-thin, die-cast aluminum housing finished in white, pairing a compact form with robust thermal performance for sustained operation.

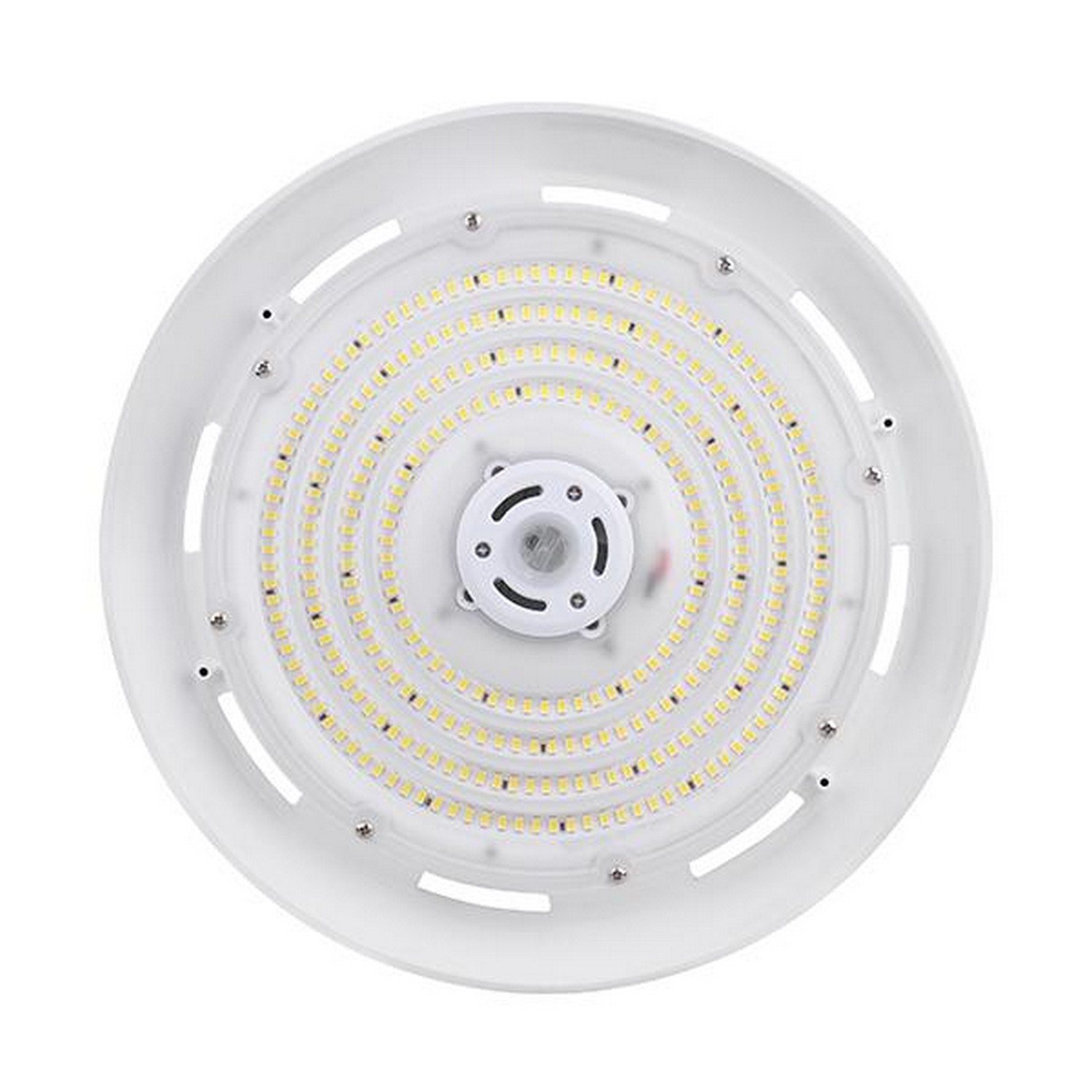

Key construction and features include a higher efficacy configuration with up to 145 lumens per watt, a 0-10V dimming capability for compatible control schemes, and plug-and-play practicality with an integrated driver interface that simplifies maintenance and replacement. The fixture is IP65 rated to resist dust and moisture intrusion, and it comes with 4 kV surge protection for electrical robustness in challenging environments. The LED array uses SMD2835 diodes, and the unit is UL and DLC listed, helping support compliance and commissioning processes in various facilities.
Practical considerations include universal voltage compatibility featuring 100–277 VAC (with 480 VAC optional), enabling flexible installation across different power systems. Optional enhancements such as motion sensor mounting and emergency-backup configurations offer additional control and resilience for spaces with variable occupancy or power reliability concerns. When planning installation, note the 5-year warranty and the need for appropriate mounting and electrical connections aligned with the product’s IP65 rating and listed electrical parameters.
Features:
- Up to 145 lumens per watt
- Ultra-thin, sleek design
- 0-10V dimming capability
- Plug and Play Motion Sensor option
- IP65 rated for protection against dust and water
- Optional emergency backup
- Universal input 100-277VAC with optional 480VAC
- UL & DLC Listed
- Input Power:
- 150W
- Color Temperature:
- 5000K
- Lumen:
- 21900Lm
- Lumen Efficacy:
- Up to 145LM/W
- CRI:
- 80
- IP Rating:
- IP65
- Safety Report:
- UL & DLC Listed
- Input Voltage:
- 100-277VAC50/60Hz
- LED Type:
- SMD2835
- Housing:
- Die-cast aluminum
- Housing Color:
- White
- Warranty:
- 5 Years
- Package Size:
- Each
