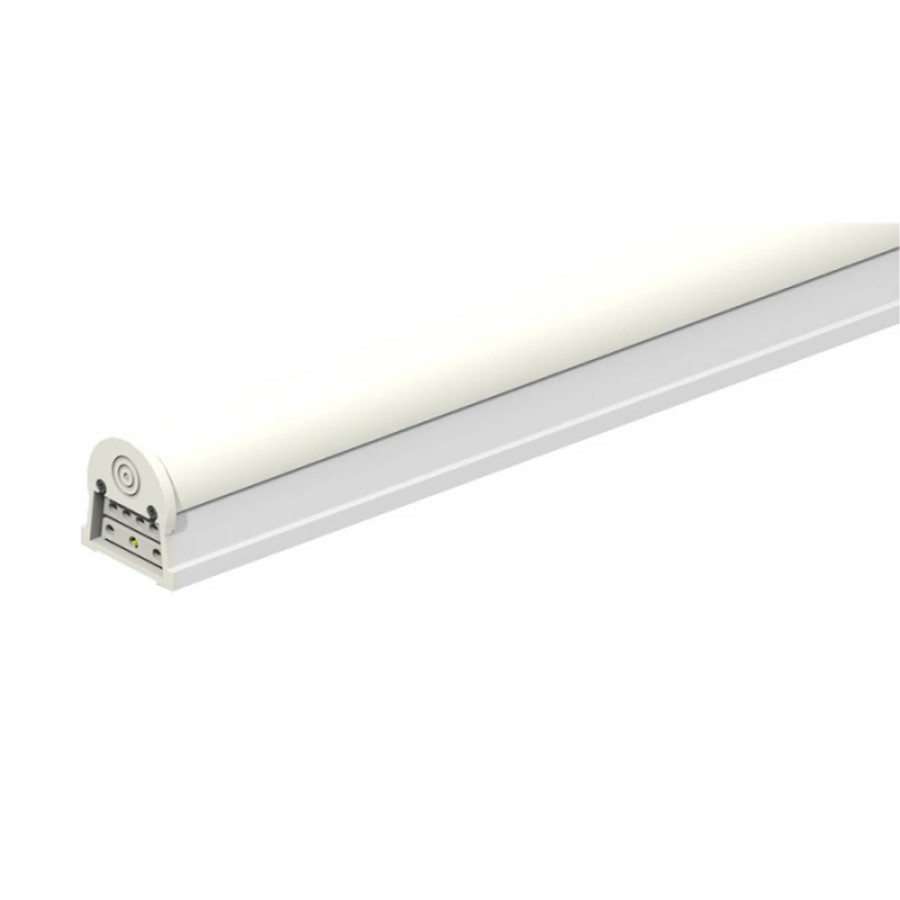

The Light Efficient Design linear LED light bar transformer is an all-in-one option for your linear commercial or residential illumination needs. They are ETL and DLC listed to work both as a new fixture for under cabinet, stairway, coves and ceilings as well as a retrofit option for your outdated fluorescent linear high bay, wrap, vapor tight, strip or troffer fixtures. Each light bar is both wattage/lumen selectable and CCT-selectable, allowing for a variety of lumen output and color temperature combinations to choose from before or after installation. Connect up to 40 fixtures together for a continuous run using either the available linking cables or seamless connectors (sold separately), and can be surface mounted or suspension mounted to suit your preference. Watch the videos below to learn more.
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- 120-277V operation
- 0-10V dimmable
- CCT-selectable: choose between warm-neutral 35K, neutral 40K or daylight 50K white light color temperatures
- Wattage selectable: choose between 10 watt, 15 watt or 25 watt levels
- Link up to 40 fixtures together using linking cables or seamless connectors (sold separately)
- Surface mount (2x surface mount magnetic clips with screws included) or suspended mount (when using suspended in-line bracket kit - sold separately)
- Magnetic backing allows for quick and easy installation and removal
- Optional emergency battery backup driver available
- Damp location rated
- DLC Premium
- Operating temp: -13º to 140º F
- 100,000 hour rated
Downloads:
Product Specifications:
| Brand | Light Efficient Design |
|---|---|
| Under Cabinet Type | Line Voltage, Light Bars, Linear Linkable, CCT Tunable |
| DLC Product ID | PCW0MQPB |
| Manufacturer Part Number | RP-LBI-G1-4F-15W-40K-WC |
| UPC | 844006024079 |
| Lumens | 3,653 Lumens |
| Lumens Per Watt | 146.12 |
| Wattage | 25 Watts |
| Input Voltage | 120-277V |
| Dimmable | 0-10V |
| Color Temperature | 3500K, 4000K, 5000K |
| Color | White |
| Rated Hours | 100,000 Hours |
| Min Operating Temp | -13 Degrees F |
| CRI | 80+ |
| Special Features | CCT Selectable, Wattage Selectable |
| Length | 43.3" |
| Width | 1.2" |
| Height | 1.2" |
| Package Size | Each |
- Brand:
- Light Efficient Design
- Under Cabinet Type:
- Line Voltage, Light Bars, Linear Linkable, CCT Tunable
- DLC Product ID:
- PCW0MQPB
- Manufacturer Part Number:
- RP-LBI-G1-4F-15W-40K-WC
- UPC:
- 844006024079
- Lumens:
- 3,653 Lumens
- Lumens Per Watt:
- 146.12
- Wattage:
- 25 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3500K, 4000K, 5000K
- Color:
- White
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -13 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Wattage Selectable
- Length:
- 43.3"
- Width:
- 1.2"
- Height:
- 1.2"
- Package Size:
- Each
