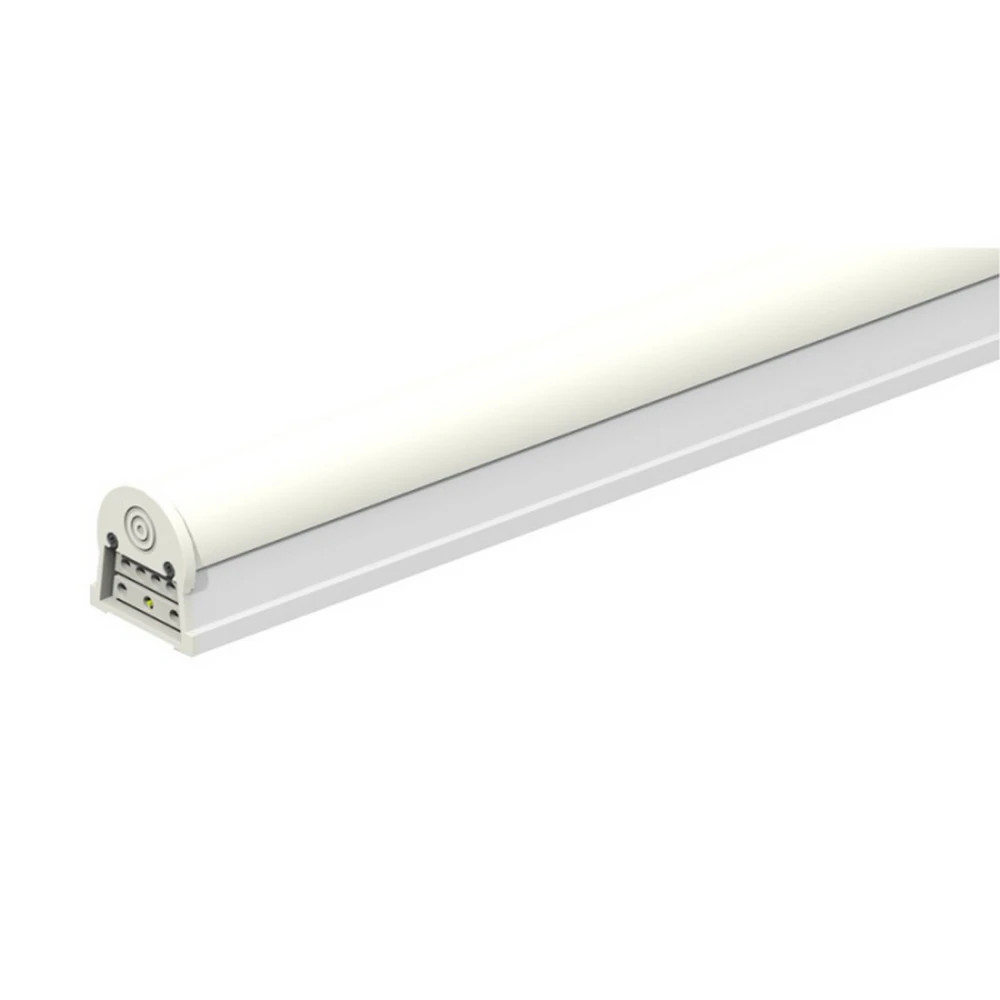

The Light Efficient Design RP-LBI-G1-4F-15W-27K-WC2 is a versatile linear LED light bar designed for both new installations and retrofits in commercial and residential settings. It provides selectable wattage and color temperature, enabling you to tailor brightness and ambiance before or after install. With 120-277V operation and 0-10V dimming, this fixture can integrate into a variety of control schemes while delivering consistent performance across linked runs. The unit supports up to 40 fixtures in a continuous chain when used with linking cables or seamless connectors, facilitating seamless long runs for under-cabinet, stairwell, coves, or ceiling applications.
Constructed for flexible mounting, the light bar offers surface mount with included magnetic backing for quick installation or suspension mounting with a separate bracket kit. The design is damp location rated and compatible with DLC standards, helping it qualify for efficiency-based incentives where applicable. An emergency battery backup driver is available as an option, and the fixture is rated for up to 100,000 hours of operation, reflecting a long service life in demanding environments.

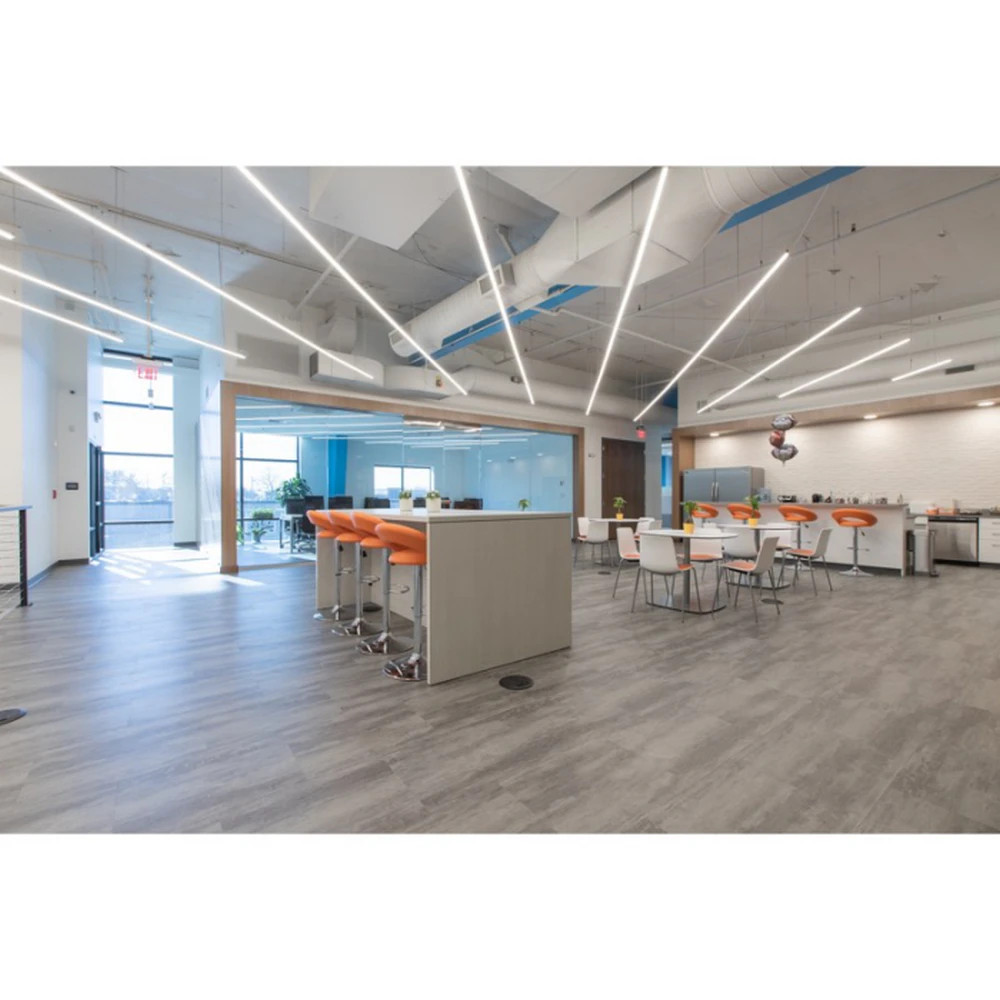

Operational versatility is a key feature: you can choose CCT options of 2700K, 3000K, or 3500K and adjust wattage to 10, 15, or 25 watts to match space requirements and energy goals. The fixture is compatible with standard wiring and mounting practices for line-voltage LED linear bars, and its construction supports both retrofit and new-construction projects, making it suitable for tasks such as under-cabinet lighting, coves, or utility ceilings where a low-profile, reliable LED solution is desired.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-selectable: 2700K / 3000K / 3500K
- Wattage selectable: 10W, 15W, or 25W
- Link up to 40 fixtures with linking cables or seamless connectors
- Surface mount with magnetic clips
- Suspended mounting option available
- Damp location rated
- 100,000 hour rated life
- Brand:
- Light Efficient Design
- Under Cabinet Type:
- Line Voltage, Light Bars, Linear Linkable, CCT Tunable
- DLC Product ID:
- P84SKJGB
- Manufacturer Part Number:
- RP-LBI-G1-4F-15W-27K-WC2
- UPC:
- 844006024840
- Lumens:
- 3,400 Lumens
- Lumens Per Watt:
- 136
- Wattage:
- 25 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 2700K, 3000K, 3500K
- Color:
- White
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -13 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Wattage Selectable
- Length:
- 43.3
- Width:
- 1.2
- Height:
- 1.2
- Package Size:
- Each
