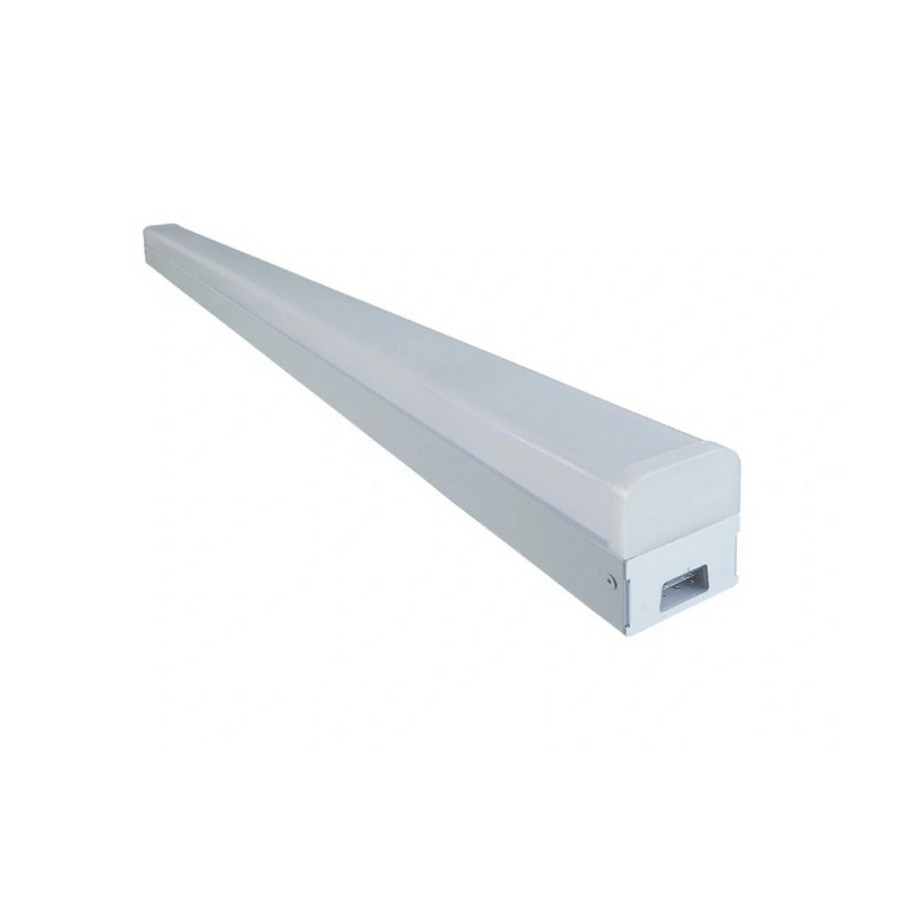

The RP-LBIMAX-4F-48W-40K-WC is a 4-foot LED linear fixture designed for flexible commercial illumination. It delivers up to 6,240 lumens with an 80+ CRI, and its SuperFLEX technology allows field-selectable wattage and color temperature, enabling a single SKU to cover a range of lighting needs. The fixture operates on universal 120-277V supply and supports 0-10V dimming, making it suitable for varied installations and control strategies. A continuously connected system is possible by linking multiple units—up to 20 units at 120V or 40 units at 277V—facilitating seamless row lighting in aisles, retail corridors, and open workspaces. The design supports surface, ceiling, or suspended mounting and includes v-hooks for installation versatility.
Constructed as an integrated LED fixture, the RP-LBIMAX-4F-48W-40K-WC is rated for a long service life (50,000 hours) under typical operating conditions. It is built to perform across a wide temperature range from -4°F to 113°F, which helps maintain consistent light output in environments that experience temperature swings. The fixture’s selectable wattage (30W/35W/40W/48W) and selectable CCT (3000K/3500K/4000K/5000K) enable precise tuning of light levels and color rendering without the need for additional SKUs or parts, supporting efficient specification and stocking for facilities.
This unit is cETLus Listed and is designed for commercial, retail, manufacturing, warehouse, and display applications where dependable, adaptable lighting is important. When planning installations, consider that a single power source can supply multiple fixtures through seamless connectors, simplifying wiring and reducing installation complexity while maintaining consistent color and brightness across the run.
Features:
- Field-selectable wattage: 30W/35W/40W/48W
- Selectable CCT: 3000K/3500K/4000K/5000K
- Up to 6,240 lumens, 80+ CRI
- 120-277V universal voltage with 0-10V dimming
- Link up to 20 fixtures at 120V or 40 fixtures at 277V
- Seamless connectors for single-power-source operation
- Surface, ceiling, or suspension mounting with included v-hooks
- -4°F to 113°F operating range and 50,000 hour rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- RP-LBIMAX-4F-48W-40K-WC
- UPC:
- 844006085551
- Lumens:
- 6,240 Lumens
- Wattage:
- 48 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K, 5000K
- Lamp / Base Type:
- Integrated LED
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 120 Degrees
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Wattage Selectable
- Length:
- 48
- Width:
- 2.5
- Height:
- 3
- Package Size:
- Each
