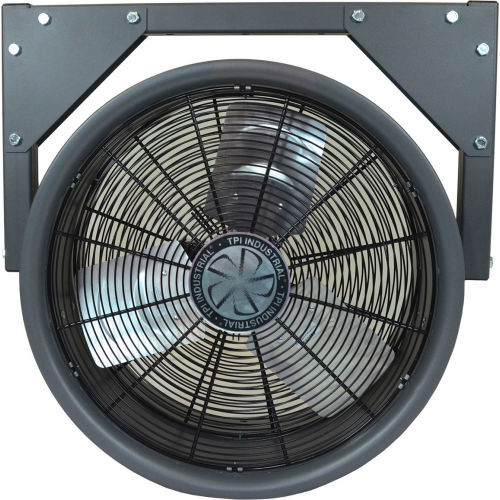

The TPI HV30208-240V is a high-velocity, 30-inch industrial air circulator designed to move large volumes of air in demanding environments. Its drum-style form factor and direct-drive motor deliver strong airflow with a rated 9,000 CFM, helping to ventilate warehouses, manufacturing floors, docks, and job sites where moving heat, fumes, or stale air is essential. The unit features a 20-gauge steel housing finished in a gray epoxy textured powder coat, offering durability in industrial settings, while a TEAO (Totally Enclosed Air Over) motor with automatic thermal protection targets reliable operation under varying loads. The assembly includes aluminum blades and a 3-blade configuration to produce a robust air throw and broad dispersion.
Distinguishing construction details include a yoke mounting bracket that provides five adjustable settings across a 15-degree range, enabling stance flexibility to direct airflow where needed. Front and rear grills are OSHA-approved, and the entire unit is made in the USA with a limited two-year warranty. The design allows for multiple mounting options, including beam, ceiling, column, or wall installations, with optional brackets sold separately to fit the space constraints of busy facilities. Power is supplied at 240V, 60 Hz, with a 1-phase electrical supply and a current draw compatible with the unit’s 746 W input and 4.7 A operating current.
This high-velocity circulator is well-suited for situations requiring rapid air movement over large areas, such as cooling heavy equipment, exhausting warm air from workstations, or improving ventilation in loading zones. Practical considerations include the non-oscillating operation, a heavy-duty steel housing, and a user-friendly yoke adjustment that helps position airflow precisely. When planning installation, consider the available mounting options and ensure electrical supply matches the unit’s 240V, 1-phase specification, as well as any site-specific mounting clearances and maintenance access needs.
Features:
- 30 in Drum Fan with 9000 CFM air flow
- Yoke bracket with five adjustable settings
- 20 gauge steel housing with OSHA front/rear grills
- Direct-drive aluminum blades, 1 HP, 208/240 V, 60 Hz
- Mounting versatility: beam, ceiling, column, or wall (brackets sold separately)
- Made in USA; limited 2-year warranty
- Width:
- 38-7/8 in
- Depth:
- 16 in
- Height:
- 39 in
- Weight:
- 85 lbs
- Gauge:
- 20
- Cooling Area:
- 620 in²
- Fan Diameter:
- 30 in
- Max Ambient Temperature:
- 115 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- TEAO
- Mounting Location:
- Beam, Ceiling, Column, or Wall
- Wattage:
- 746 W
- Material:
- Aluminum
- Phase:
- 1
- Blade Type:
- Aluminum
- Manufacturers Part Number:
- HV30208-240V
- Brand:
- TPI
- Type:
- Drum Fan
- RPM:
- 1700 rpm
- CFM:
- 9000 CFM
- Horsepower:
- 1 HP
- Color:
- Gray
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 4.7 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 208 / 240 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- High Velocity Air Circulator
- Power Cord Type:
- Hard Wired
- Housing Material:
- Steel
- Decibels:
- 82
- Package Size:
- Each
