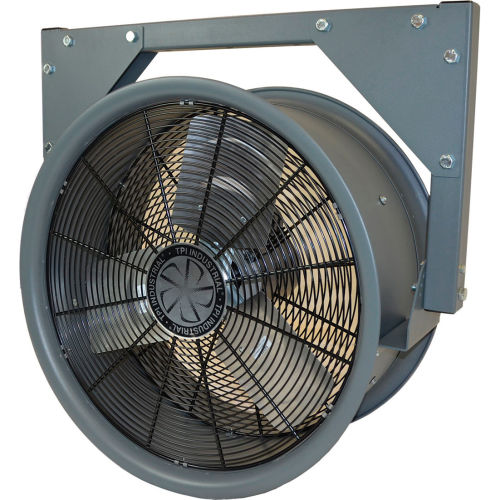

The TPI HV24277V is a 24-inch high-velocity air circulator designed to move large volumes of air in industrial settings. Built with a 20-gauge steel housing and a durable gray epoxy textured powder coat, this unit delivers robust airflow with a direct-drive 1/2 HP TEAO (Totally Enclosed Air Over) motor. The fan operates at 277 V, single phase, and provides a high-performance throughput suitable for warehouses, manufacturing floors, dock areas, and other industrial workspaces where rapid air circulation helps with ventilation, cooling, and exhaust distribution. Its drum-style design features three aluminum blades and a non-oscillating configuration to maintain consistent, high-velocity airflow from a fixed orientation.
Key construction details include a yoke mounting bracket that offers five adjustable settings at 15-degree increments, enabling targeted airflow directions to suit changing work zones. Both front and rear grills are OSHA-approved, contributing to safer operation in active facilities. The unit is designed for hard-wired installation and can be mounted via beam, ceiling, column, or wall positions with optional brackets sold separately. A 2-year limited warranty provides coverage for manufacturing defects under normal use. Made in the USA, this circulator emphasizes local production alongside industrial reliability.
Typical use scenarios involve moving/heavy air across large open spaces or around equipment where temperature or contaminant control is a concern. At 373 watts and 58 pounds, plan for appropriate electrical and mounting support, and consider the 349–116 Fahrenheit ambient tolerance indicated by the product’s specifications for stable operation. When selecting installation locations, note the unit’s 24-inch blade diameter and 33-1/4 inch width to ensure adequate clearance and proper ducting or open-area dispersion. The product is listed as a high-velocity air circulator, with performance measured at up to 5,290 CFM and 1725 RPM, suitable for industrial environments that require substantial air movement without oscillation.
Features:
- 20 Gauge steel housing for durability
- Yoke bracket with five adjustable settings for versatile mounting
- OSHA-approved front and rear grills for safety
- High-velocity airflow with 5,290 CFM
- 277 V, 1 phase, 1/2 HP motor (TEAO)
- Made in USA with a 2-year limited warranty
- Optional wall/column mounting brackets available (sold separately)
- Width:
- 33-1/4 in
- Depth:
- 13-1/2 in
- Height:
- 31-3/8 in
- Weight:
- 58 lbs
- Gauge:
- 20
- Cooling Area:
- 400 in²
- Fan Diameter:
- 24 in
- Max Ambient Temperature:
- 115 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- TEAO
- Mounting Location:
- Beam, Ceiling, Column, or Wall
- Wattage:
- 373 W
- Material:
- Aluminum
- Phase:
- 1
- Blade Type:
- Aluminum
- Manufacturers Part Number:
- HV24277V
- Brand:
- TPI
- RPM:
- 1725 rpm
- Type:
- Drum Fan
- CFM:
- 5290 CFM
- Horsepower:
- 1/2 HP
- Color:
- Gray
- Hertz:
- 60 Hz
- Drive Type:
- Direct Drive
- Amperage:
- 2.1 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 277 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- High Velocity Air Circulator
- Power Cord Type:
- Hard Wired
- Housing Material:
- Steel
- Decibels:
- 80
- Package Size:
- Each
