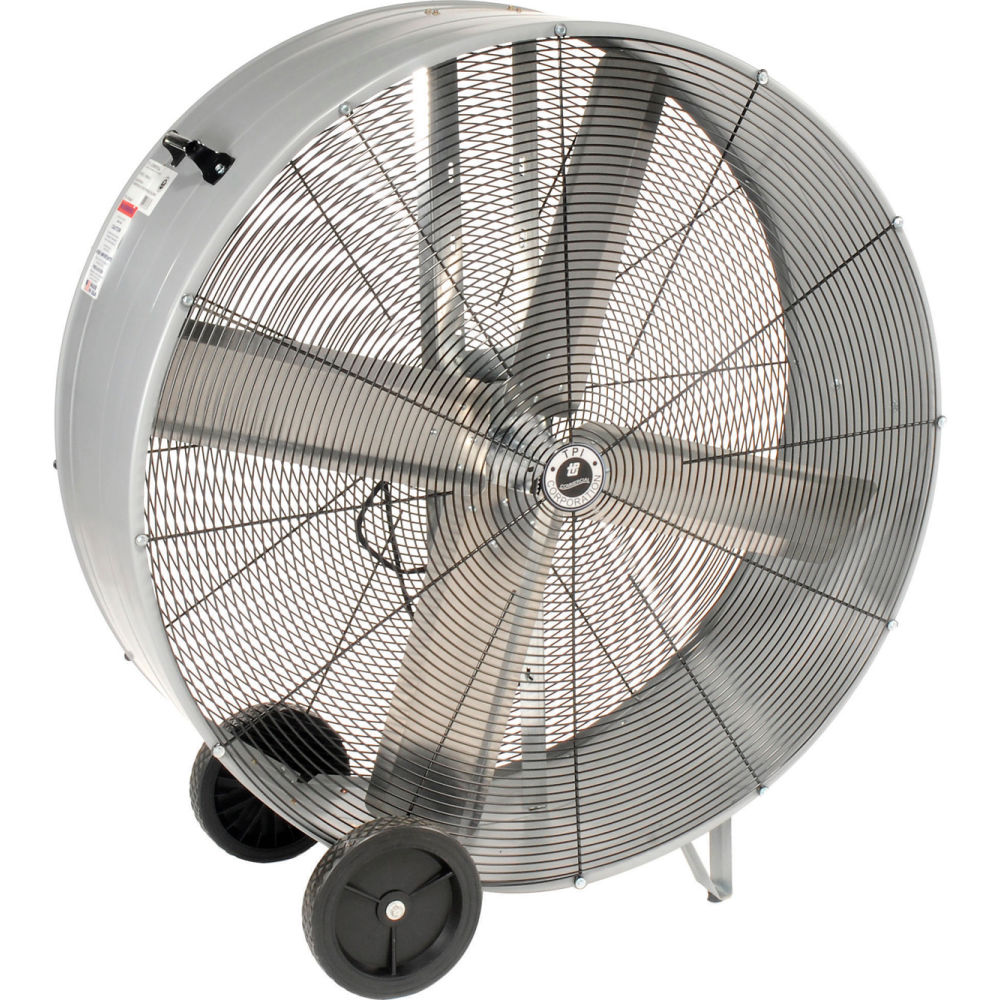

The TPICPB42B is a portable industrial drum fan designed to move substantial air for workshop, manufacturing, and distribution environments. This 42-inch diameter blower delivers high-volume airflow with a stated 7600 CFM capacity, suitable for cooling large spaces or exhausting heat buildup near equipment. The unit rides on 7-inch rubber wheels and includes a pull handle for straightforward relocation, and its belt-drive, 1/2 HP motor configuration supports steady performance at the 1050 RPM operating speed. A rocker power switch provides simple on/off control, while the 8-foot SJT 3-conductor cord keeps power connections flexible for temporary or semi-permanent placements.
Construction details emphasize durability and safety: the blower uses a powder-coated 20-gauge steel housing to resist corrosion and wear in industrial settings. Four aluminum blades are paired with spiral wire safety guards to balance efficiency with operator protection. The design is intended for plug-in operation on 120 V, 60 Hz power, with a non-oscillating orientation suitable for directing airflow in a fixed corridor or line of equipment. The unit is listed for UL and cUL standards and carries a 1-year limited warranty, reflecting basic assurances of performance and workmanship within typical industrial-use expectations.
Practical considerations for buyers include the unit’s fixed orientation due to its drum-fan configuration and free-standing mounting. With a maximum ambient temperature rating of 100°F, it’s best suited for indoor environments where heat or fumes require rapid air movement but not extreme outdoor exposure. The included cord length and mobility features enable temporary setups in maintenance, cleanup, or process areas without requiring additional mounting hardware. This model is compatible with standard 120 V power sources and belt-drive construction, which influences maintenance timing and routine bearing lubrication expectations.
Features:
- Permanently Lubricated Ball Bearing Type Motors
- Powder Coated 20 Gauge Steel Housing
- Includes Spiral Wire Safety Guards
- 4 Aluminum Blades
- 2-Speed, 1-Phase Motor
- Rocker Power Switch
- 8' SJT 3-Conductor Cord
- Width:
- 46 in
- Depth:
- 15 in
- Height:
- 45 in
- Weight:
- 93 lbs
- Cord Length:
- 8 ft
- Area Of Coverage:
- 12,000 ft²
- Fan Diameter:
- 42 in
- Max Ambient Temperature:
- 100 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 2
- Number of Blades:
- 4
- Motor Type:
- OPD
- Mounting Location:
- Free Standing
- Material:
- Steel
- Phase:
- 1
- Manufacturers Part Number:
- CPB42B
- Blade Type:
- Aluminum
- Brand:
- TPI
- RPM:
- 1050 rpm
- Type:
- Drum Fan
- CFM:
- 76006700 CFM
- Horsepower:
- 1/2 HP
- Color:
- Black / Gray / Silver
- Hertz:
- 60 Hz
- Amperage:
- 6.5 A
- Drive Type:
- Belt Drive
- Voltage:
- 120 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Package Quantity:
- 1
- Description:
- Industrial Drum Fan
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 70
- Package Size:
- Each
