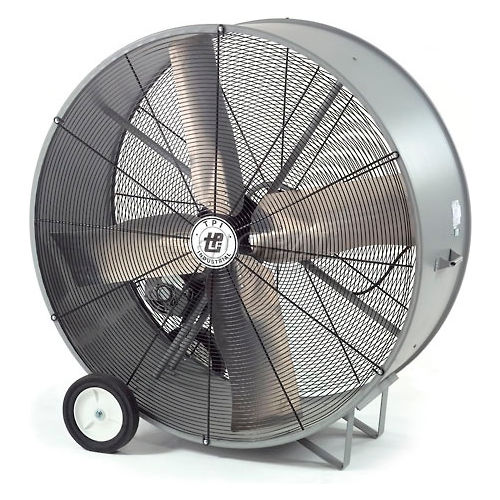

The TPIPB48BHL is a portable industrial drum fan designed to move large volumes of air in demanding environments. With a rated performance of 14,400 CFM and a single-phase 1 HP motor, this unit is suited for ventilation tasks that require robust air displacement while remaining mobile on its own 10" hard rubber wheels and integrated pull handle. The blower features a durable 48" diameter fan assembly built with aluminum blades and a corrosion-resistant polyethylene housing, which helps resist denting and corrosion in harsh work settings. The design prioritizes reliability in hazardous or demanding spaces while providing straightforward, field-ready operation.
Construction details emphasize long-term service in challenging locations: permanently lubricated ball bearing motors reduce maintenance needs, and the explosion-proof Class 1, Group D and Class 11, Groups E, F, and G rated motor and external junction boxes support safer operation in potentially hazardous environments. The unit’s non-oscillating drum configuration and belt-drive transmission contribute to steady airflow delivery at a fixed speed, with a documented operating speed around 390 RPM. The housing’s high-density polyethylene construction paired with spiral wire safety guards offers protection for both the fan and nearby personnel during use.
For practical use, this portable blower is suitable for temporary ventilation, dust control, or cooling tasks in industrial facilities where large volumes of air are needed without permanent installation. It ships as a single unit and does not include a power cord, aligning with typical hazardous-location equipment configurations that require field wiring to appropriate power sources. Typical maintenance considerations include periodic checks of belt tension and motor lubrication due to the permanently lubricated bearings, along with routine inspection of the aluminum blades and guards to ensure unobstructed airflow and safety during operation.
Compatibility and sizing notes: this model is a 1-phase, 120/240 V unit with a 1 HP rating and a 59 in width, 30 in depth, and 55.5 in height footprint. It weighs 155 lbs and uses a 48 in fan diameter with a maximum ambient temperature rating of 100 °F. The product is UL Listed and cETL Listed, aligning with recognized electrical-safety standards, and carries a limited 1-year warranty from the manufacturer. For installation or service, refer to the external junction box configuration and ensure appropriate hazardous-location wiring practices are followed.
Features:
- Permanently Lubricated Ball Bearing Type Motors
- 4 Aluminum Blades
- Portable Design with Pull Handle
- 10" Hard Rubber Wheels for Easy Mobility
- Meets OSHA Standards
- UL Listed and cETL Listed
- 1-Year Limited Warranty
- Width:
- 59 in
- Depth:
- 30 in
- Height:
- 55-1/2 in
- Weight:
- 155 lbs
- Fan Diameter:
- 48 in
- Assembly Required:
- No
- Max Ambient Temperature:
- 100 °F
- Number of Speeds:
- 1
- Fan Type:
- Industrial
- Number of Blades:
- 4
- Motor Type:
- Explosion Proof - Class 1, Group D &
- Mounting Location:
- Free Standing
- Wattage:
- 1584 W
- Material:
- Polyethylene
- Phase:
- 1
- Blade Type:
- Aluminum
- Manufacturers Part Number:
- PB48BHL
- Brand:
- TPI
- Type:
- Drum Fan
- RPM:
- 390 rpm
- CFM:
- 14400 CFM
- Horsepower:
- 1 HP
- Color:
- Gray
- Amperage:
- 13.2 A
- Drive Type:
- Belt Drive
- Hertz:
- 60 Hz
- Voltage:
- 120 / 240 V
- Description:
- Industrial Drum Fan
- Oscillating/Non Oscillating:
- Non-Oscillating
- Package Quantity:
- 1
- Decibels:
- 73
- Package Size:
- Each
