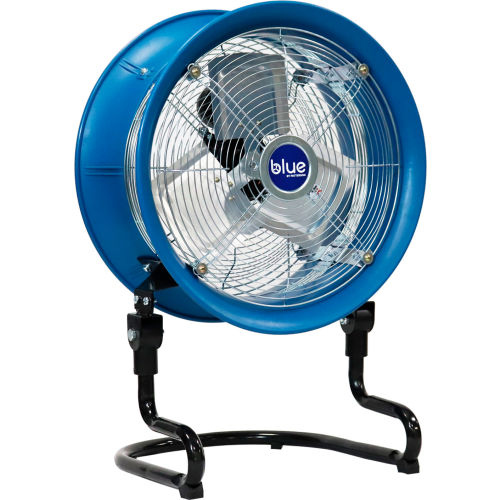

The Patterson Blue 1400 heavy‑duty floor fan is a 14-inch, non-oscillating industrial fan designed for portable use in residential and light commercial settings. It delivers robust air movement with a 1/8 HP direct-drive motor operating at 115V and 60 Hz, wired for a single phase supply. With a three‑speed control and a compact 21‑pound chassis, the unit offers flexible airflow options while remaining relatively easy to relocate around a shop, garage, basement, or kitchen workspace. The fan’s aluminum blades and high‑impact polypropylene components contribute to a sturdy, corrosion‑resistant build intended for continuous or intermittent operation in demanding environments.
Key construction details include a 14‑inch aluminum three‑blade propeller mounted behind finger guards that are UL507 and OSHA compliant, helping to protect users during routine maintenance or setup. The motor draws 0.8 amps and produces approximately 1,400 CFM nominally at full speed, with a durable polypropylene inlet/outlet and a six‑foot power cord to accommodate practical placement without excessive cord management. The unit is designed as a free‑standing floor model, allowing direct placement on floors in garages, workshops, or other open spaces.
This fan is sized and configured for portable air circulation where a wall outlet is accessible and floor space is available. It is described as a high-velocity, non-oscillating option suited for quickly moving air across a work area without needing permanent installation. For best results, consider the location’s airflow needs, ensure clear access to the cord and plug, and place the fan on a stable surface to maximize vibration resistance during operation.
Features:
- 14" aluminum three-blade propeller
- Direct-drive motor, 1/8 HP, 0.8 A, 115 V, 3-speed
- High impact polypropylene inlet/outlet
- UL507 and OSHA compliant finger guards (zinc plated)
- 6 ft power cord
- Free-standing floor fan, non-oscillating
- Rated 1400 CFM
- Width:
- 20 in
- Depth:
- 9-5/16 in
- Height:
- 29 in
- Weight:
- 21 lbs
- Cord Length:
- 6 ft
- Fan Diameter:
- 14 in
- Assembly Required:
- Yes
- Fan Type:
- Industrial
- Number of Speeds:
- 3
- Number of Blades:
- 3
- Motor Type:
- Direct Drive
- Mounting Location:
- Free Standing
- Material:
- Polypropylene
- Phase:
- 1
- Blade Type:
- Aluminum
- Manufacturers Part Number:
- BLUE 1400
- Brand:
- Blue By Patterson
- Type:
- Floor Fan
- CFM:
- 1400 CFM
- Horsepower:
- 1/8 HP
- Color:
- Blue
- Drive Type:
- Direct Drive
- Amperage:
- 0.8 A
- Hertz:
- 60 Hz
- Voltage:
- 115 V
- Package Quantity:
- 1
- Description:
- High Velocity Floor Fan
- Oscillating/Non Oscillating:
- Non Oscillating
- Decibels:
- 67
- Package Size:
- Each
