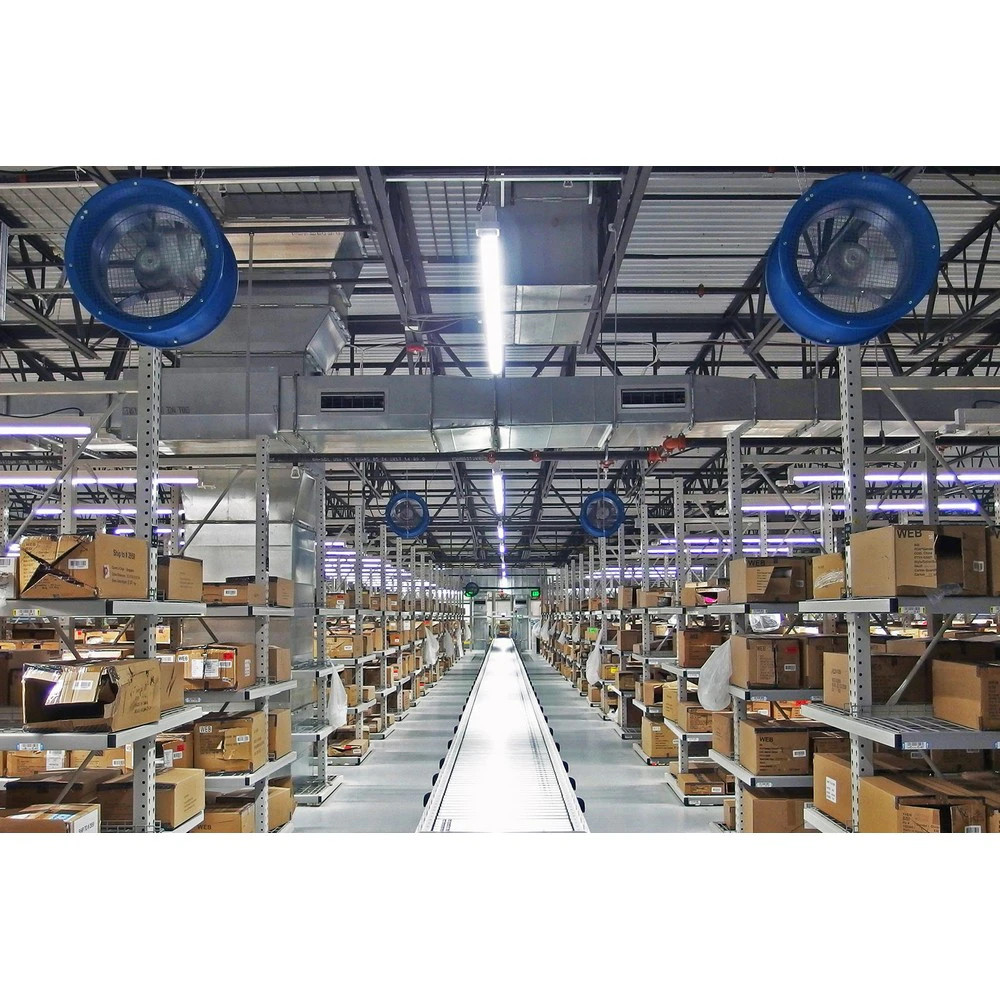

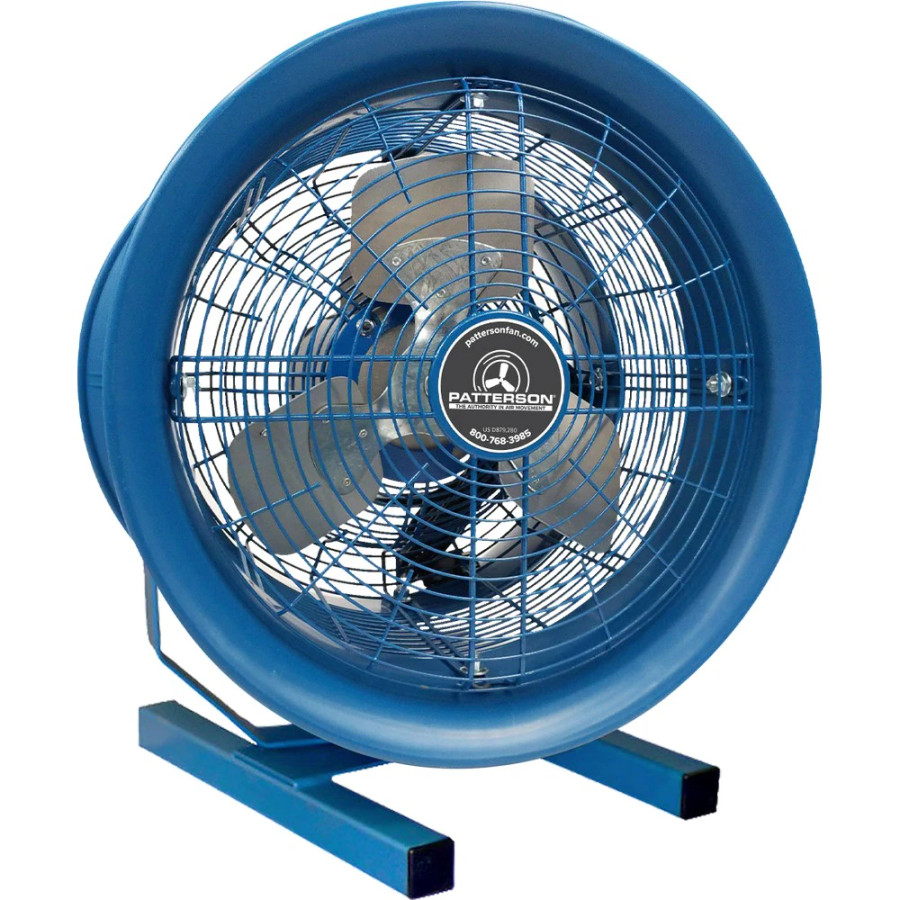

The Patterson Fan PB14A is a high-velocity, pedestal-mounted workstation fan designed to move air across large factory or warehouse spaces. Its 14-inch, three-blade propeller is driven by a direct-drive, maintenance-free motor with sealed bearings, helping deliver strong airflow without frequent servicing. Construction blends a high-impact polypropylene (HIPP) housing with heavy-gauge steel components, and a patented Venturi-designed barrel with side air intakes to project and entrain air over distances, making it suitable for cooling workers at workstations, improving ventilation in aisles, and supporting airflow around pick modules and shipping zones.
This unit features multiple voltage options (115V–460V) and a 12-foot power cord on the 115V configuration, giving flexibility for placement within a facility. The PB14A includes OSHA-compliant steel finger guards for safety, and it offers varied installation and operation through eight mounting options and optional oscillator kits, which can tailor airflow distribution to the workspace. With a reported 1/4 HP capacity and a rated CFM around 2600, the fan is capable of moving a substantial volume of air while maintaining a reasonable noise profile for workplace environments (63.1 dB at 20 feet, 73.1 dB at 3 feet).
Designed for durable, long-term service in industrial settings, this fan aims to improve employee comfort and condensation control while contributing to a healthier and more productive workspace. When selecting this model, consider the need for appropriate mounting, voltage compatibility, and any desired accessories such as oscillation kits to optimize air movement for your specific layout.
Features:
- 14" diameter, 3-blade galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel frame
- Patented Venturi-designed barrels for efficient airflow
- Side air intakes for improved ventilation
- Maintenance-free, direct-drive motor with sealed bearings
- Multiple voltages: 115V–460V
- Optional oscillator kit available
- OSHA-compliant steel finger guards
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
