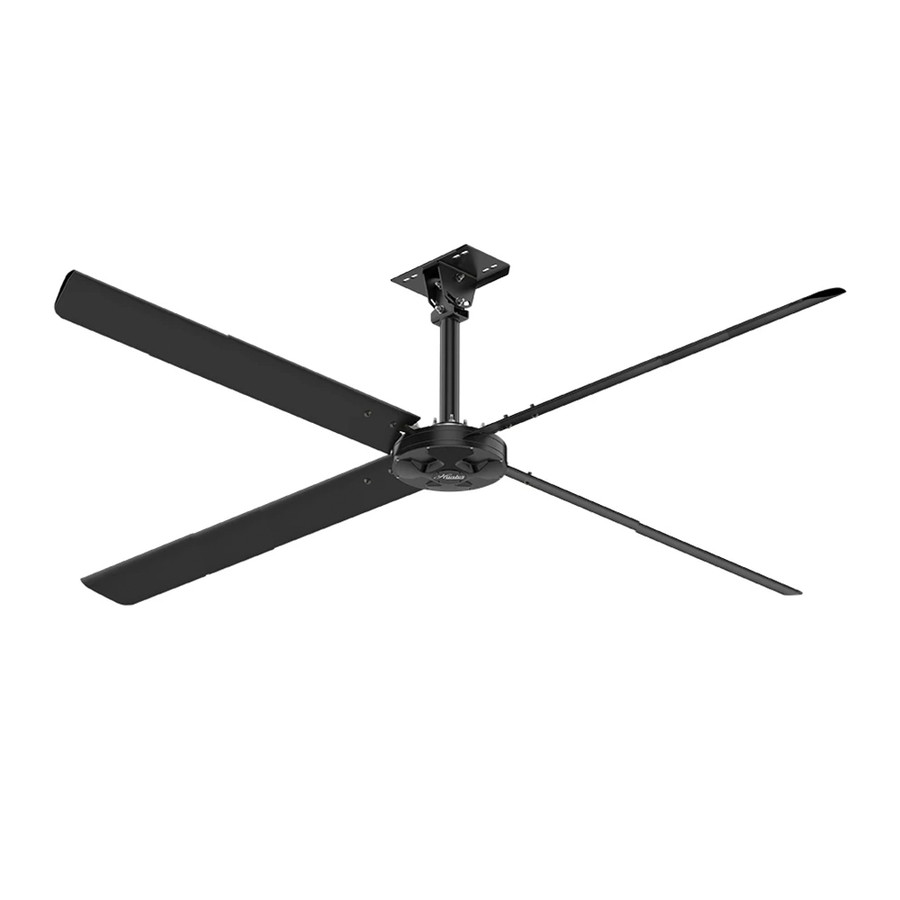

The Hunter XP 10' HVLS Ceiling Fan is designed to improve air movement and occupant comfort in commercial and industrial spaces. This 10-foot diameter ceiling fan uses a direct-drive motor for low maintenance and reliable performance, delivering a gentle, consistent breeze that helps reduce hot spots and can contribute to year-round energy savings by enhancing HVAC efficiency. The configuration includes a 2-foot rigid downrod to suit standard ceiling heights and spaces that require high-volume airflow without the complexity of larger industrial systems.

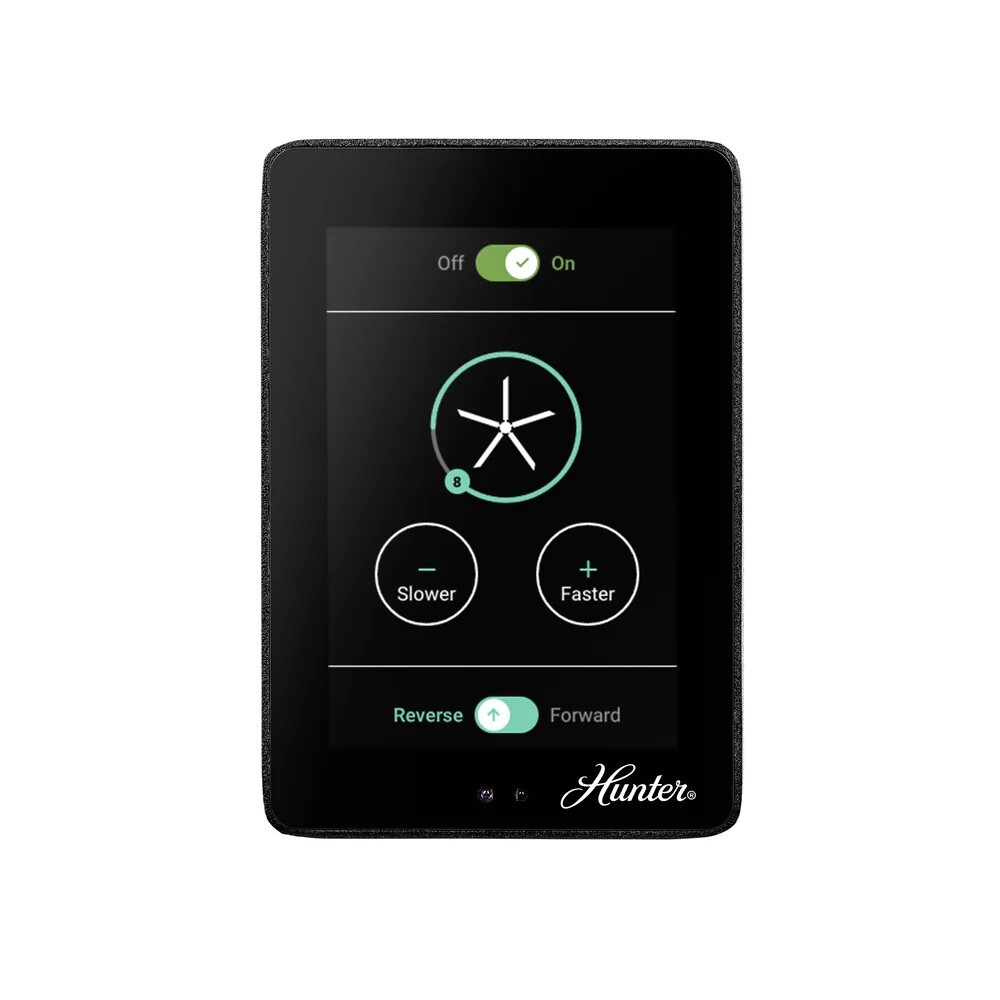

Key construction and features include an industrial-grade direct-drive motor and a configuration that supports quiet operation in occupied spaces. The system is designed for easy integration with standard 120V single-phase power, minimizing electrical modifications and enabling straightforward installation within existing facilities. The included Hunter 350 Series touchscreen controller provides variable-speed control, allowing precise adjustment to match seasonal needs and occupancy conditions. Additional safety and reliability are addressed with redundant safety features and the potential for Building Management System (BMS) integration, contributing to dependable operation in demanding environments.
This XP 10 model is suitable for warehouses, manufacturing floors, automotive service areas, gymnasiums, retail spaces, event venues, agricultural buildings, and other environments requiring wide-area air circulation. With a maximum RPM and spec-documented coverage, it offers scalable comfort across spaces up to several thousand square feet, depending on layout and existing HVAC strategy. Proper sizing, downrod length, and controller configuration are important to achieve the desired airflow pattern and energy impact, while maintenance considerations center on motor longevity and controller servicing through standard electrical and control channels.
Features:
- 10-foot diameter HVLS ceiling fan
- Includes 2-foot rigid downrod
- Direct-drive motor with low maintenance
- Operates on 120V single-phase power
- Variable-speed control with Hunter 350 touchscreen controller
- Redundant safety systems
- BMS integration available
- Size:
- 10 ft Diameter
- Number of Blades:
- 4
- Industrial Spacing:
- 40 ft
- Max Effective Area:
- 2,500 ft²
- Max RPM:
- 139 RPM
- Hanging Weight:
- 108 lbs
- Motor:
- 1.0 HP
- Power Source:
- AC 1PH 100-120V 50-60HZ
- Package Size:
- Each
